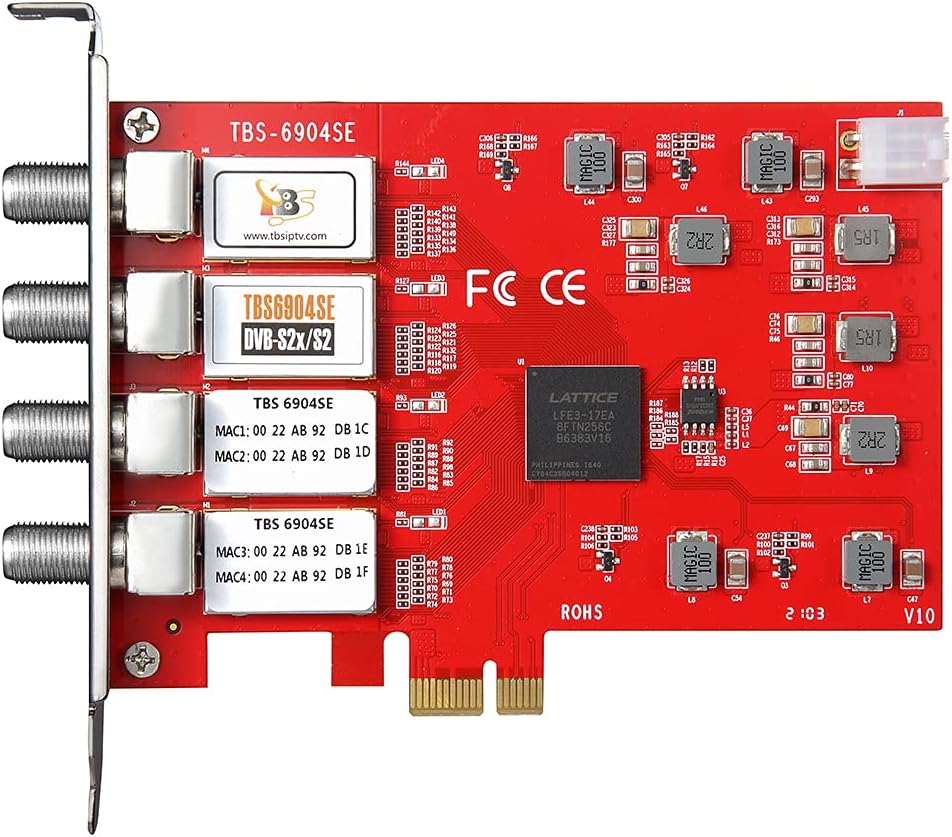

TBS 6904SE DVB-S2 / S / S2X Quad Tuner PCIe Card - Four Channel

In this review of the TBS 6904SE Quad Tuner PCIe card, the bottom line is simple: it is for users who need simultaneous live viewing and multichannel recording from satellite feeds on a single PC. The card's single biggest reason to buy is its four independent DVB-S2/S/S2X tuners that let one tuner handle live watching while the other three record different transponders. For anyone running a home media PC, small broadcast workflow, or a satellite data download setup, this card brings professional-level reception, VCM support, and fast scanning into a modest PCI Express form factor.

Key Features

• Quad Tuner: Four advanced DVB-S2/S/S2X tuners enable watching one channel while recording three others from different satellite transponders at the same time.
• VCM and Multistream: Support for VCM and multi stream reception makes it suitable for industrial or professional monitoring and specialized broadcast workflows.
• FTA Watching and Recording: The card is designed to receive Free to Air satellite TV and radio programs for watching or archiving on a PC without additional decryption hardware.
• PCI Express Interface: A PCI-express connection ensures compatibility with x1, x4, x8, or x16 slots and provides the bandwidth needed for multiple concurrent streams.
• High Symbol Rate Range: Wide symbol rate support from 1 to 45 Msps and support for multiple modulation schemes improves compatibility with a broad range of satellite transponders and S2X modes.

Who It's For

The TBS 6904SE is aimed at satellite enthusiasts, hobbyist PVR builders, and small broadcasters who need to record multiple FTA channels or capture data from different transponders simultaneously. It is also useful for users who require VCM support or who work with S2X signals and industrial-grade reception.

It is less suited to casual users who only want to watch a single channel occasionally or those who need integrated software bundles; buyers should be comfortable installing a PCIe card and configuring satellite scans on Windows or Linux systems.

Pros & Cons

Pros

• Four independent tuners let users watch one channel while recording three others, improving recording flexibility.
• VCM and multi stream support makes the card appropriate for professional or industrial applications that use advanced modulation schemes.
• Broad modulation support including DVB-S2 and S2X modes increases compatibility with modern satellite transmissions.

Cons

• Requires a free PCI Express slot and some setup on Windows or Linux, so it is not plug-and-play for novice users.

Specifications

Connection	PCI-express (x1/x4/x8/x16 compatible)
RF Inputs	4x RF in DVB-S/S2
Modulation Support	QPSK, 8PSK, 16APSK, 32APSK and DVB-S2X modes
Symbol Rate	1 ~ 45 Msps
VCM	Yes
Power Consumption	Input power 8 ~ 12 W
System Requirements	Windows XP/Vista/7/8/10 or Linux

Our Verdict

The TBS 6904SE is a solid choice for anyone building a satellite PVR or small ingest station because of its four simultaneous tuners, broad modulation support, and VCM capability. It delivers strong value for users who need multichannel recording and S2X compatibility, provided they are comfortable installing a PCIe card and configuring satellite reception on Windows or Linux.

Frequently Asked Questions

Can this card record multiple channels at once?
Yes, the four independent tuners allow watching one channel while recording up to three different channels from other transponders simultaneously.

Does it work with modern DVB-S2X signals?
Yes, the card supports DVB-S2 and S2X modulation modes including multiple APSK and S2-MODCODs.

Which operating systems are supported?
Drivers and operation are available for Windows (XP through 10) and Linux systems with a PCI Express slot.
