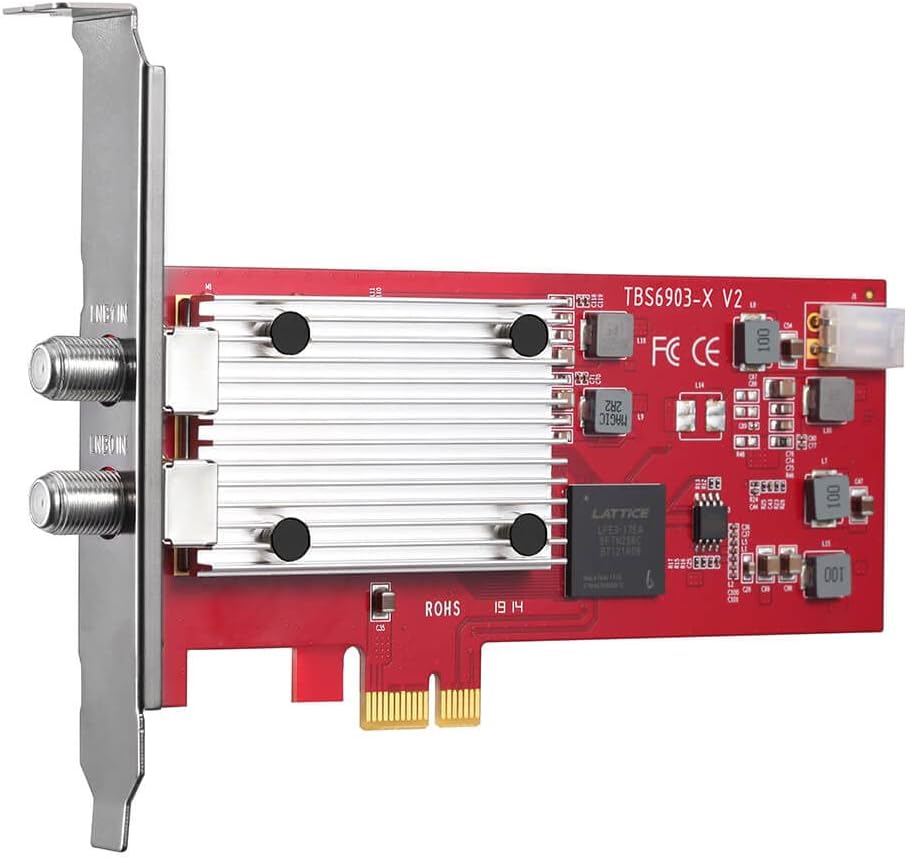

TBS6903X DVB-S2 S2X Dual Tuner PCIe Satellite TV Card - Professional

In this review the TBS6903X is evaluated as a specialist internal satellite TV tuner aimed at technical users who need advanced stream capture and simultaneous recording. The bottom line: the card is for broadcasters, monitoring stations, and power users who require professional DVB-S2/S2X features such as CCM, ACM, VCM and 16APSK/32APSK support that ordinary consumer tuners do not handle. Setup and use require some familiarity with PC tuner drivers and dedicated TBS tools, but the card delivers on flexibility and dual-tuner convenience for recording and monitoring multiple transponders.

Key Features

• Dual DVB-S2/S2X Tuners: Two independent tuners let you watch one transponder while recording another, increasing multitasking and monitoring capability on a single PC.
• Advanced Modulation Support: Support for QPSK, 8PSK, 16APSK and 32APSK enables reception of nonstandard and high-order modulations used in professional broadcasts.
• Special Stream Modes: CCM, ACM, VCM and Generic Stream Mode handling makes the card suitable for capturing special streams that most consumer devices cannot decode.
• Wide Tuning Range: 950 to 2150 MHz receiving range covers standard L-band outputs from dish LNBs, so it works with conventional satellite setups.
• PCI Express Compatibility: Works in x1, x4, x8 or x16 PCIe slots and consumes up to 20W, offering flexible installation across common desktop systems.
• Utility and Data Use: With blind scan, EPG and Unicable compatibility, the card is useful for both TV viewing and data/monitoring applications.

Who It's For

The TBS6903X is ideal for engineers, satellite installers, broadcasters and advanced hobbyists who need to capture or monitor special stream types and higher-order modulations. Anyone running a monitoring workstation or a PC-based headend who must receive multiple transponders simultaneously will benefit from the dual-tuner design.

It is not suited for casual TV viewers who want plug-and-play simplicity; typical consumer USB or set-top satellite receivers are simpler to use. Users unfamiliar with driver installation, Linux utilities or the dedicated TBS tools should be prepared for a learning curve.

Pros & Cons

Pros

• Supports professional stream modes like CCM, ACM and VCM that many devices cannot handle.
• Dual tuners allow concurrent watching and recording from different transponders for greater workflow flexibility.
• Broad modulation support including 16APSK and 32APSK for advanced broadcasts.

Cons

• Requires technical setup and familiarity with drivers and TBS tools, so not ideal for nontechnical users.
• Power consumption up to 20W and internal PCIe installation mean it is less convenient than external USB tuners for portable use.

Specifications

Our Verdict

The TBS6903X is a strong choice for professional and technical users who need advanced satellite reception and capture capabilities at the card level. Its support for specialized stream modes and higher-order modulations, combined with dual tuners, makes it excellent value for monitoring, data reception and multi-transponder recording tasks despite the technical setup required.

Frequently Asked Questions

Can this card record from two different transponders at once?
Yes. The dual DVB-S2/S2X tuners let you watch one transponder while recording another simultaneously.

Does it support Unicable and blind scan?
Yes. The card is Unicable/one cable compatible and supports blind scan functions for channel discovery.

Which operating systems work with the card?
Drivers and tools are available for Windows XP through Windows 10 and for Linux, but some features require the dedicated TBS utilities.
