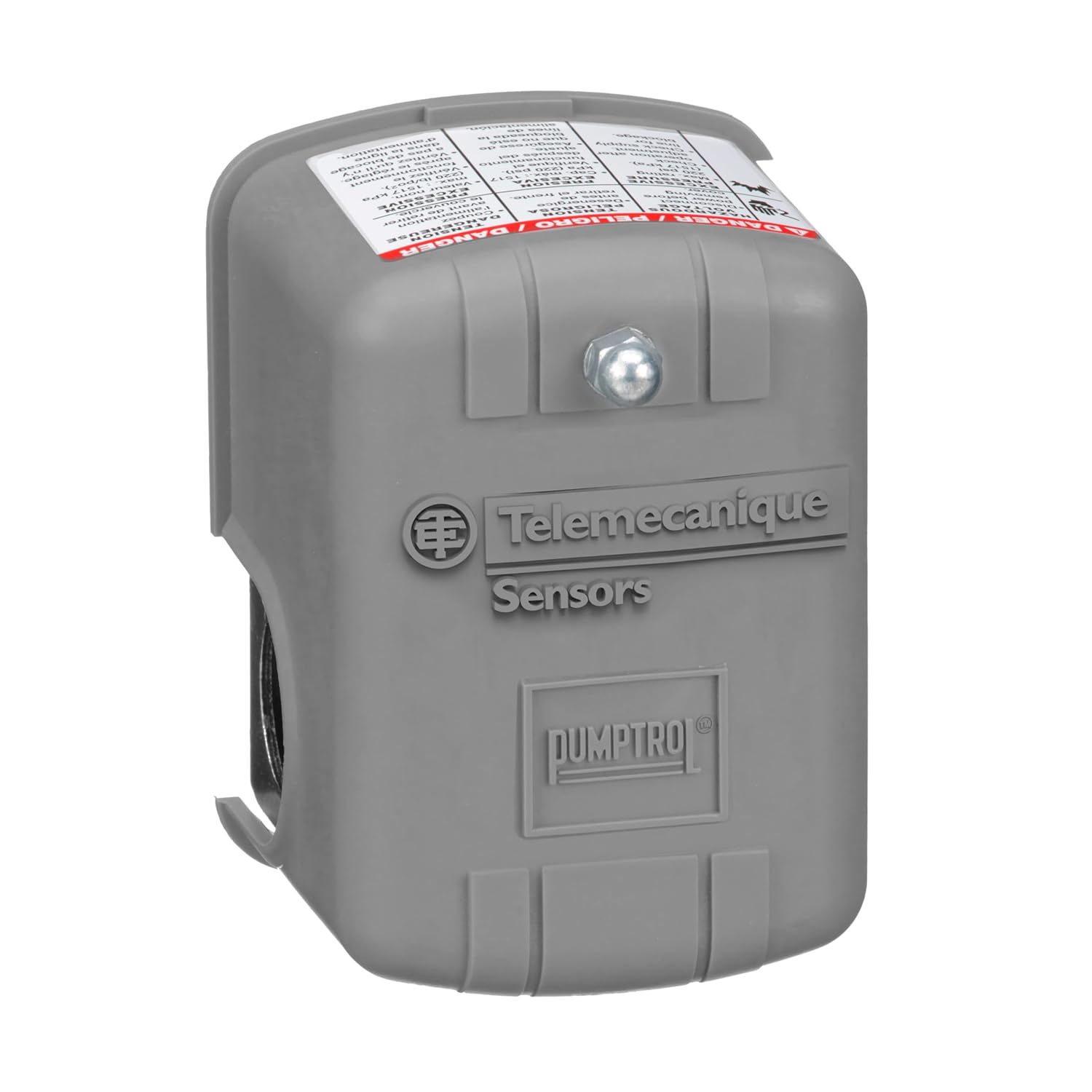

Air-Compressor Pressure Switch 175 psi Set-Off, 40 psi Differential

In this review of the Air-Compressor Pressure Switch, the reviewer finds it best suited for workshop and light industrial users who need a straightforward, low HP control for air or water systems. The single biggest reason to buy is its reliable mechanical design: a diaphragm actuator with a fixed differential and screw clamp terminals that make installation and repeatable pressure cut-out at 175 psi simple and dependable for motors and compressors. This review examines build, features, and practical use so you can decide if it fits your compressor maintenance setup.

Key Features

• 175 psi set-off: Provides a clear, factory-set cut-out at 175 psi so compressors stop at a predictable pressure to protect the system.
• 40 psi fixed differential: Supplies a consistent off-to-on gap so the restart pressure is about 40 psi below the cut-out, reducing guesswork when adjusting cycles.
• DPST-DB contacts: Two normally closed, snap-action contacts give reliable electrical control for motors with double-break switching for improved contact life.
• 1/4 in NPT external port: Standard fluid connection makes plumbing to compressors or water lines straightforward without adapters in many setups.
• Diaphragm actuator and polypropylene enclosure: A diaphragm actuator that can be mounted in any position and a corrosion-resistant enclosure for long service in workshop environments.
• Compact footprint: Small physical size and light package weight make it easy to integrate into existing compressor control assemblies.

Who It's For

The switch is ideal for hobbyist mechanics, small shop owners, and maintenance techs who need a dependable pressure control for small air compressors or water pressure systems. Its low HP rating and simple mechanical design suit systems where rugged, repeatable switching is more important than electronic features.

Those needing microprocessor control, adjustable electronic differentials, or factory presets outside the 100 to 200 psi rising range should look elsewhere. Also, larger industrial compressors with higher electrical load requirements will need a switch rated for higher HP or additional contactors.

Pros & Cons

Pros

• Solid mechanical design with a diaphragm actuator for reliable operation in any position.
• Clear pressure settings with 175 psi set-off and about 40 psi fixed differential for predictable cycling.
• Standard 1/4 in NPT external fluid connection and screw clamp terminals simplify installation.
• Compact size and light weight make retrofit straightforward in tight control boxes.

Cons

• The switch has a fixed mechanical differential and limited adjustability compared to electronic controllers.
• Not intended for high HP motor switching without additional contactors or relays.

Specifications

Our Verdict

The Air-Compressor Pressure Switch is a sensible choice for small shops and DIYers who want a dependable mechanical pressure control with a 175 psi cut-out and a fixed 40 psi differential. It is good value when you need straightforward, repeatable switching without electronic complexity, provided the motor load is within the switch's low HP capability or an external contactor is used.

Frequently Asked Questions

Can this switch be used for water systems?
Yes, the switch is suitable for water or air applications as it is part of a NEMA pressure switch range designed for both media.

What connection type does it use?
It uses a 1/4 in NPT external fluid connection and screw clamp terminals for electrical wiring.

Is the differential adjustable?
The unit has an approximate fixed differential of 40 psi; the rising pressure set range is 100 psi to 200 psi but the differential itself is not freely adjustable.
