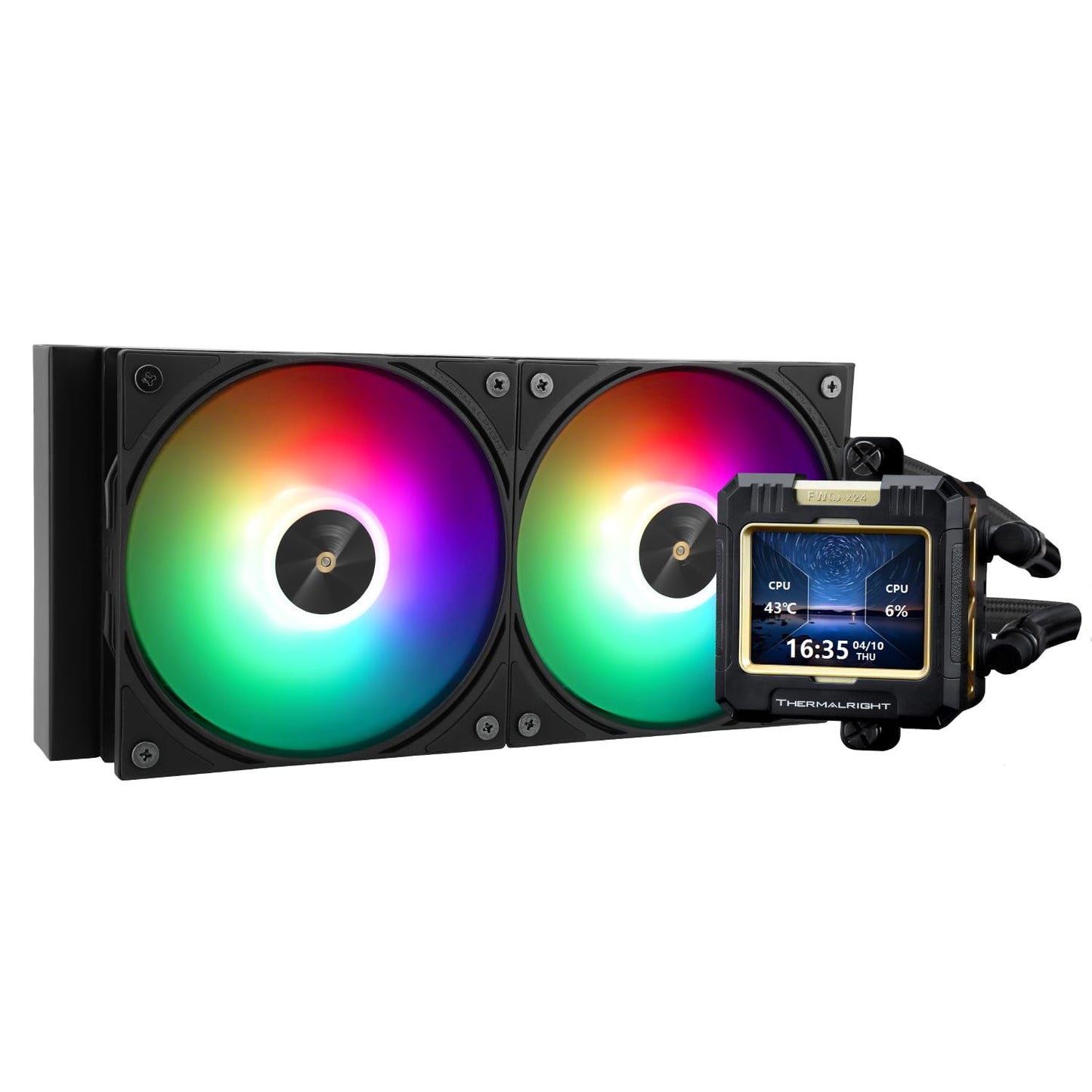

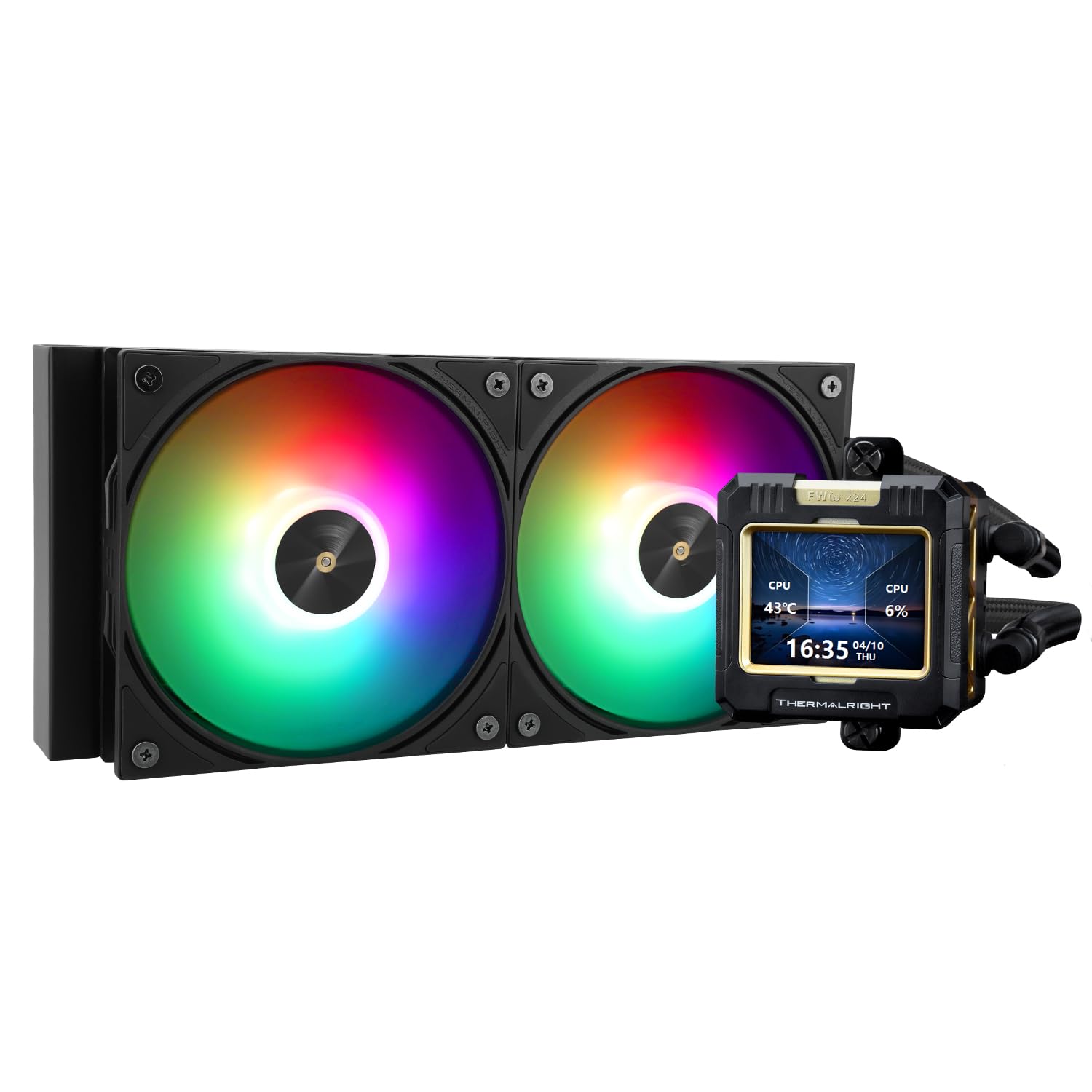

Thermalright FW 240 Black ARGB AIO CPU Liquid Cooler - IPS LCD Display

In this review the Thermalright FW 240 Black ARGB AIO CPU Liquid Cooler is evaluated for enthusiasts who want a compact 240mm all-in-one cooler with a customizable display. The single biggest reason to buy is the integrated IPS LCD pump head that supports static and dynamic images, offering visual customization while the system maintains strong thermal performance. The cooler targets builders who want both sensible cooling and a personalized look, combining a 277 x 120 x 52mm radiator, dual high-speed fans and a quiet 3000 RPM pump into a single package.

Key Features

• 277 x 120 x 52mm radiator: Provides a standard 240mm cooling surface that removes heat quickly when paired with the included high-speed fans.
• IPS LCD pump head: A 2.4 in IPS screen with 320 x 240 resolution supports static and dynamic image customization for system personalization.
• 3000 RPM pump (low noise): The pump runs at high speed for strong heat transfer while operating quietly at about 23 dBA.
• Synchronized 5V 3-pin ARGB: Fans support motherboard ARGB synchronization so lighting matches other components in the loop.
• High airflow TL-P12-S fans: Fans use S-FDB bearings and a noise-optimized blade design, delivering up to 2000 RPM to move heat off the radiator efficiently.
• Wide socket compatibility: Mounting hardware covers AM4/AM5 and Intel LGA platforms including LGA1700/1851 for broad CPU support.

Who It's For

The FW 240 is best for PC builders who want a balance of performance and visual flair: gamers, content creators, and hobbyist modders who will use the IPS screen and ARGB to personalize a system. Buyers who value a quieter pump and strong radiator performance in a 240mm format will find it practical for mid-sized cases.

It is not aimed at users who need extreme overclocking headroom that larger 360mm radiators provide, nor at absolute budget buyers who prioritize the lowest possible cost over features such as the LCD screen and ARGB lighting.

Pros & Cons

Pros

• Effective cooling for a 240mm AIO, especially with the high-speed TL-P12-S fans.
• Customizable IPS LCD pump head offers unique visual personalization not common in this class.
• Low audible pump noise around 23 dBA while maintaining high water flow at 3000 RPM.
• Broad socket compatibility and easy pre-installed fan mounting make installation straightforward.

Cons

• 240mm radiator limits peak thermal capacity versus 360mm solutions for heavy overclocking.
• LCD features require a motherboard USB 9-pin header and 5V ARGB connector for full functionality, which some older boards may lack.

Specifications

Radiator size	277 x 120 x 52 mm
Cold head dimensions	69.2 x 69.2 x 60 mm
Pump speed	3000 RPM 10%
Operating noise	Approx. 23 dBA
Fan max speed	Up to 2000 RPM
LCD	2.4 in IPS, 320 x 240 resolution
ARGB	5V 3-pin ARGB sync

Our Verdict

The Thermalright FW 240 Black ARGB AIO is a strong choice for builders who want a reliable 240mm cooler with eye-catching customization. It pairs effective heat removal and quiet pump operation with an IPS LCD and synchronized ARGB, delivering good value for users who care about both cooling and presentation. For those requiring the absolute maximum cooling margin, a larger radiator would be a better fit.

Frequently Asked Questions

Does the LCD require software?
The LCD screen uses a USB 9-pin connection for power and data, and the software is available from Thermalright's official site to upload images and configure display options.

What motherboard headers are needed?
The cooler requires a USB 9-pin header for the LCD and a 5V 3-pin ARGB header for lighting synchronization on the motherboard.

Is it compatible with modern AMD and Intel sockets?
Yes, the kit includes mounting hardware for AM4/AM5 and Intel LGA115x/1200/1700/1851/2011/2066 platforms as noted in the product documentation.
