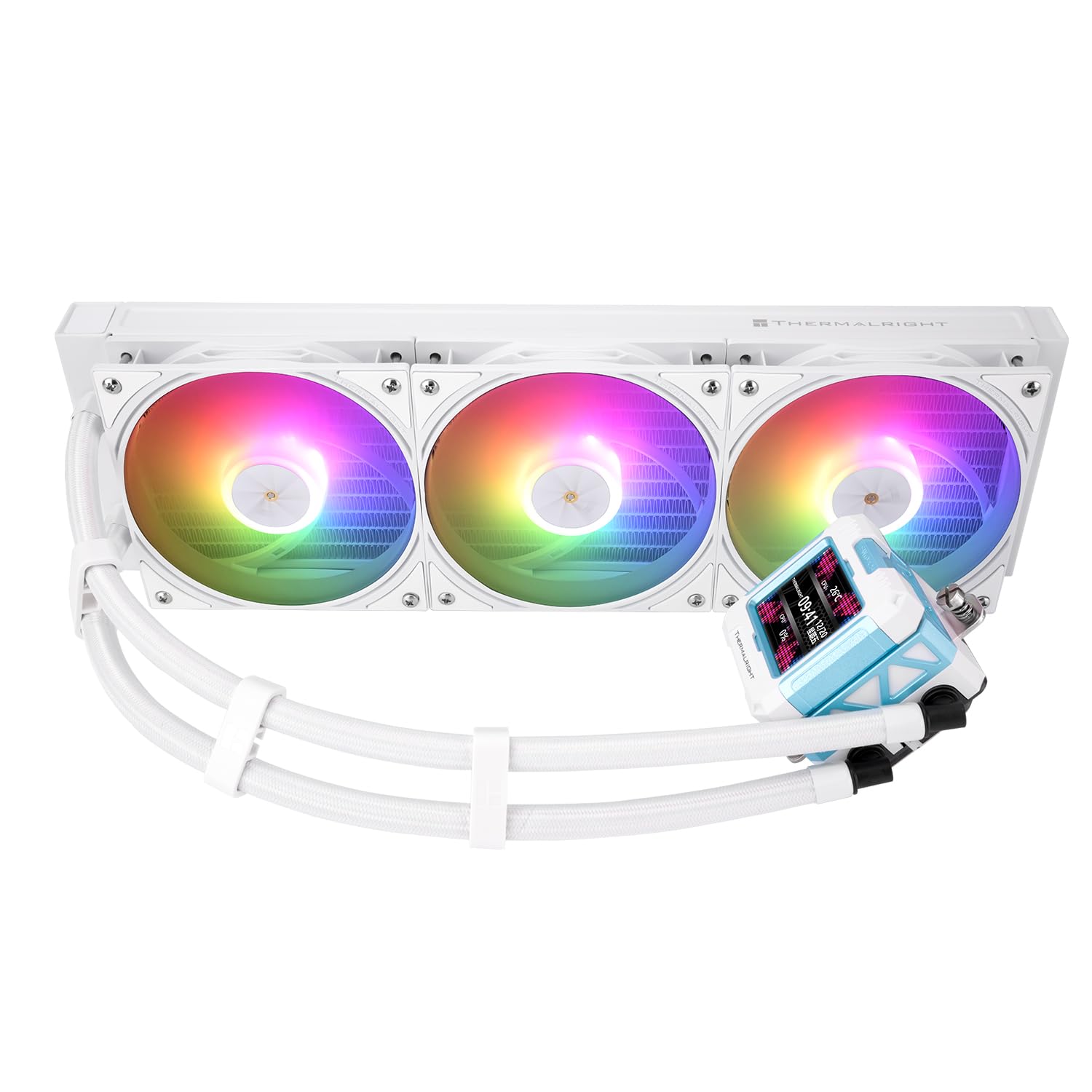

Thermalright FW360 ARGB BW-360mm AIO CPU Liquid Cooler - IPS LCD Pump

In this review the Thermalright FW360 ARGB BW-360mm AIO is evaluated for PC builders who want a 360mm liquid cooler with a customizable display and ARGB lighting. The single biggest reason to consider it is the removable 2.4 in IPS LCD integrated into the pump, which lets users display images and monitor CPU temperature while retaining a full-length 397x120x52mm radiator and quiet operation. The unit is aimed at builders who want strong cooling headroom combined with visual customization without stepping up to a custom loop.

Key Features

• 360mm radiator: A full 397x120x52mm aluminum fin radiator offers broad surface area for sustained cooling under load.
• IPS LCD pump: The detachable 2.4 in square IPS screen supports JPG, PNG and GIF and can show system info or custom images for added personalization.
• Quiet operation: The pump and standard 120mm PWM air pressure fans are designed to run with low noise, listed around 23dBA for unobtrusive operation.
• ARGB lighting: 5V 3pin ARGB synchronization provides soft, addressable lighting effects when connected to a compatible motherboard header.
• Cross-platform mount: Includes mounting fasteners for AMD AM4/AM5 and Intel LGA115x, 1200, 2011, 2066, 1700 and 1851 sockets for wide compatibility.

Who It's For

This cooler is a good fit for PC enthusiasts building mid-to-high-end gaming or workstation systems that benefit from a 360mm radiator and want visual flair from a customizable pump display and ARGB lighting. It is especially appealing to builders who value lower operating noise and easy installation with provided mounting hardware.

Users who need absolute top-tier thermal performance for extreme overclocking or who prefer a fully modular custom loop may look elsewhere; similarly, systems that cannot fit a 360mm radiator or lack a 5V 3pin ARGB header will not be able to use all features.

Pros & Cons

Pros

• Effective cooling with a large 360mm radiator that keeps CPU temps low under typical loads.
• Customizable 2.4 in IPS LCD pump adds monitoring and personalization without extra accessories.
• ARGB synchronization offers attractive lighting when paired with a compatible motherboard.
• Generally quiet operation praised by users, making it suitable for noise-sensitive builds.

Cons

• Software for the LCD and pump is reported mixed in quality by some users, which may complicate custom image setup.
• Requires a 5V 3pin ARGB header to use lighting synchronization; otherwise lighting features are limited.

Specifications

Radiator size	397 x 120 x 52 mm
Cold head dimensions	69.2 x 69.2 x 60 mm
Screen	2.4 in IPS LCD, 320 x 240 resolution, JPG/PNG/GIF support
Voltage	DC 12V
Operating noise	Approximately 23 dBA
ARGB connector	5V 3pin ARGB
Socket compatibility	AMD AM4/AM5; Intel LGA1150/1151/1155/1156/1200/2011/2066/1700/1851

Our Verdict

The Thermalright FW360 ARGB BW is a strong choice for builders who want a 360mm AIO with an integrated IPS LCD pump and addressable lighting at a sensible price. It combines broad radiator area and quiet operation with pleasing visual options, making it good value for gamers and content creators who want both cooling headroom and customization without a custom loop.

Frequently Asked Questions

Does the LCD display system stats?
The pump supports system screen projection via software and can display CPU temperature and images, though software quality has mixed reports.

Will the ARGB work on any motherboard?
The ARGB requires a 5V 3pin header; without that header the lighting synchronization feature will not function.

Is this compatible with modern Intel and AMD sockets?
Yes, it ships with mounting hardware for AMD AM4/AM5 and a wide range of Intel sockets including LGA1700 and LGA1851.
