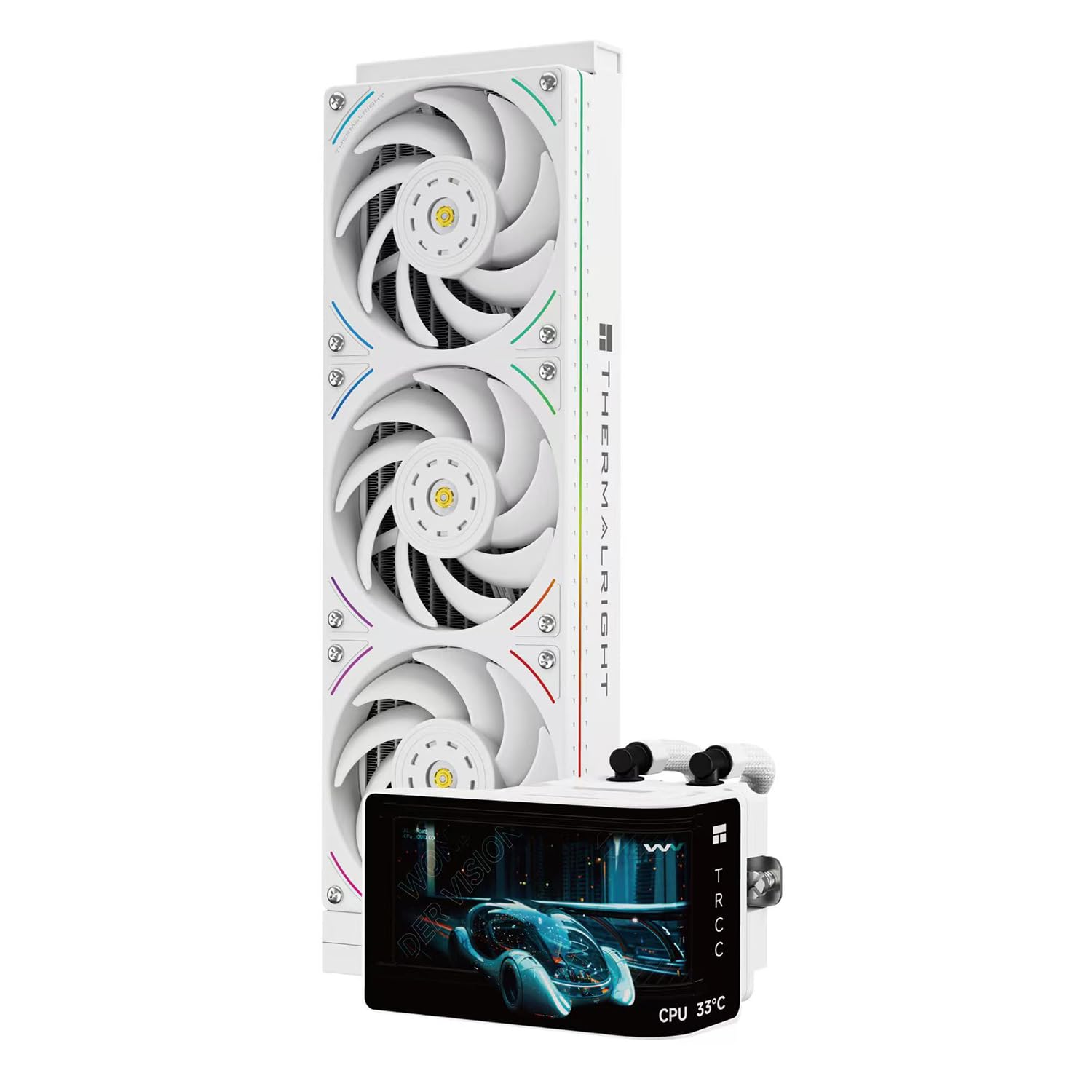

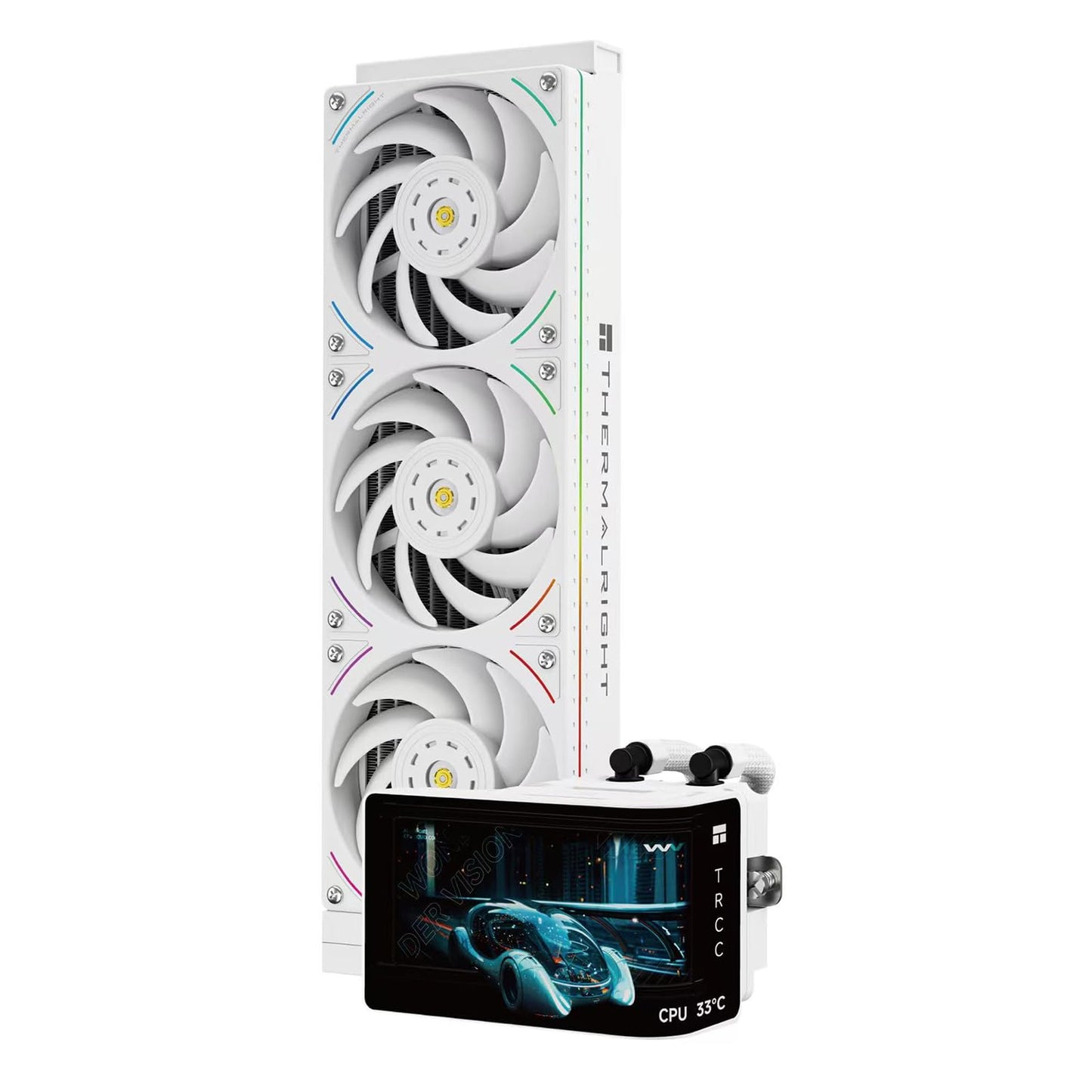

Thermalright Wonder Vision 360 UB ARGB White CPU AIO Cooler - 6.67in

In this review the Thermalright Wonder Vision 360 UB is examined as a high-end all-in-one CPU cooler that combines strong thermal performance with a striking 6.67in curved 3D AMOLED screen. The bottom line: this unit is best for builders who want effective 360mm liquid cooling plus a customizable display on the pump head; the built-in screen and TRCC software are the single biggest reason to choose it for a showcase or workstation build. Installation requires attention to wiring and platform backplates, but when set up it delivers consistent cooling and an eye-catching visual upgrade.

Key Features

• 360mm Radiator: The 403x120x52mm radiator paired with three 2150RPM fans provides sustained heat dissipation for high TDP CPUs under load.
• High-speed Pump: A compact 120.1x80x107mm pump head runs at about 6400RPM to maintain coolant flow and steady thermal transfer.
• 6.67in 3D Curved Screen: The 2400x1080 2K 60Hz AMOLED curved display produces vivid colors and good viewing stability for 2D or 3D visuals on the cold head.
• Free DIY Theme Support: TRCC software allows custom static and dynamic themes, monitoring readouts and text, making system status visible at a glance.
• Wide Platform Compatibility: Supports modern Intel sockets including LGA 1700/1851 and AMD AM4/AM5 with supplied metal buckles for conventional installations.
• Easy Maintenance Tip: The magnetic-suction cold head is designed for straightforward removal for screen access and servicing.

Who It's For

This cooler is aimed at PC enthusiasts and content creators who want both performance cooling and a visual focal point inside a side-window case. Builders who run high-frequency CPUs and want strong airflow and a 360mm radiator will appreciate the combination of three high-speed fans and a fast pump.

It is less suitable for very compact cases that cannot fit a 360mm radiator, and users who prefer plug-and-play RGB without installing TRCC software or managing a 9-pin USB connection may find the screen features unnecessary. AMD platform installers should note the requirement to use the motherboard backplate when fitting on AM4/AM5.

Pros & Cons

Pros

• Excellent cooling capacity from a full 360mm radiator with high-speed fans for sustained thermal control.
• Unique 6.67in curved AMOLED screen that supports 2D and 3D visuals and custom themes for system monitoring.
• Robust pump speed and compact cold head design that preserve flow and allow magnetic removal for access.
• Broad socket support including recent Intel and AMD platforms with all-metal mounting buckles.

Cons

• Screen features require TRCC software and a 9-pin USB header; setup is slightly more involved than a standard AIO.
• 360mm radiator size limits compatibility with smaller cases and requires space planning before purchase.

Specifications

Radiator size	403 x 120 x 52 mm
Cold head size	120.1 x 80 x 107 mm
Pump speed	About 6400 RPM
Fan speed	Up to 2150 RPM (3 fans)
Screen	6.67in curved 2K AMOLED, 2400 x 1080, 60 Hz
Voltage / Power	DC 12V (pump)
Socket compatibility	Intel LGA 1150/1151/1155/1156/1200/1700/1851/2011/2066; AMD AM4/AM5

Our Verdict

The Wonder Vision 360 UB is a compelling choice for system builders who want real 360mm cooling performance plus a customizable 3D AMOLED display on the pump head. It adds visual flair without compromising thermal efficiency, and with TRCC control it can show monitoring data and custom themes. For those with the chassis space and willingness to set up the USB-powered screen, it represents strong value as a performance-focused, feature-rich AIO.

Frequently Asked Questions

Does the curved screen need special power?
The screen uses a 9-pin USB interface from the motherboard and TRCC software to manage themes and display data.

Is this compatible with AM4 and AM5?
Yes, the cooler supports AM4 and AM5 but installation on AMD platforms requires the original motherboard backplate.

Can the cold head be removed easily?
The cold head uses magnetic suction for easy disassembly, which helps for maintenance and screen access.
