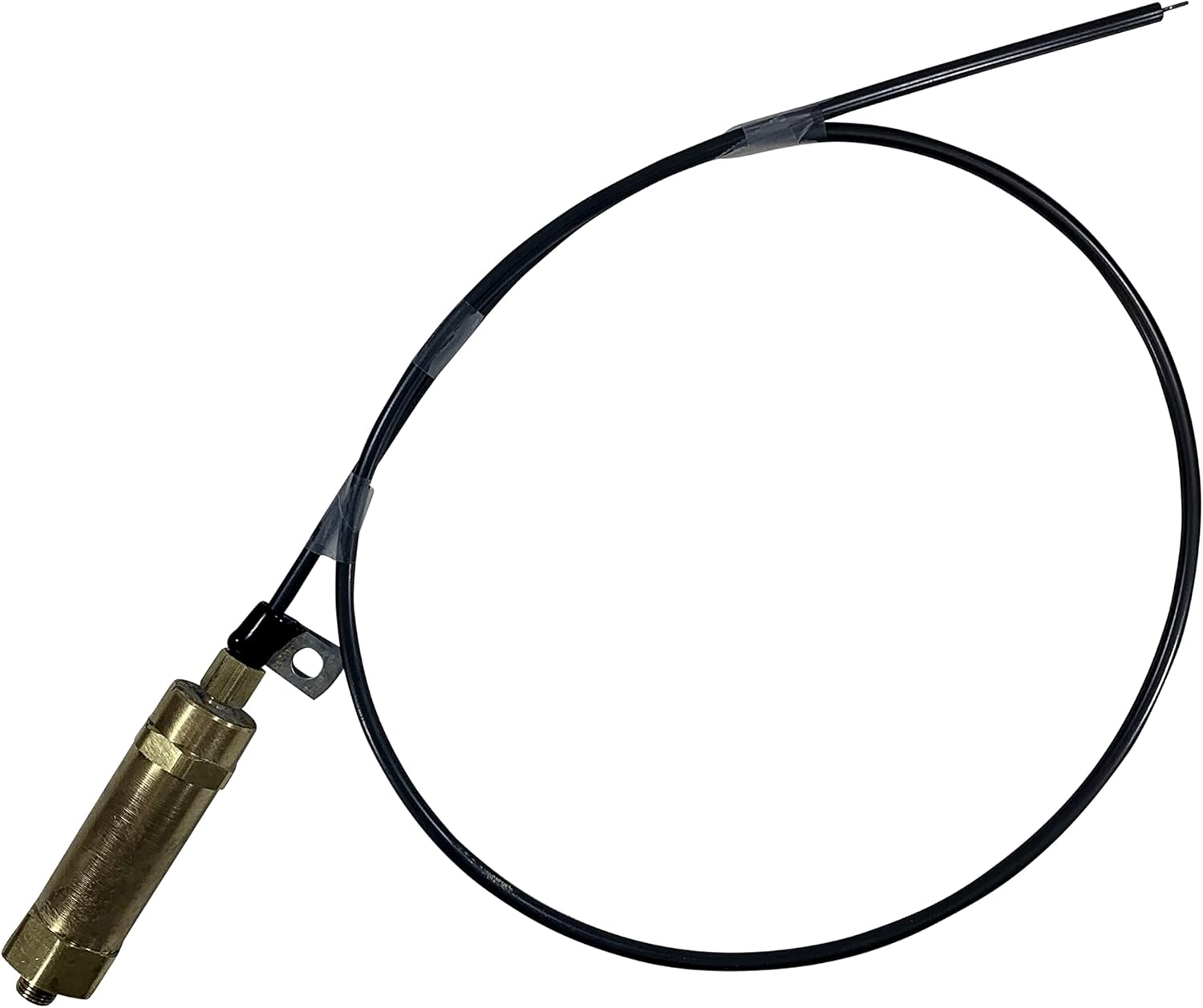

Throttle Control Mechanism Cable Whip Style for 8HP-13HP Engines

In this review of the Throttle Control Mechanism cable whip style, the bottom line is straightforward: this is a practical choice for owners of 8 HP to 13 HP gas engine air compressors who need a reliable, straightforward method to manage engine speed during load and unload cycles. The reviewer found the unit performs the core function well - converting a pneumatic signal from a pilot valve into a mechanical throttle action - and appreciated the clear fitment options and robust retracted spring force that make it suitable for continuous run compressor setups.

Key Features

• Cable style Throttle Control: The cable whip design gives a direct mechanical link from the unloader to the engine throttle arm for dependable actuation under load changes.
• 36' overall length option: The 36' OAL suits most 8 HP to 13 HP engines and simplifies selection when retrofitting common small industrial compressors.
• 1.00 in stroke length: A full inch of stroke provides measurable travel to reliably pull the throttle arm to an idle position when unloaded.
• Retracted spring force 16.89 LBF: The built-in spring force ensures the cable returns solidly to the run position when the pneumatic signal is released.
• 1/8' male NPT inlet: Standard pneumatic connection makes installation to pilot valve or unloader straightforward without custom fittings.
• Z Bend cable tip: The Z Bend end fits typical throttle outlets on pilot valves so the cable connects cleanly to the valve outlet.

Who It's For

The Throttle Control Mechanism is aimed at technicians and shop owners running gas engine-driven compressors in continuous service who want a simple, proven way to reduce engine speed at cut-out and restore it at cut-in. It is ideal for maintenance crews replacing worn or damaged throttle linkages or anyone retrofitting a pilot/unloader system to a small compressor.

This is not for users who need electronic governor control, remote telemetry, or variable-speed drive systems; for those advanced features an electronic solution or VFD-driven compressor would be a better match. Also, buyers should verify the correct HP and overall length variation before ordering to ensure a proper mechanical fit.

Pros & Cons

Pros

• Direct cable actuation gives reliable mechanical control tied to the pilot valve signal.
• 36' option and clear HP range make it easy to choose the right length for 8 HP to 13 HP engines.
• Standard 1/8' male NPT inlet and Z Bend tip simplify connection to common unloader and pilot valve fittings.
• Sturdy spring return with 16.89 LBF provides dependable retraction and consistent operation.

Cons

• Limited to cable-style mechanical actuation, so it does not offer electronic control or fine proportional speed adjustment.
• Fitment requires selecting the correct variation for HP and OAL; ordering the wrong length will need replacement.

Specifications

Product type	Throttle control mechanism, cable whip style
Compatible engine range	8 HP - 13 HP
Overall length (example variant)	36' OAL
Stroke length	1.00 in
Retracted spring force	16.89 LBF
Inlet connection	1/8' male NPT
Cable tip	Z Bend connection type

Our Verdict

The Throttle Control Mechanism cable whip style is a sensible, cost-effective mechanical solution for small gas engine compressors that need reliable load/unload speed control. It delivers solid return force, a usable 1.00 in stroke, and standard pneumatic connections, making it good value for workshops that require durable, serviceable throttle linkage without electronic complexity.

Frequently Asked Questions

Will this fit my 10 HP compressor?
Likely yes if you choose the variation specified for 8 HP to 13 HP engines and confirm the 36' overall length suits your mounting distance.

How does it connect to the pilot valve?
The throttle control uses a 1/8' male NPT inlet and a Z Bend cable tip to attach to the throttle outlet on the pilot/unloader valve.

Does it require electrical power?
No, this is a pneumatic-actuated mechanical cable control that operates via the pilot valve signal and spring return.
