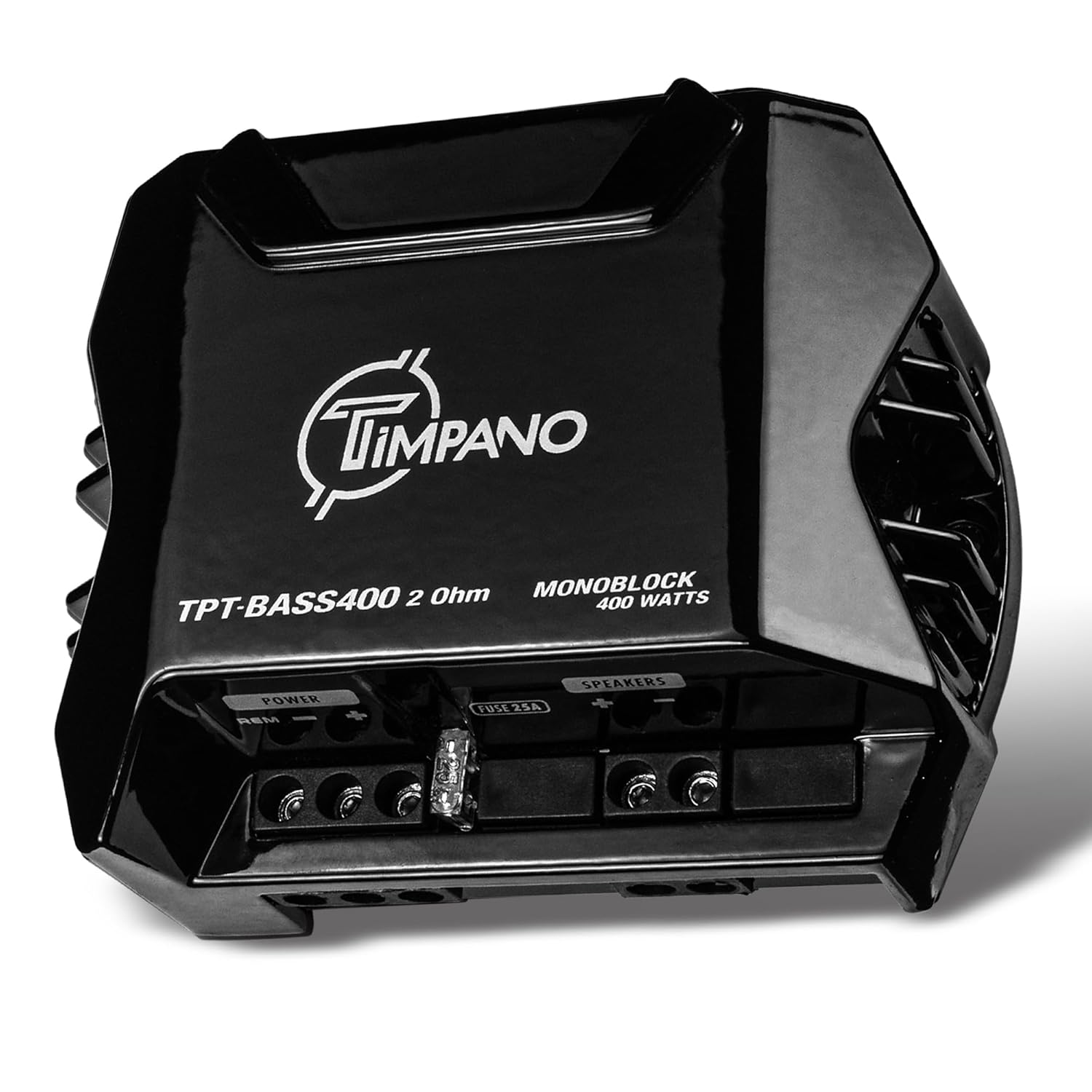

Timpano 400 Watts Mono Subwoofer Car Amplifier TPT-BASS400 - Compact

In this review the focus is the Timpano TPT-BASS400, a compact monoblock designed solely for bass. The bottom line: it is for drivers who want a focused 400 Watts RMS subwoofer amplifier in a small footprint that can be tuned without extra gear. The amp's main selling point is its combination of high-efficiency Class D design and built-in crossover and bass boost controls, which let a user dial in deep low end without adding an external DSP or crossover. It is best for tight installs where bass impact matters more than channel count.

Key Features

• 400 Watts RMS power: Provides dedicated power for subwoofer applications so low frequencies remain strong under load.
• Built-in variable crossovers: Subsonic 5-35Hz and LPF 35-250Hz let installers tune the amp to match sealed or ported boxes without extra components.
• Bass boost and frequency dial: Selectable boost up to +15 dB at a chosen frequency to emphasize low end for musical preference or small rooms.
• High-level inputs with auto turn-on: Accepts speaker-level signals and triggers automatically, simplifying installation on factory head units.
• Compact Class D design: Digital full bridge Class D topology and efficient power stage deliver strong output with a small heatsink footprint for tight mounting.

Who It's For

The TPT-BASS400 is aimed at car audio enthusiasts who need a single-channel amplifier to drive a subwoofer without adding an external crossover or DSP. It suits installations where space is limited but bass is a priority, such as compact trunks, hatchbacks, or custom enclosures in tight locations.

It is less appropriate for users who need multi-channel amplification, advanced digital signal processing, or very high-end audiophile refinement. If you require elaborate time alignment, multi-band DSP, or more than one driven channel, consider a different amplifier or a separate processor.

Pros & Cons

Pros

• Small chassis with high-efficiency Class D design lets it fit in tight spaces while delivering substantial RMS power.
• Integrated variable LPF and subsonic filters remove the need for external crossovers for most subwoofer setups.
• High-level inputs and signal auto turn-on simplify connection to factory radios without a remote wire.

Cons

• Single-channel design limits use to subwoofers only; not suitable if you need multi-channel amplification.
• No built-in DSP means advanced tuning options like time alignment are not available.

Specifications

Brand	Timpano
Model	TPT-BASS400
Power	400 Watts RMS (mono, subwoofer)
Load	2 Ohm compatible
Operating Voltage	12 Volts
Filters	Subsonic 5-35Hz; LPF 35-250Hz
Dimensions	3.93 in depth x 5.02 in width x 2 in height

Our Verdict

The Timpano 400 Watts mono amplifier is a practical, value-oriented choice for anyone building a bass-focused car system with limited space. Its built-in crossovers, bass boost, and high-level inputs make it especially easy to install on factory systems, and the Class D efficiency keeps power draw modest. Buy it if you need a straightforward, tunable mono amp for a dedicated subwoofer and prefer simplicity over advanced DSP features.

Frequently Asked Questions

Can this amp run a 2 Ohm subwoofer?
Yes, the amp is specified for mono subwoofer duty and is compatible with 2 Ohm loads for delivering the rated power.

Do I need an external crossover or DSP?
No, the amp includes an adjustable subsonic filter and LPF plus a frequency-selectable bass boost, so most subwoofer systems can be tuned without extra crossover gear.

Will it turn on with a factory radio?
Yes, the high-level inputs and signal auto turn-on allow it to detect speaker-level signals and power up without a remote turn-on wire.
