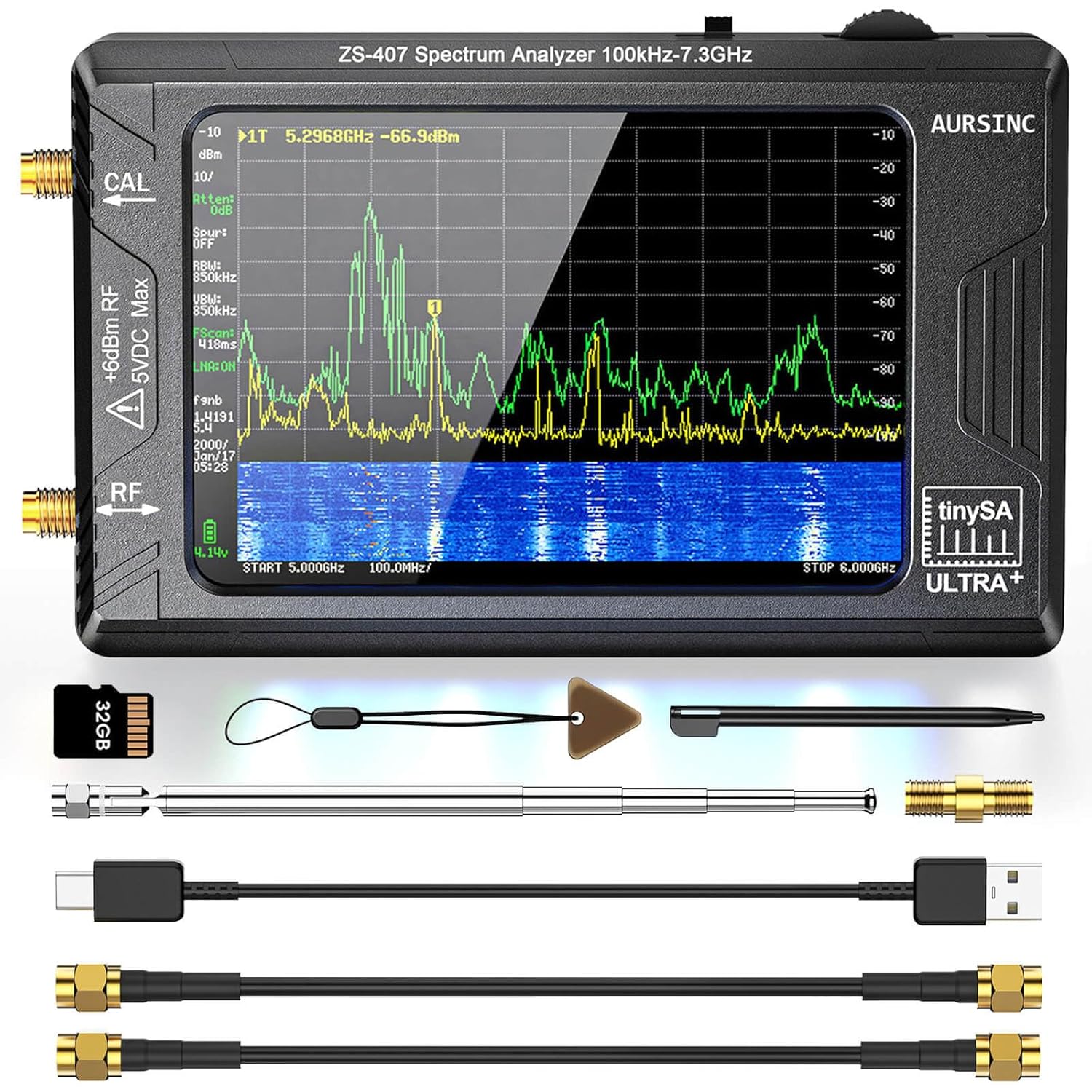

Tinysa Ultra+ ZS407 Spectrum Analyzer 100kHz-7.3GHz - Portable RF Tool

In this review of the Tinysa Ultra+ ZS407, the bottom line is simple: hobbyists and field technicians who need a compact, capable spectrum analyzer and signal generator in one will find a lot to like. The unit's single biggest selling point is the unusually wide practical frequency coverage - a calibrated range to 7.3GHz with observation capability beyond that - paired with a bright 4 in IPS display and a long 5000mAh battery that makes extended outdoor or bench use realistic.

Key Features

• Ultra-wide frequency range: Covers 100kHz to 900MHz in normal mode and can be enabled to 7.3GHz for level-calibrated analysis, letting users inspect a very broad set of RF signals.
• High-resolution display: The 4 in IPS-TFT (480x320) screen can show up to 450 points per scan so spectral details and peaks are clearly visible on the handheld unit.
• Integrated signal generator: Acts as a sine wave generator from 0.1MHz to 900MHz and can produce square or RF test outputs to very high frequencies, useful for basic stimulus and alignment work.
• Long battery life and storage: Built-in 5000mAh Li-polymer battery supports long runs in the field and an included 32GB micro SD card stores captures and data without external drives.
• Improved sensitivity and phase noise: Internal LNA provides up to 20dB gain and a low noise floor for weak signals, while phase noise specs indicate good spectral purity for many test tasks.
• PC control and connectivity: USB Type-C control and included cables make it straightforward to transfer data and operate the unit from a computer for deeper analysis.

Who It's For

This device is well suited to radio amateurs, RF hobbyists, and maintenance technicians who need a portable, multi-function instrument for spotting, characterizing and generating signals across HF, VHF and UHF bands. The combination of a clear touchscreen, signal generation and long battery life make it practical for field troubleshooting and portable lab use.

It is less appropriate for users who require traceable lab-grade calibration certificates or the absolute lowest measurement uncertainty for regulatory compliance; professional labs with strict metrology needs should consider bench instruments designed for that purpose.

Pros & Cons

Pros

• Wide practical frequency coverage with Ultra mode to 7.3GHz and observation up to higher harmonics.
• Clear 4 in IPS display with up to 450 points per scan for visible spectral detail.
• Built-in 5000mAh battery and 32GB storage make it genuinely portable for extended field use.
• Useful signal generation options and strong LNA sensitivity for weak signals.

Cons

• Not a substitute for high-end, certified lab analyzers when absolute calibration and metrology are required.
• Some advanced users may want more extensive software integration or accessory options than included.

Specifications

Frequency range	100kHz to 900MHz (normal), Ultra to 7.3GHz, observe to ~12GHz
Display	4 in IPS-TFT (480x320), up to 450 points per scan
Signal generator	Sine 0.1MHz-900MHz; square to 6.3GHz; RF test up to 7.3GHz
Battery	Li-polymer 3.7V 5000mAh (built-in)
Storage	32GB micro SD card (included)
Receiver LNA	Internal LNA up to 20dB gain (to 7.3GHz)
Connectivity	USB Type-C, PC control supported

Our Verdict

The Tinysa Ultra+ ZS407 is an excellent value handheld spectrum analyzer and signal generator for RF hobbyists and field technicians who want broad frequency coverage, good sensitivity and long runtime without a bench setup. It delivers key lab-style features in a compact package, making it a practical choice for on-site troubleshooting and experimental work where portability and versatility matter.

Frequently Asked Questions

Can this unit run on battery for field use?
The built-in 5000mAh battery provides extended runtime suitable for outdoor testing and portable use.

Does it store captures directly?
Yes, a 32GB micro SD card is included and plugs into the host for on-site data storage and transfer.

Can it be controlled from a PC?
Yes, the ZS407 supports PC control via USB Type-C for data transfer and remote operation.
