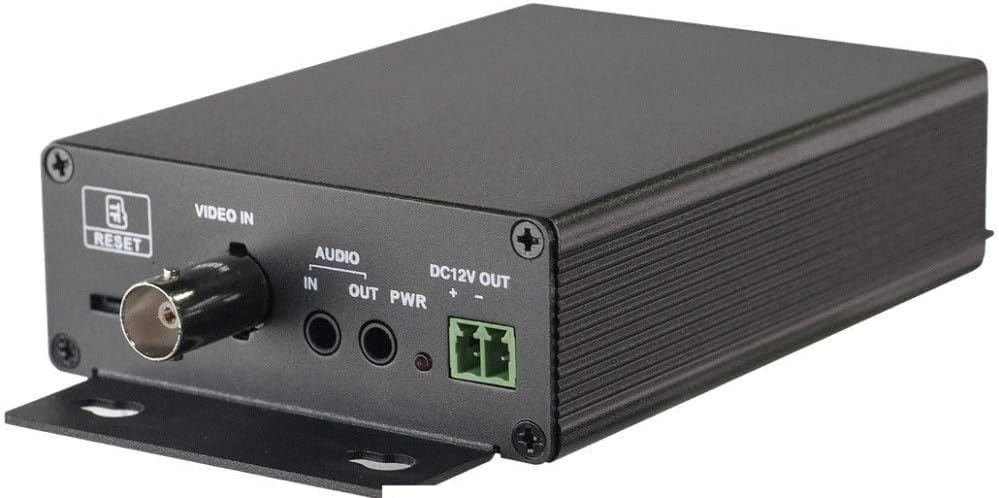

Titanium ED-DVS1401E HD Video Server - 4MP Real Time Coding

In this review of the Titanium ED-DVS1401E HD Video Server the bottom line is simple: it is aimed at installers and small security teams who need reliable analog to IP bridging with high resolution and flexible encoding. The reviewer found the unit strongest for projects that require 4MP AHD access, multiple encoding options, and local failover recording via Micro SD, making it a practical choice where upgrading existing analog cameras to modern recording and network workflows matters most.

Key Features

• 4MP full real time coding: Delivers up to 2560x1440 resolution for clearer detail from compatible AHD inputs, useful for identification and forensic review.
• Multiple encoding formats: H.265, H.264 and MJPEG support allows balancing quality and bandwidth depending on network constraints.
• Local Micro SD storage: Supports pre-alarm recording and auto cycle recording on a local card so short outages or network interruptions do not lose footage.
• Smart analysis and alarm I/O: Built-in smart functions such as line crossing and intrusion detection with 1CH alarm in and out help automate event response.
• Power options and protection: PoE or DC12V power and TVS 6000V surge protection increase installation flexibility and resilience in the field.

Who It's For

The ED-DVS1401E is best for small commercial sites, retrofit residential systems, and installers who need to convert legacy AHD/CVBS or TVI cameras to IP workflows while keeping local recording and smart analytics. Its support for ROI coding and three streams makes it useful where bandwidth needs to be managed without sacrificing key image areas.

It is less suited to users who need multi-channel NVRs in a single chassis or those wanting an all-in-one recorder with many built-in camera ports; the device is a single channel server intended as a bridge or supplement to an existing recording architecture.

Pros & Cons

Pros

• Supports 4MP AHD/CVBS input with full real time coding for improved image detail.
• Flexible encoding with H.265/H.264/MJPEG to reduce storage and bandwidth needs.
• Local Micro SD recording with pre-alarm and auto cycle for redundancy during network loss.

Cons

• Single channel input limits use where multi-camera consolidation in one box is required.
• Advanced features like smart analysis may require configuration via client software or web browser, which can add setup time.

Specifications

Our Verdict

The Titanium ED-DVS1401E is a focused tool for technicians and small system integrators who need a reliable single-channel video server with modern codecs, local redundancy, and smart features. It provides strong value when converting analog cameras to IP or adding local buffering and analytics without replacing existing cameras.

Frequently Asked Questions

Can this server record if the network goes down?
Yes. It supports Micro SD local storage with pre-alarm recording and auto cycle recording to retain footage during outages.

Which camera formats are supported?
The unit supports 4MP AHD and CVBS, and 2MP TVI/AHD/CVBS inputs as listed in the specifications.

Does it require a special NVR?
No. It streams using standard H.265/H.264/MJPEG which can be integrated with compatible NVRs or managed through client software or a web browser.
