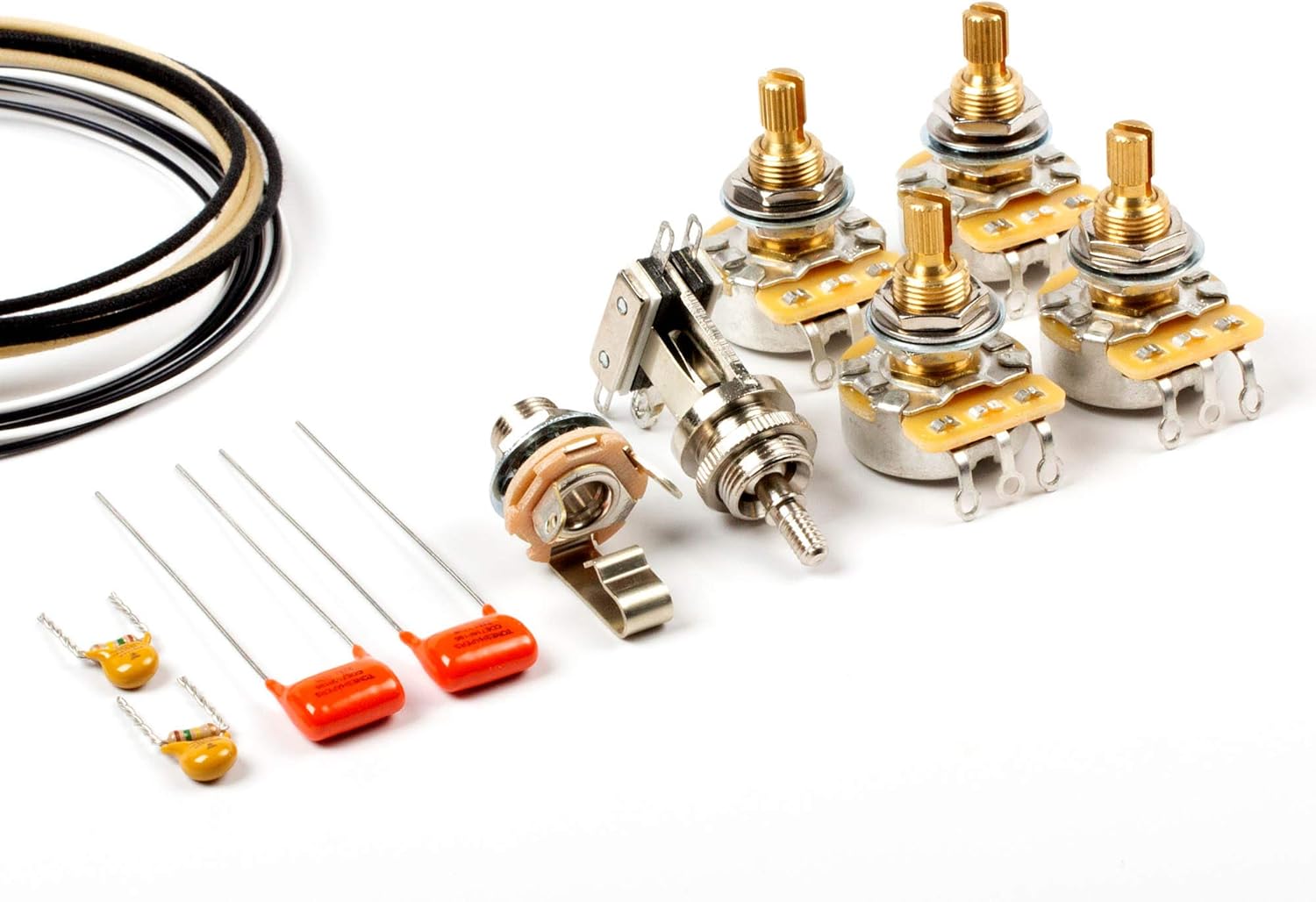

ToneShaper Guitar Wiring Kit for ES-335 - Complete OEM Parts

In this review the ToneShaper Guitar Wiring Kit for ES-335 is judged as a straightforward, all-in-one wiring solution for players and techs who want authentic replacement parts and clean, predictable results. The biggest reason to buy is the parts quality: the kit uses CTS 500k audio-taper pots and genuine Switchcraft hardware, so you get the same component sources used by larger builders. For anyone rewiring a Gibson ES-335 or a similar semi-hollow guitar, this kit simplifies the job and removes guesswork about compatibility and parts fit.

Key Features

• CTS 500k Audio-Taper Pots: Low-torque,.500' bushing length pots provide smooth volume and tone control while fitting most ES-335 top thicknesses without extra hardware.
• Switchcraft Hardware: The included Switchcraft 1/4' mono jack and 3-way toggle are durable, shop-grade parts that reduce wiring failures and improve connection reliability.
• High-quality capacitors: Two.022F Orange Drop capacitors deliver stable tone shaping with components favored in professional repair and custom builds.
• Complete wiring set: Multiple conductor types and colors plus treble bleed kits give the exact wiring options needed for humbuckers and standard ES-335 layouts.
• Professional wiring diagram: A fully illustrated diagram is included to guide both beginners and experienced technicians through correct soldering and grounding.
• Correct hardware threads: UTS threads match USA-style guitars, though imported guitars may need hole enlargement for perfect fit.

Who It's For

This kit is ideal for guitarists, hobbyist techs, and professional luthiers working on a Gibson ES-335 or any similar semi-hollow instrument who want OEM-grade components without buying parts separately. The included wiring diagram and clearly labeled wires make it accessible for those comfortable with soldering and basic electronics.

It is less suitable for players who require custom potentiometer values, non-standard capacitors, or decorative knobs and switch tips, since knobs and switch tip are not included and imported guitars may need minor drilling. Those seeking cosmetic accessories should plan to buy knobs and a tip separately.

Pros & Cons

Pros

• High-quality components (CTS pots, Switchcraft jack and toggle) improve reliability and tone consistency.
• Comprehensive wire selection and treble bleed kits accommodate humbucker setups and conventional ES-335 wiring.
• Professional, fully illustrated wiring diagram makes installation far simpler and reduces error risk.

Cons

• Knobs and switch tip are not included, so cosmetics require a separate purchase.
• UTS threads are for USA guitars; some imported instruments may need hole enlargement for proper fit.

Specifications

Brand	ToneShaper
Potentiometers	CTS 500k audio-taper, low-torque,.500' bushing length
Capacitors	Two.022F Orange Drop
Switch	Switchcraft 3-way toggle, short straight
Jack	Switchcraft 1/4' mono, long bushing
Wiring	Multiple 22 AWG wires: cotton push-back, braided, and silver-plated PTFE in black and white
Documentation	Professional, fully illustrated wiring diagram

Our Verdict

The ToneShaper Guitar Wiring Kit for ES-335 is a practical, cost-effective choice for anyone rewiring an ES-335 or similar guitar who values authentic parts and clear documentation. With CTS pots, Switchcraft hardware, and multiple wire options included, it removes much of the guesswork and delivers professional-grade components at good value, provided you already have or will buy knobs and any cosmetic pieces separately.

Frequently Asked Questions

Will these pots fit through the control cavity and top?
The CTS pots have a.500' bushing length which is long enough for most ES-335 tops and control cavities; measure your top thickness if you are unsure.

Are knobs and switch tip included?
No, the kit does not include knobs or the switch tip; those must be purchased separately to match your guitar's finish.

Will this kit work on imported guitars?
Yes, the components work electrically, but imported guitars with non-UTS thread holes may require slight enlargement for proper fit of the supplied hardware.
