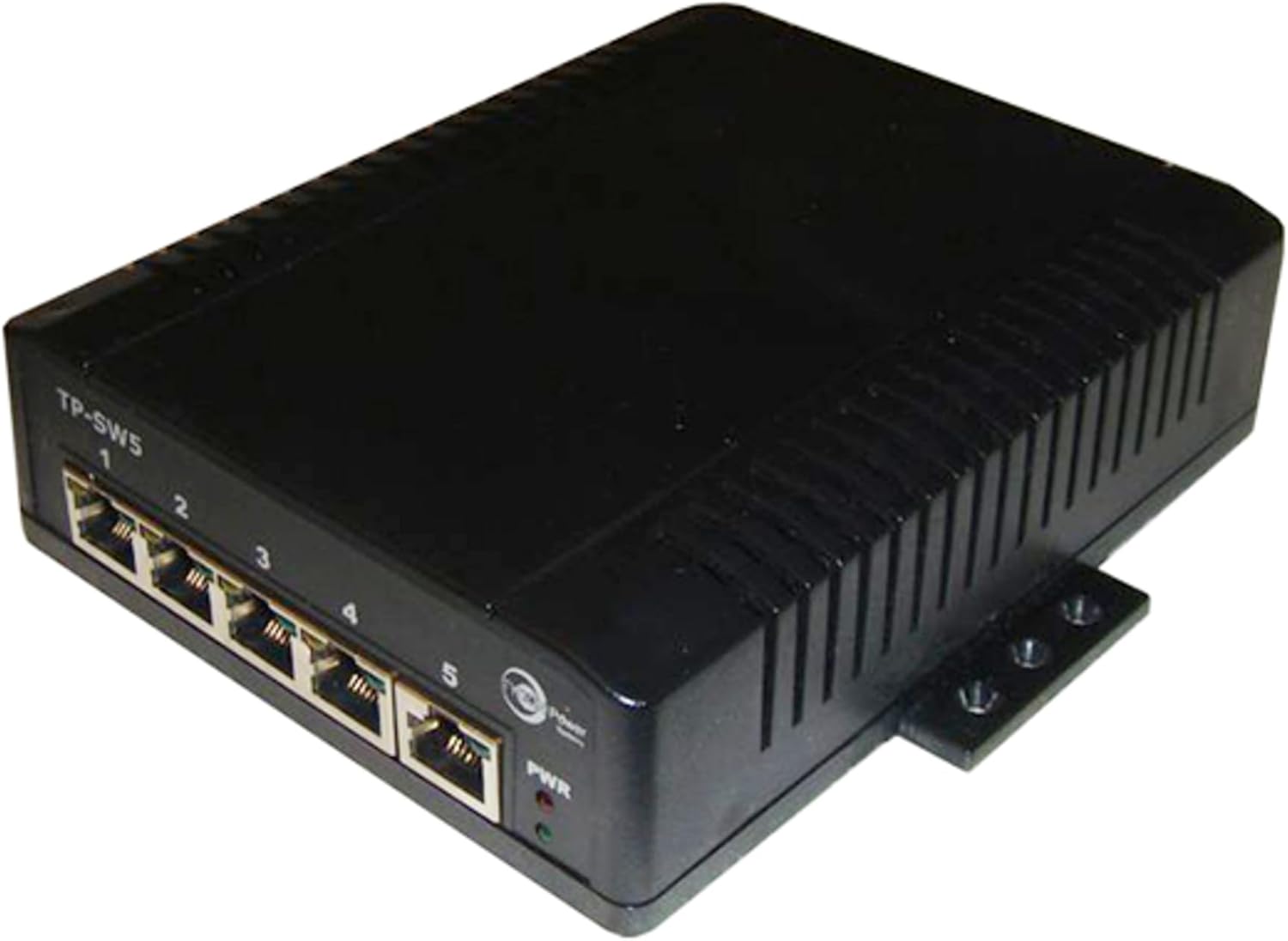

TP-SW5G-24 5 Port High Power PoE Switch - Battery Ready

In this review the TP-SW5G-24 is evaluated as a small, rugged PoE switch for installations that need reliable power over Ethernet from a DC source. Its single biggest reason to buy is the wide 10V to 36V DC input range and dual power inputs, which make it ideal for battery-backed or vehicle power systems where standard AC supplies are unavailable. The reviewer found the unit especially useful for field-deployed wireless access points and security cameras because it supplies up to 35 W to PoE devices while remaining an uncomplicated, unmanaged Gigabit Layer 2 switch.

Key Features

• Wide DC Input: The 10V to 36VDC wire terminal input lets the switch run directly from batteries, solar charge controllers or vehicle power without extra converters.
• High PoE Budget: A 70W total PoE budget supports multiple 802.3at devices so several access points or cameras can be powered at once.
• 802.3af/at Detection: Automatic IEEE802.3af/at compliance ensures safe negotiation and delivery of power only to valid PoE devices.
• Five Gigabit Ports: Four PoE ports plus one uplink gigabit port provide full 1 Gbps connectivity for backhaul and powered endpoints.
• Dual Power Inputs: Primary and backup power terminals reduce downtime by allowing redundant power feeds for critical installations.

Who It's For

The TP-SW5G-24 is aimed at integrators and installers who need a compact, robust PoE switch that will operate where DC power is the norm, such as remote wireless deployments, mobile command centers, or off-grid security camera systems. Its unmanaged design and solid PoE budget make it a practical choice for technicians who want plug-and-play installation without advanced configuration.

Those who need extensive Layer 3 features, managed VLANs, or cloud-based monitoring should look elsewhere; this unit focuses on reliable power delivery and basic Layer 2 switching rather than advanced network management.

Pros & Cons

Pros

• Supports wide 10V to 36V DC input which is excellent for battery or vehicle-powered systems.
• 70W total PoE with four 802.3at ports lets multiple mid-power devices run simultaneously.
• Unmanaged Gigabit switching is simple to deploy for installers who prefer no configuration overhead.

Cons

• Unmanaged feature set means no advanced routing, VLAN tagging, or remote monitoring for complex networks.
• Physical installation requires safe handling of DC wire terminals and appropriate cable gauges for higher currents.

Specifications

Our Verdict

The TP-SW5G-24 is a practical, value-oriented PoE switch for deployments powered from DC sources. It delivers a useful 70W PoE budget, wide 10V to 36V input range and redundant power terminals, making it a dependable choice for remote wireless and surveillance installs where simplicity and reliable power delivery matter more than advanced management.

Frequently Asked Questions

Can this switch run from a vehicle battery?
Yes, the 10V to 36VDC input accepts vehicle battery voltages and is suitable for mobile or vehicle-based systems when installed correctly.

How many devices can be powered at once?
It has a 70W total budget across four PoE ports; the number of devices depends on each device's power draw up to the 70W limit.

Does it support Power over Ethernet negotiation?
Yes, the switch complies with IEEE802.3af/at and automatically negotiates PoE with supported devices.
