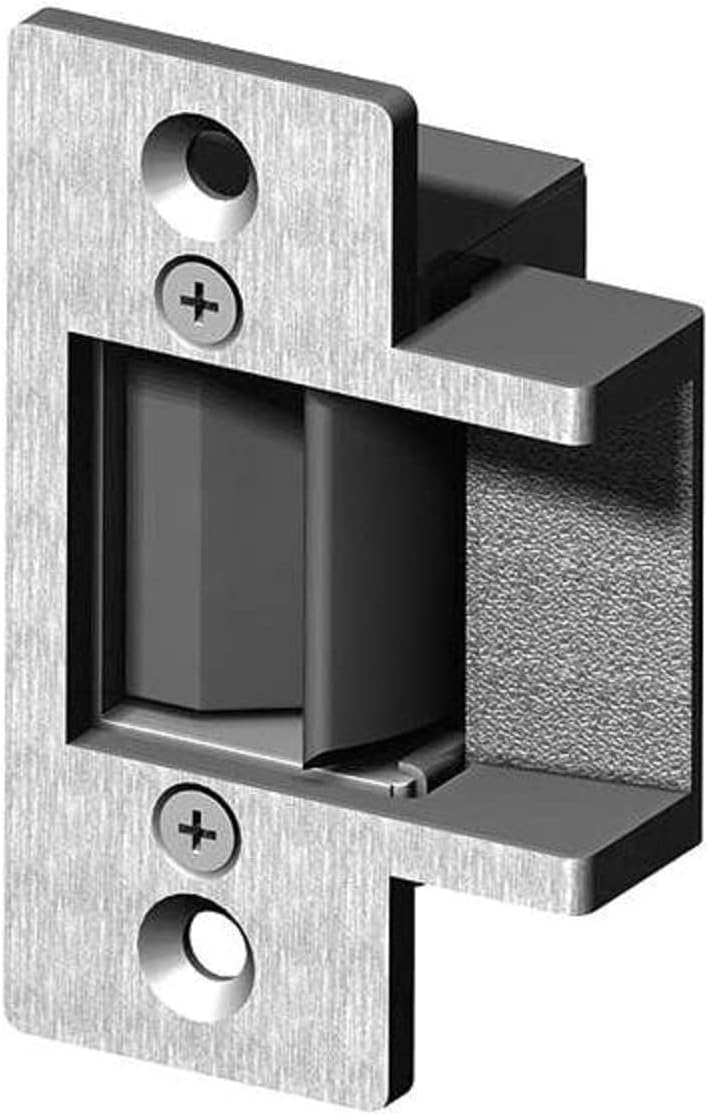

Trine Access 3000 Series Satin Chrome Smallest Electric Strike

In this review of the Trine Access 3000 Series Satin Chrome Smallest Electric Strike, the bottom line is simple: installers and security professionals who need a compact, high-performance strike for tight or difficult frames will appreciate it most. The reviewer found the unit's claim as the smallest strike and its Grade 1 construction deliver genuine utility where space is limited. The combination of up to 1,500 lb holding force, over 500,000 life cycles and a 1-in total backset requirement makes this a practical choice for retrofit jobs, glass-front doors, and concrete-filled steel frames.

Key Features

• Smallest footprint: The compact body lets this electric strike fit into tight cavities and narrow frames where larger strikes cannot be installed.
• Grade 1 durability: Built for heavy use, the mechanism supports more than 500,000 life cycles for long-term reliability in commercial doors.
• High holding force: With up to 1,500 lb of holding force and 70 ft/pound dynamic force, it secures doors against forced entry in demanding installations.
• Stainless steel construction: Solid stainless steel latch and device body resist wear and corrosion for dependable operation in varied environments.
• Simple shallow installation: Requires only a 1 in total backset and includes mechanism spacers to increase cavity depth by up to 1/8 in for easier fitting in difficult frames.
• Flexible fail mode: Available in standard fail secure and optional fail safe RS variants so installers can choose the behavior that matches the application.

Who It's For

The Trine Access 3000 Series is aimed at contractors, locksmiths, and facility managers who need a high-performance electric strike for cramped or challenging door frames, such as glass fronts, aluminum doors, or concrete-filled steel frames. Its minimal backset requirement and strong holding power make it a solid option for commercial entrances and retrofit work where cutting room is limited.

It is less suited to do-it-yourself homeowners who lack experience with electric strike wiring or commercial-grade hardware; those users should consult a professional installer. Also, projects that demand an unusual bolt throw beyond 5/8 in or highly specialized, nonstandard finishes may require a different model.

Pros & Cons

Pros

• Exceptionally compact design allows installation in very tight cavities and narrow frames.
• Grade 1 mechanism with over 500,000 life cycles for dependable commercial use.
• Strong holding force and solid stainless steel components resist forced entry and wear.
• Mechanism spacers and shallow 1 in backset simplify retrofits in difficult frame materials.

Cons

• The unit accepts bolts up to 5/8 in throw, so doors requiring longer bolt engagement need a different strike.
• Professional installation is recommended for proper wiring and frame preparation in commercial settings.

Specifications

Series	3000 Series
Finish	Satin Chrome
Voltage	24 VDC
Holding force	Up to 1,500 lb
Life cycles	500,000+
Dynamic force	70 ft/pound
Bolt throw accepted	Up to 5/8 in

Our Verdict

The Trine Access 3000 Series Satin Chrome strike is a compact, Grade 1 electric strike that delivers professional-level security in installations where space is at a premium. Installers will value the shallow backset, high holding force, and robust stainless steel construction, making it good value for retrofit and commercial jobs when a small footprint and durability matter most.

Frequently Asked Questions

Is this strike handed or non-handed?
The unit is non-handed for most models, though certain LO/RO variants are exceptions; check the exact model before ordering.

Can it be installed on glass-front or aluminum doors?
Yes, its small size and shallow backset make it suitable for glass-front and aluminum door frames where cutting depth is limited.

What fail mode options are available?
Standard is fail secure (unlocks with power); the RS option provides fail safe behavior (locks with power).
