Two Door Access Control Kit for Inswing Door 300lbs MagLock - Complete

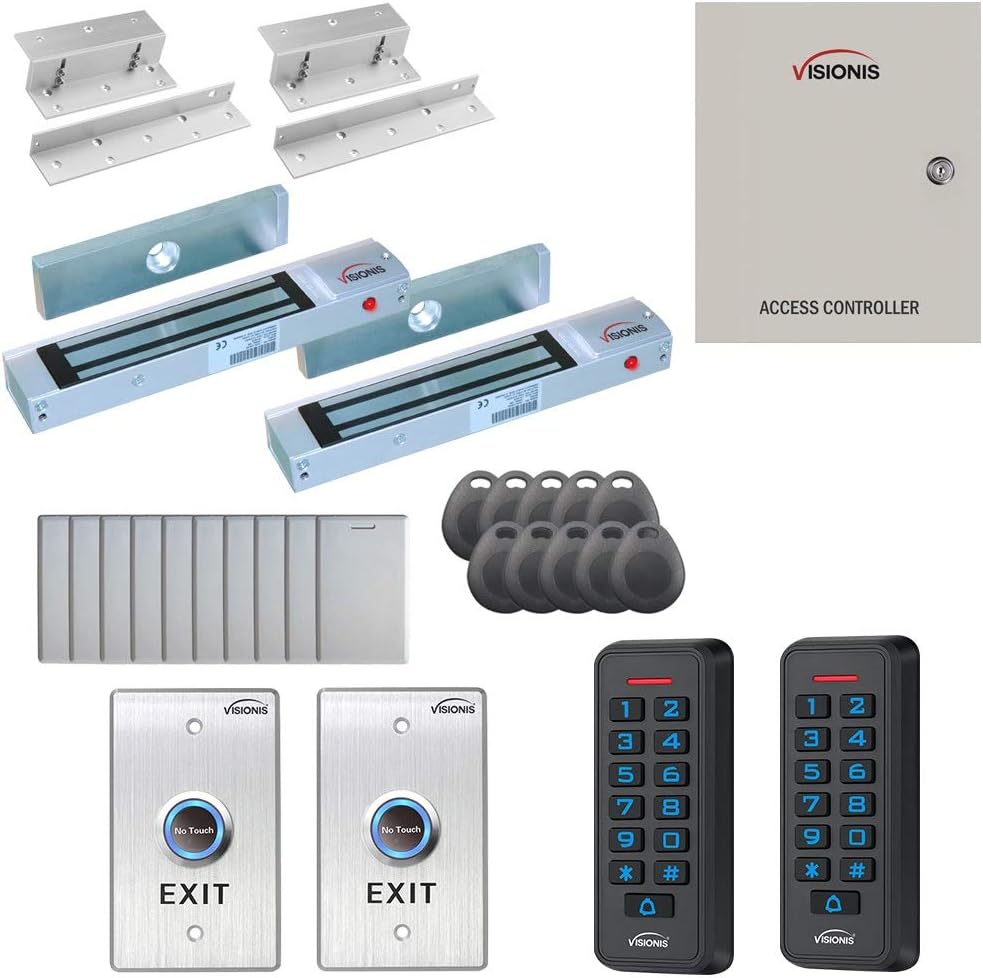

In this review the reviewer looks at a comprehensive two door access control kit aimed at small offices and light commercial sites that need a complete, out-of-the-box solution. The package bundles a two-door controller with TCP/IP and Wiegand support, two 300 lb magnetic locks with brackets, outdoor card reader keypads, request-to-exit buttons, plus cards and keyfobs, and desktop software for user management; the single biggest reason to consider it is that it provides networked control for up to 10,000 users while still supporting standalone keypad operation at the door.

Key Features

• Two door controller: The VS-AXESS-2ETL panel includes TCP/IP and Wiegand support with desktop software and a built-in power supply so administrators can manage up to 10,000 card or keyfob users from a PC.
• 300 lb magnetic locks: Each VIS-ML300LED lock provides a visible LED sensor and pairs with included L and Z brackets for reliable installation on standard inswing doors.
• Weather resistant readers: The VIS-3008 black outdoor IP66 readers combine card and keypad functions with Wiegand 26-37 bit compatibility for flexible credential formats.
• Multiple credential types: The kit ships with ten 26-bit proximity cards and ten 26-bit keyfobs so you can deploy card or fob access immediately for users.
• Exit hardware and delay: Stainless steel no-touch request-to-exit buttons with LED and configurable time delay simplify egress while integrating NC, COM and NO outputs for wiring options.

Who It's For

This kit is best for small businesses, clinics, or multi-door suites that want a single purchase to cover hardware, credential supplies, and controller software without sourcing separate components. Installers who need a networked controller with desktop management and room for expansion will appreciate the included cabinet and power supply.

It is less suited for ultra high-security sites that require high-end encrypted readers or for locations that must use PIN-only authentication for large user sets, since the keypad PIN capacity is limited to 65 PIN users on the keypad option; card and keyfob credentialing remains the recommended path for larger user counts.

Pros & Cons

Pros

• Comprehensive kit that includes locks, brackets, readers, controller with software and power, plus cards and keyfobs for immediate deployment.
• Networked TCP/IP and Wiegand support with desktop management lets administrators scale up to 10,000 card or keyfob users.
• Outdoor IP66-rated readers and stainless steel no-touch exit buttons provide durable components suitable for many installations.

Cons

• Keypad PIN capacity is limited to 65 PIN users, so PIN-only installations with many users are not recommended.
• This kit uses 125 kHz EM proximity credentials and Wiegand formats rather than higher-security encrypted readers, which some sites may prefer.

Specifications

Controller	VS-AXESS-2ETL two door TCP/IP Wiegand board with cabinet and power
Card capacity	10,000 users (cards/keyfobs)
Maglocks	(2) VIS-ML300LED 300 lb indoor magnetic locks with LED
Readers	(2) VIS-3008 outdoor IP66 card reader and keypad, 125 kHz EM
Exit buttons	(2) VIS-7013 stainless steel no-touch request-to-exit with LED
Included credentials	10 proximity cards and 10 keyfobs, 26-bit 125 kHz

Our Verdict

This two door kit offers strong value when you need a full hardware and controller bundle for small commercial access control. Its combination of a networked controller that supports up to 10,000 users, IP66 readers, 300 lb locks, and included credentials lets installers deploy a working system quickly; choose card or keyfob credentials for larger user bases and be aware the keypad PIN option is limited to 65 users.

Frequently Asked Questions

Can I manage users remotely?
The controller uses TCP/IP and desktop software for management, so administrators can manage users over the network from the provided software.

How many users can the keypad handle?
The keypad PIN option supports up to 65 PIN users; however card and keyfob credentialing supports up to 10,000 users.

Are the readers weather resistant?
Yes, the VIS-3008 readers are rated IP66 for outdoor weather resistance and include keypad and card functions.
