Two Door Access Control Kit for Outswing Doors - MagLock & TCP/IP

In this review of the Two Door Access Control Kit buyers get a compact, work-ready solution for small offices or multi-entry homes that need credentialed access and basic time attendance. The reviewer found the system strongest for sites that require two controlled outswing doors, a reliable 300 lb maglock per door, and centralized TCP/IP management for up to 10,000 users via cards or keyfobs. Setup takes some wiring and basic configuration, but once running the kit delivers consistent door locking, no-touch exits, and a simple desktop software interface for attendance and user administration.

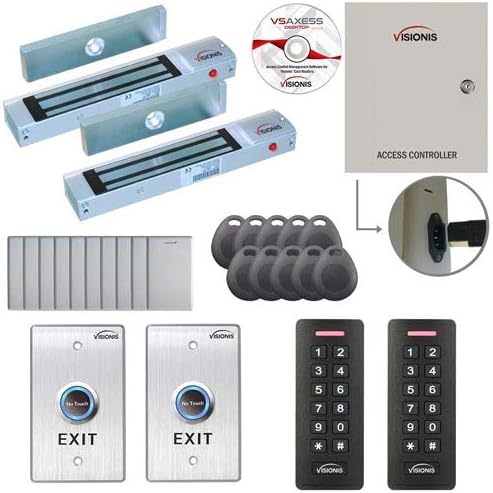

Key Features

• Dual 300 lb MagLocks: Two VIS-ML300LED locks provide secure electromagnetic holding and an LED sensor that clarifies lock status at a glance.
• Weatherproof Readers: Two VIS-3008 outdoor IP66 card reader and keypad units allow credential or PIN entry with toggle and delay modes for varied entry behavior.
• High Capacity Controller: The VS-AXESS-2ETL controller supports TCP/IP, Wiegand and desktop software for managing up to 10,000 users with centralized logging and time attendance.
• No-Touch Exit Buttons: Two stainless steel VIS-7013 request-to-exit switches reduce door contact and include LED feedback and configurable time delay.
• Credentials Included: Ten proximity cards and ten keyfobs let installers provision initial users quickly without sourcing extras.

Who It's For

The kit is aimed at small to medium facilities that need two independently controlled outswing doors and want both card/keyfob and optional PIN entry. Installers and IT staff who want a networked access controller with TCP/IP and Wiegand support will appreciate the included desktop software and cabinet with power supply.

It is less appropriate for users who need wireless locks, battery operation, or extremely small budgets because this is a wired system with dedicated components. Also note the keypad PIN option supports only up to 65 PIN users, so sites that rely primarily on PINs should look elsewhere or plan to use cards/keyfobs for larger user counts.

Pros & Cons

Pros

• Comprehensive two-door kit that includes locks, readers, controller, power and exit buttons for a near-complete install.
• High user capacity when using cards or keyfobs, with centralized TCP/IP management and attendance logging.
• IP66 rated readers and stainless no-touch exit buttons give durable outdoor and high-traffic performance.

Cons

• The keypad PIN option is limited to 65 PIN users, which is a real constraint if PINs are the primary credential choice.
• Wired installation and cabinet mounting require some electrical and low-voltage wiring experience.

Specifications

Locks	(2) VIS-ML300LED 300 lb indoor maglocks with LED sensor
Readers	(2) VIS-3008 IP66 outdoor card reader and keypad, 125 kHz EM
Controller	VS-AXESS-2ETL two door TCP/IP Wiegand controller with cabinet and power supply
User Capacity	Up to 10,000 users with cards/keyfob; keypad PIN option limited to 65 PIN users
Exit Buttons	(2) VIS-7013 stainless steel no-touch exit buttons with LED and time delay
Included Credentials	(10) 26-bit proximity cards and (10) 26-bit keyfobs

Our Verdict

This two-door access control kit is a practical, cost-effective choice for small businesses and facilities that need reliable wired maglock security and centralized TCP/IP management. It pairs durable outdoor readers and no-touch exits with a controller capable of large user populations when cards or keyfobs are used, making it good value for installations that can accommodate wired setup and want integrated time attendance.

Frequently Asked Questions

How many users can this system manage?
The controller supports up to 10,000 users using cards or keyfobs, though the keypad PIN mode is limited to 65 PIN users.

Are the readers weather resistant for outdoor mounting?
Yes, the VIS-3008 readers are IP66 rated for outdoor use and include keypad and toggle/delay modes.

Does the kit include power and software?
Yes, the VS-AXESS-2ETL controller comes with a cabinet, power supply and desktop software for management and time attendance.
