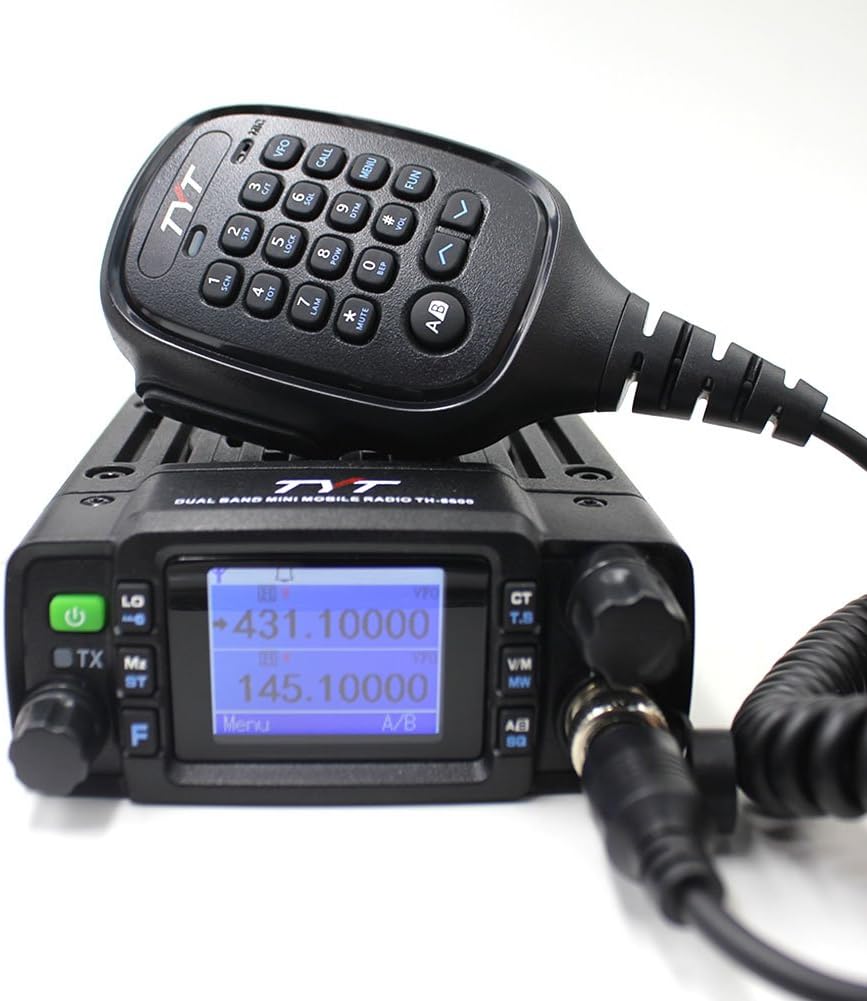

TYT TH-8600 Mini 25W Dual Band Mobile Radio Station - Rugged IP67

In this review the TYT TH-8600 Mini 25 Watt Dual Band Mobile Radio Station is evaluated for mobile ham and business radio use; the bottom line is that it is a compact, rugged dual-band transceiver that delivers flexible power settings and easy programming for operators who need a reliable in-vehicle or base station unit. The reviewer found the IP67 waterproof housing, dual display and straightforward microphone programming make it especially useful where space is tight or conditions are harsh, while the 200-channel memory and tri-power output give enough versatility for most VHF/UHF applications.

Key Features

• Dual Band TX/RX: Supports VHF TX 144-148mhz and UHF TX 420-450mhz with wide RX coverage, so users can monitor common 2m and 70cm amateur bands and nearby commercial ranges.
• IP67 Waterproof Case: The compact, solid body is rated IP67, providing durability and protection for installations where moisture or dust exposure is a concern.
• 25/20 Watt Output with Tri-Power: High/Mid/Low power settings let installers balance range and heat/power use for vehicle or fixed mounting.
• Dual Display and Dual Watch: Two simultaneous displays allow monitoring of two frequencies, useful for cross-band operation and keeping an eye on a priority channel.
• Easy Programming: Programmable through the included DTMF microphone or via PC port with free software from the maker, simplifying channel setup for field users.
• Accessory Ports: External speaker and PC programming data port on the rear plus a front microphone connector make integration with vehicles and desks straightforward.

Who It's For

The TH-8600 is aimed at amateur radio operators, emergency service volunteers and small fleet or business users who need a compact, water-resistant mobile transceiver with dual-band capability and flexible power levels. Its size and mounting options make it a good fit for vehicles, boats or constrained workspaces where a full-size unit would not fit.

Users who need digital modes, integrated GPS, or very advanced DSP audio features should look elsewhere; this model focuses on solid analog performance, straightforward controls and ruggedness rather than a long list of advanced extras.

Pros & Cons

Pros

• Compact IP67-rated chassis provides real-world protection against dust and water for durable mobile use.
• Dual-band operation with 200 programmable channels and dual display supports flexible monitoring of two frequencies at once.
• Multiple power settings (25/20W and tri-power High/Mid/Low) let users manage range versus power consumption and heat.
• Includes DTMF microphone, mounting bracket and power cable for quick installation and on-mic programming.

Cons

• Does not include advanced digital or GPS features; users seeking those capabilities will need a different model.
• Weight and small size mean it is less feature-rich than some full-size mobile transceivers.

Specifications

Model	TH-8600 Mini Dual Band
TX Frequency	VHF 144-148mhz, UHF 420-450mhz
RX Frequency	VHF 136-174mhz, UHF 400-480mhz
Output Power	25/20 Watt (High/Mid/Low tri-power)
Channels	200 programmable channels
Dimensions	107 x 125 x 45 mm
Weight	3.48 lb

Our Verdict

The TYT TH-8600 is a focused, practical mobile transceiver that offers strong value for operators needing a compact, rugged dual-band radio with easy programming and useful power options. It is a solid choice for vehicle or small-station installs where analog VHF/UHF capability, waterproofing and dual-watch convenience matter more than high-end digital features.

Frequently Asked Questions

Can I program channels from the microphone?
Yes, the unit supports easy programming through the included DTMF microphone and also via the rear PC programming port with free software.

Is the unit waterproof for marine use?
The radio is IP67 rated, offering dust-tight protection and temporary immersion resistance; suitable for wet environments with proper mounting.

What accessories come in the box?
The package includes the radio unit, DTMF microphone, mount bracket, DC power cable, screws and a user manual.
