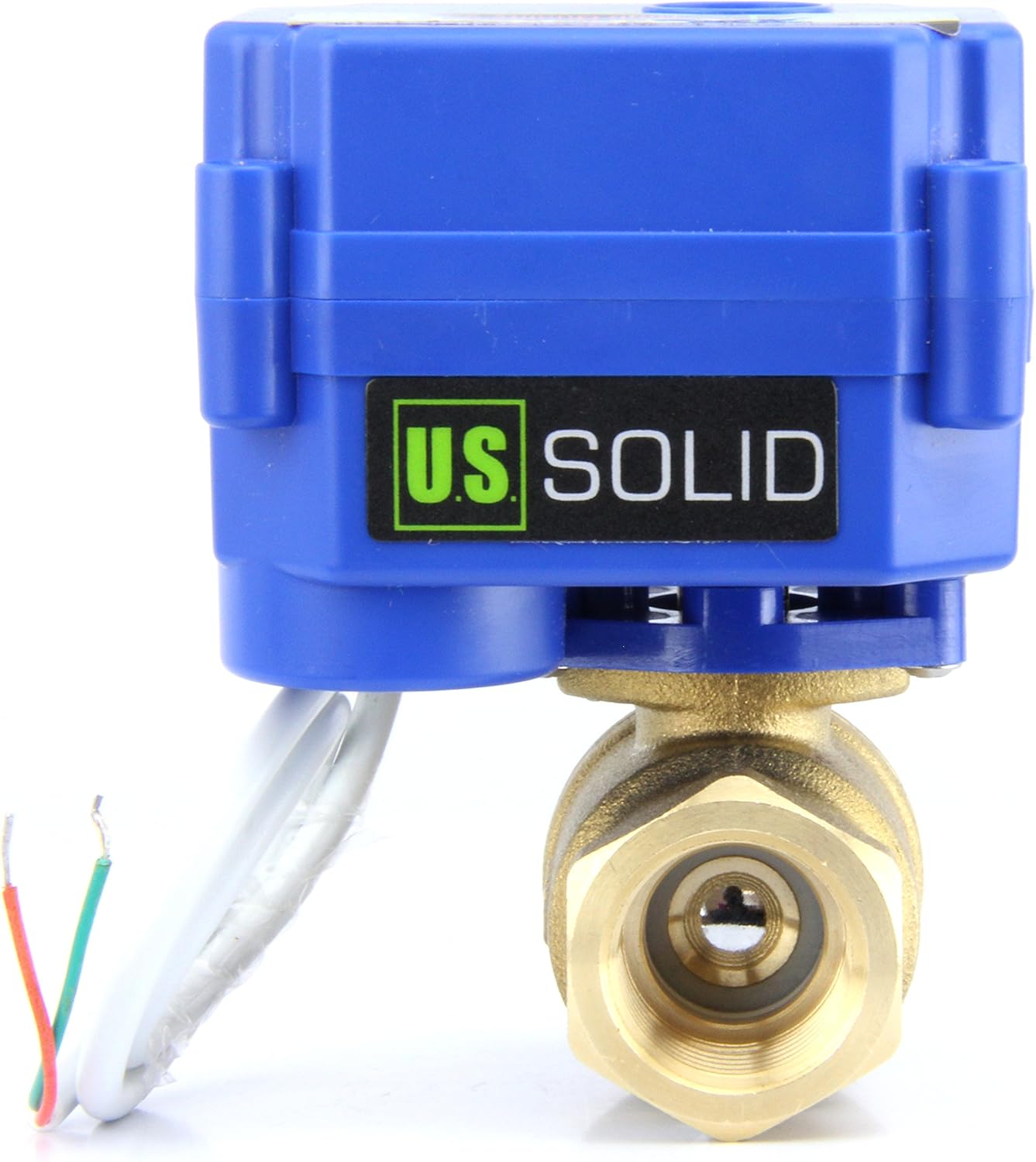

U.S. Solid Motorized Ball Valve 1in Standard Port - Auto Return

In this review the U.S. Solid motorized ball valve is evaluated for hobbyists and small-scale installers who need a dependable electrically actuated shutoff. The bottom line: it is a straightforward, durable 1in brass valve that excels when you want a simple two wire, automatic return actuator that largely de-energizes after operating. Its biggest selling point is the combination of a heavy brass body and a limit switch drive that reduces power draw and overheating risk compared with continuous-duty solenoid alternatives.

Key Features

• Brass construction: The solid brass body provides corrosion resistance and a sturdy feel that suits long-term plumbing use.
• 1in NPT threading: Standard NPT threads make it a drop-in choice for many plumbing and farm sprayer installations without custom adapters.
• Standard port bore: The bore is slightly under 1in which helps minimize pressure loss while still providing a compact ball valve profile.
• 9-24V AC/DC operation: The wide voltage range lets the valve work with common DC or AC control supplies and opens or closes in about 3-5 seconds.
• 2 wire automatic return: A simple two-wire hookup and an auto-return design mean the valve returns to closed when power is removed, useful for safety or fail-safe setups.
• Limit switch power cut-off: Built-in limit switches largely de-energize the actuator once fully open or closed, reducing heating and improving duty life.

Who It's For

This valve is aimed at makers, aquarists, small farm operators, and home automation hobbyists who need a robust, electrically driven ball valve that will sit inline for repeat cycles. It is particularly useful where a valve must remain open for extended periods without the actuator overheating, and where a fail-safe closed state on power loss is desired.

Those who need minute, precision flow control or who require a full-port 1in bore should look elsewhere, as this is a standard-port ball valve. Professional installations requiring certified fittings for commercial potable water approvals should verify compatibility with local codes before purchase.

Pros & Cons

Pros

• Reliable brass build gives a solid feel and long mechanical life of roughly 80,000-100,000 cycles.
• Energy efficient actuator that largely de-energizes at end positions, lowering overheating risk compared with solenoid setups.
• Wide 9-24V AC/DC compatibility and fast 3-5 second actuation suit many control systems.
• Easy two-wire hookup simplifies installation for automation projects and ATO aquarium systems.

Cons

• Some users report mixed results on closure consistency, so final-seat sealing may vary with installation and system pressure.
• Standard port bore is slightly under 1in, so it is not a true full-port valve for maximum flow applications.

Specifications

Body material	Brass
Thread type	1in NPT
Port size	Standard port (bore slightly under 1in)
Operating voltage	9-24V AC/DC
Actuation time	3-5 seconds
Cycle life	Approximately 80,000-100,000 cycles
Wiring	2 wire automatic return setup

Our Verdict

The U.S. Solid motorized 1in ball valve is a practical choice for DIY automation, small farms, and aquarium systems where a durable brass valve and a safe, low-heat actuator are priorities. It offers clear value for projects needing a simple two-wire auto-return and reliable long-term cycling, although installers seeking full-port flow or guaranteed closure under every condition should test it in their system first.

Frequently Asked Questions

Does the valve require a special controller?
The valve uses a simple two-wire connection and works across 9-24V AC or DC, so no special controller is required beyond an appropriate power source and switch.

Will it overheat if left open for long periods?
The built-in limit switches largely de-energize the actuator after moving to a fully open or closed position, which reduces heating risk compared with continuous-duty solenoids.

Is the bore a full 1in?
No, this model is a standard-port ball valve: the bore is slightly under 1in to balance flow and compactness.
