Ubertooth One Module PCB Antenna Analyzer 2.4 GHz - High Sensitivity

In this review the Ubertooth One Module PCB Antenna Analyzer is presented for developers and experimenters who need an affordable, open hardware receiver for 2.4 GHz Bluetooth work. The review highlights that the module's biggest selling point is its combination of Class 1 comparable transmit power and receiving sensitivity with open connectors for debugging and expansion, making it useful for hands-on Bluetooth experiments and wireless development rather than plug-and-play consumer use. It is best suited to people comfortable with PCB hardware and open source toolchains.

Key Features

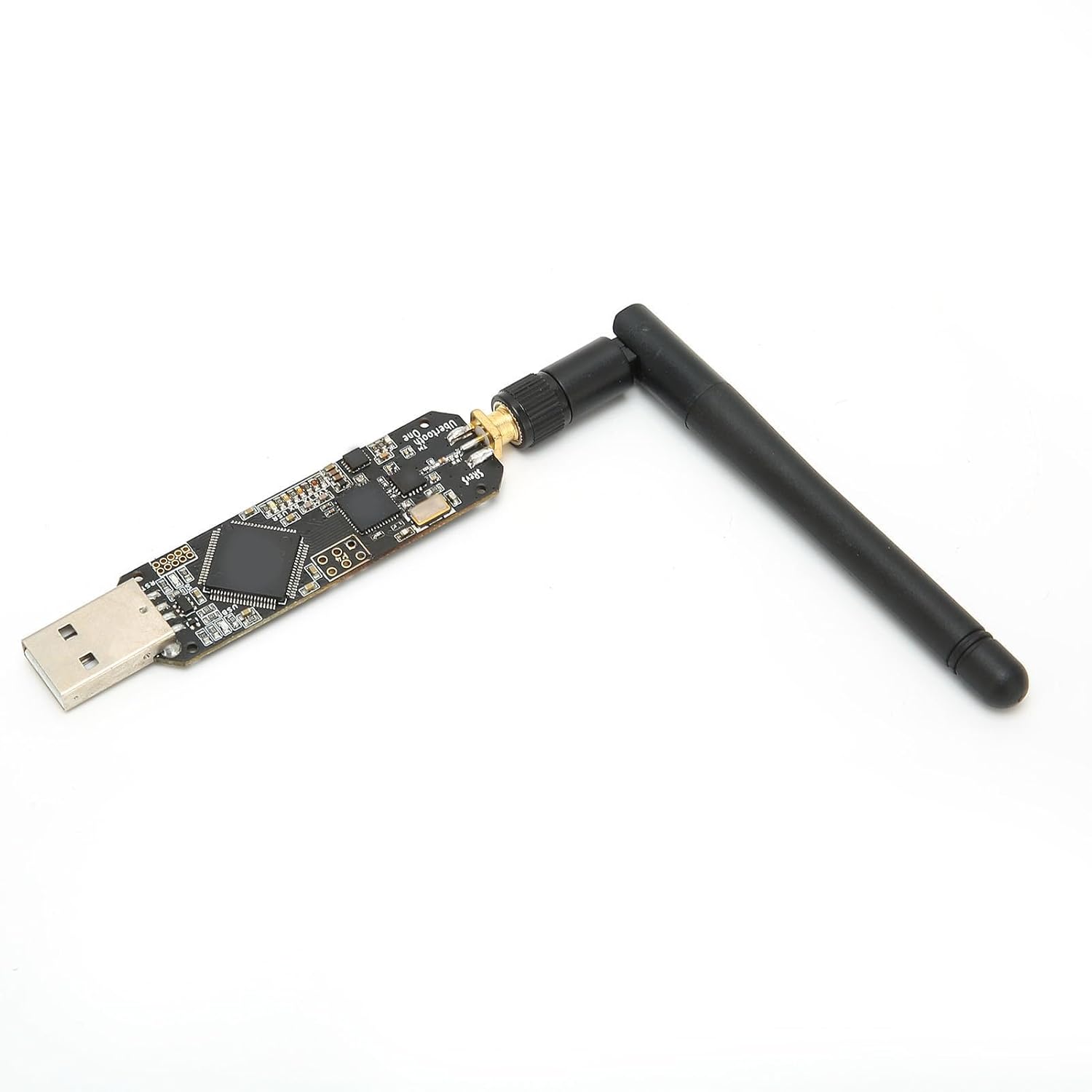

• High sensitivity receiver: Transmit power and receiving sensitivity comparable to Class 1 Bluetooth devices allow longer range and more reliable packet capture for experiments.
• Standard Cortex debug connector: The wireless receiver uses a 10pin 50 Mil JTAG connector so developers can attach common Cortex debug tools for firmware work and low-level inspection.
• ISP serial programming: The 2.4 GHz receiver includes an insystem programming serial connector for updating or modifying firmware without removing the module from a project.
• Expansion connector: Designed for Ubertooth communication or future uses, the expansion header makes it straightforward to add sensors or interface with other boards.
• Open source design files: Schematic and circuit board files are available in the source codes package for those who want to inspect or modify the hardware design.

Who It's For

The Ubertooth One Module is aimed at hardware hackers, wireless researchers and hobbyists building or testing Bluetooth and other 2.4 GHz protocols. It fits projects where direct access to debug and programming headers matters, and where the user intends to work with open source EDA files and toolchains.

It is not aimed at casual consumers who want a turnkey Bluetooth sniffer; someone seeking a polished, ready-to-use commercial product with bundled software and support should consider commercial analyzers instead.

Pros & Cons

Pros

• Good sensitivity and transmit power comparable to Class 1 Bluetooth, helpful for longer-range testing.
• Standard 10pin Cortex debug connector eases integration with mainstream debug probes.
• Insystem programming serial connector simplifies firmware updates and development cycles.
• Open source schematic and board files let experienced users audit and modify the design.

Cons

• Not a plug-and-play consumer tool; requires familiarity with hardware debugging and open source EDA software.
• Limited to 2.4 GHz applications and dependent on external tooling and software to realize full capability.

Specifications

Product Type	Ubertooth One Module
Material	PCB
Frequency	2.4 GHz
Connectors	10pin 50 Mil JTAG Cortex debug, ISP serial
Package	1 x Antenna, 1 x Receiver
Expandable	Expansion connector for Ubertooth communication or future uses

Our Verdict

The Ubertooth One Module is a practical, reasonably priced option for developers and wireless researchers who need a 2.4 GHz receiver with strong sensitivity and open hardware access. It delivers value when paired with debugging tools and a willingness to work with open source EDA and firmware, but is not targeted at users seeking a consumer-ready analyzer.

Frequently Asked Questions

Is this module ready to use out of the box?
The module includes antenna and receiver but requires tooling and firmware work to use effectively; it is intended for development and experimentation.

Can I program the module directly?
Yes, it provides an insystem programming serial connector and a standard Cortex 10pin JTAG debug connector for firmware updates and debugging.

Are the design files available?
Yes, schematic and circuit board design files are included in the source codes package and require open source EDA software to open.
