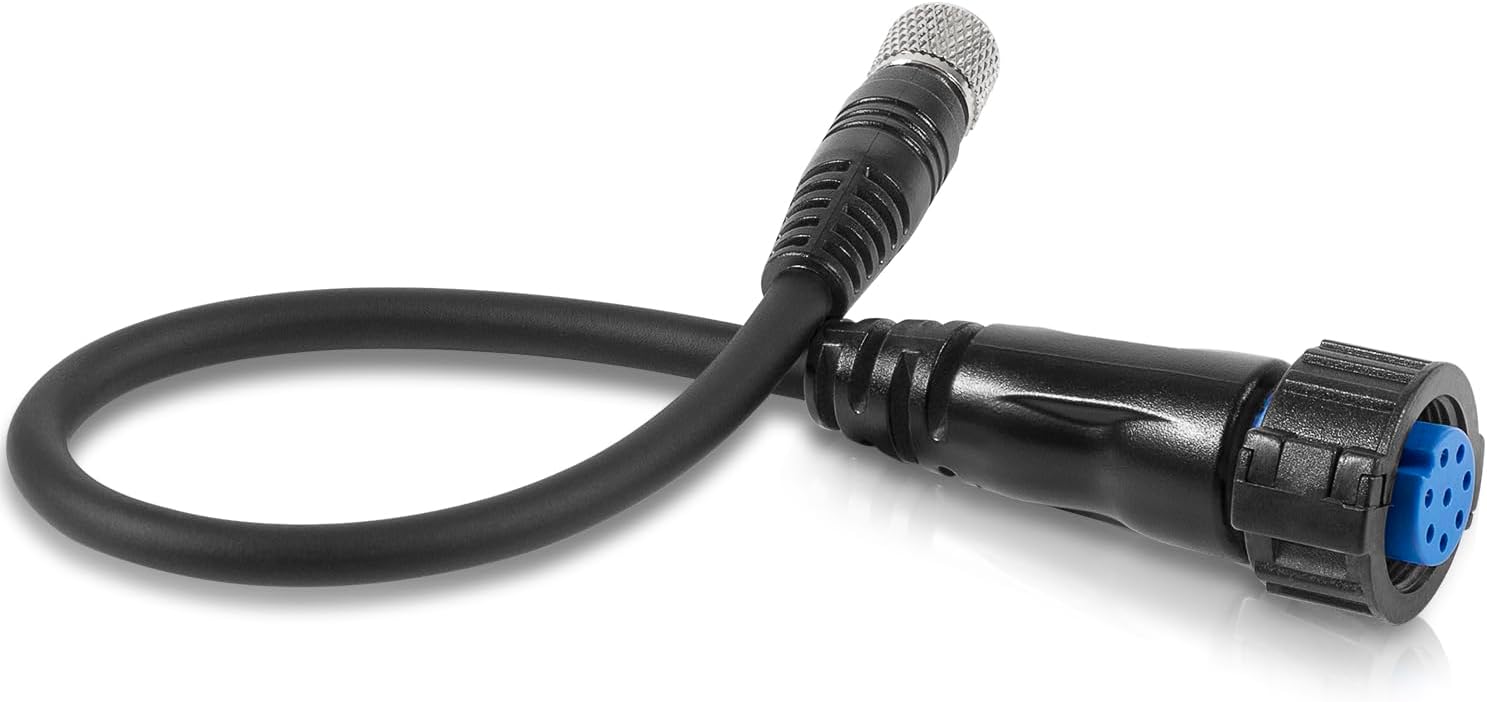

Universal Sonar 2 Adapter Cable for Garmin ECHOMAP and GPSMAP

In this review the 1852074 MKR-US2-14 Universal Sonar 2 adapter cable is assessed for anglers and boaters who want to pair a trolling motor transducer with Garmin echoMAP or GPSMAP chartplotters and fishfinders. The bottom line: it is a straightforward, rugged cable that delivers reliable connectivity and unlocks LiveScope-style real-time imaging with minimal fuss. For anyone running a motor with US2 technology and a compatible 8-pin Garmin unit, this adapter is the practical bridge that brings high-resolution underwater imaging together with trolling motor transducers.

Key Features

• Seamless Integration: Enables the trolling motor transducer to communicate with echoMAP and GPSMAP units so users can view live sonar and chartplotter information simultaneously.
• LiveScope Compatibility: Connects motors equipped with US2 technology to fishfinders that support LiveScope, allowing real-time detailed underwater imaging.
• Shielded Connectors: Metal-tipped, shielded connectors reduce sonar interference for cleaner signal and clearer returns.
• Waterproof Rating: IP68-rated waterproofing and a PVC outer jacket help the cable withstand wet marine conditions and resist wear.
• Low-loss Conductors: Oxygen-free copper inner conductor and dual-layer shielding lower signal transmission loss and reduce electromagnetic interference.
• Plug-and-Play Design: Simple installation requires no complex wiring or modifications, making setup quick on most boats.

Who It's For

This adapter is best for anglers who use trolling motors with US2 technology and own an 8-pin Garmin echoMAP or GPSMAP chartplotter or fishfinder and want to enable live imaging from their motor-mounted transducer. It suits users who value a reliable physical connection and expect durable, waterproof cabling for frequent on-water use.

It is not aimed at boaters using non-US2 motors, non-8-pin chartplotters, or the specific echoMAP 93SV model which is known to be incompatible; those users should check compatibility or seek a different cable tailored to their unit. Installers who need custom lengths or adapters beyond the supplied configuration should consider other options.

Pros & Cons

Pros

• Solid physical integration between trolling motor transducer and Garmin chartplotters for LiveScope-style imaging.
• Durable PVC jacket and IP68 waterproof rating make it dependable in marine environments.
• Shielded, metal-tipped connectors and oxygen-free copper conductors reduce interference and signal loss.
• Plug-and-play setup keeps installation simple without major rewiring.

Cons

• Not compatible with every Garmin model; echoMAP 93SV is specifically noted as incompatible.
• Fixed cable type may not suit users who need custom lengths or unusual routing options.

Specifications

Product	1852074 MKR-US2-14 Universal Sonar 2 Adapter Cable
Connector	8-pin metal-tipped shielded connector
Compatibility	Motors with US2 technology to most 8-pin Garmin echoMAP/GPSMAP units
Waterproof Rating	IP68
Outer Jacket	PVC, wear-resistant and waterproof
Conductor	High-purity oxygen-free copper with dual-layer shielding
Frequencies	Compatible with 200 kHz and 83 kHz sonar frequencies

Our Verdict

The Universal Sonar 2 adapter cable is a practical, value-minded accessory for anglers who need a dependable connection between US2 trolling motors and compatible Garmin chartplotters. Its rugged construction, waterproofing, and shielded connectors make it a sensible choice for regular on-water use, provided your chartplotter is supported. For most users seeking straightforward LiveScope integration without complicated wiring, this cable delivers reliable performance and good durability.

Frequently Asked Questions

Will this cable work with all Garmin 8-pin units?
Most 8-pin Garmin models are supported, but the echoMAP 93SV is a known exception; confirm your model before purchasing.

Is the cable waterproof enough for boating use?
Yes, the cable is IP68-rated and has a PVC outer jacket to resist water and wear in marine environments.

Does installation require wiring changes?
No, the adapter is designed for plug-and-play installation and typically requires no complex wiring or modifications.
