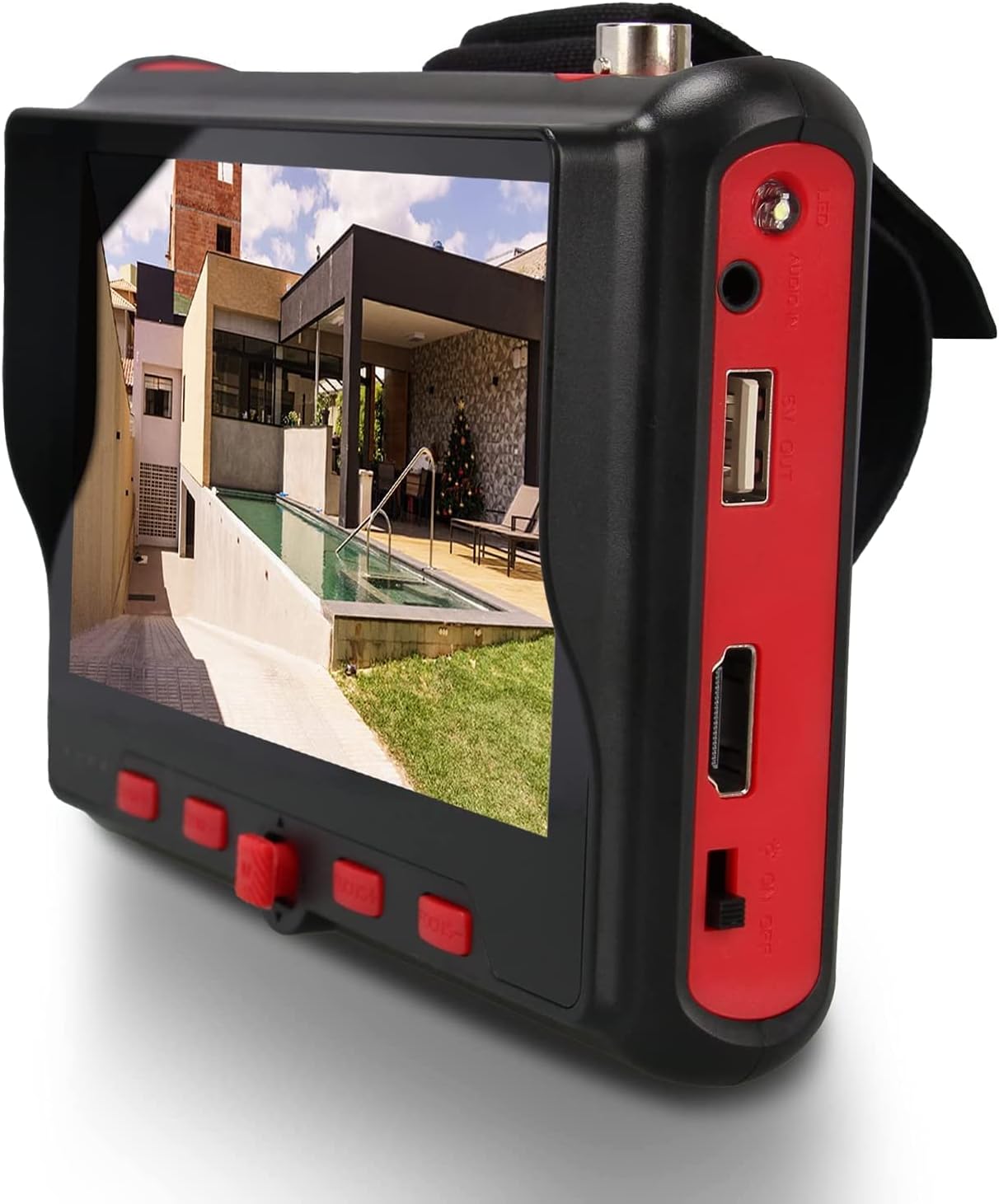

Upgrade Portable Wrist CCTV Tester 5in LCD Monitor - Camera Debugging

In this review the Upgrade Portable Wrist CCTV Tester is judged as a practical field tool for installers and technicians who need a compact, all-in-one camera debugging helper. The tester's single biggest advantage is its ability to handle multiple analog and hybrid camera standards on a crisp 5in screen, making on-site alignment and PTZ setup faster than carrying separate adapters and monitors. For anyone who works with coaxial AHD/CVI/TVI/CVBS cameras and needs UTC/PTZ control, this tester simplifies diagnosis and configuration.

Key Features

• 5in 800x480 screen: The portable display provides a clear picture for focusing and framing without lugging a full-size monitor.
• Hybrid camera support: It tests and debugs coaxial 720P up to 8MP AHD, CVI, TVI and traditional CVBS cameras so technicians can work across legacy and newer analog formats.
• PTZ control over RS485: Compatible with PELCO-D and PELCO-P and multiple baud rates to zoom, focus and run continuous rotation checks on PTZ heads.
• UTC camera menu control: The UTC feature lets installers access and change camera menus directly from the tester, speeding configuration without a separate remote.
• HDMI and VGA inputs: Accepts common resolutions up to 1920x1080 60Hz, so the unit can also act as a small field display for other video sources.
• Power and port utility: USB 2.0 provides 5V/1A emergency output and the tester offers DC 12V/1A camera power for quick field powering.

Who It's For

The tester is aimed at CCTV installers, security technicians and maintenance professionals who routinely work with coaxial analog and hybrid cameras and need a compact unit for alignment, PTZ and UTC menu access. Its portability and built-in power outputs make it convenient for single-person installs and quick troubleshooting on ladders or rooftops.

It is not intended for IP camera networks or SDI workflows, so users who rely exclusively on those technologies should look for a dedicated IP test tool. Also, if you need large-screen or multi-camera simultaneous viewing, a larger monitor or recorder would be a better fit.

Pros & Cons

Pros

• Combines screen, power output and UTC/PTZ control in one lightweight device for faster field work.
• Supports a wide range of coaxial resolutions from 720P to 8MP, covering many hybrid analog cameras.
• HDMI and VGA inputs increase flexibility to view other video sources or to use the tester as a small monitor.

Cons

• Does not support IP or SDI cameras, so it is not a universal tester for all CCTV systems.
• The 5in 800x480 screen can be limiting in very bright outdoor conditions compared with larger monitors.

Specifications

Screen	5in 800x480 resolution
Video formats	AHD/CVI/TVI/CVBS (coaxial hybrid support)
PTZ	RS485 with PELCO-D / PELCO-P, baud 2400-19200
Inputs	HDMI and VGA (supports up to 1920x1080 60Hz)
Power output	DC 12V/1A camera power; USB 2.0 5V/1A emergency
UTC	On-screen UTC menu access via M and directional keys
Cable test	UTP and BNC cable connection status display

Our Verdict

The Upgrade Portable Wrist CCTV Tester is a solid, cost-effective field tool for technicians who work with coaxial hybrid cameras and need on-site PTZ and UTC control in a compact package. It removes several accessories from the toolkit by combining a usable 5in display, power output and protocol support, offering real value for installers who do not require IP or SDI compatibility.

Frequently Asked Questions

Can this tester power a camera?
Yes, it provides a DC 12V/1A power output to run a camera directly from the tester during setup.

Does it work with IP cameras?
No, the unit supports coaxial analog and hybrid formats (AHD/CVI/TVI/CVBS) but does not support IP or SDI cameras.

Can it control PTZ functions?
Yes, it supports RS485 PTZ control and common protocols like PELCO-D and PELCO-P with multiple baud rates.
