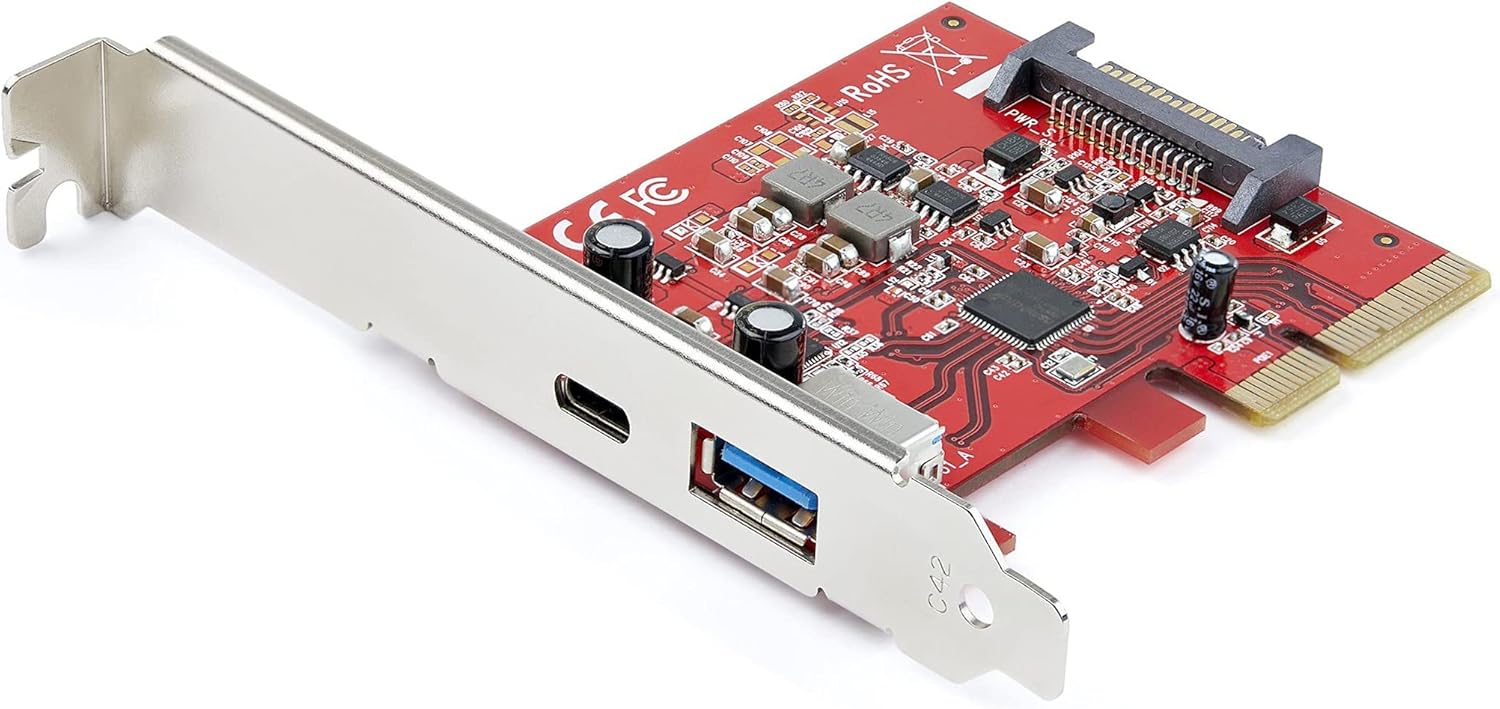

USB 3.2 Gen 2 PCIe Card - 2-Port USB-A & USB-C 10Gbps

In this review of the USB 3.2 Gen 2 PCIe card, the bottom line is simple: it is for users who need reliable, full-speed 10Gbps USB ports added to a desktop or server. The card provides one USB-C and one USB-A port and maintains high throughput even when mixed-speed devices are attached, making it a practical upgrade for creatives, backup rigs, and workstation owners. Installation is straightforward into a full or low-profile PCIe x4 slot, and the card includes supplemental SATA power for devices that need extra current, which is the single biggest reason to consider it.

Key Features

• Dual 10Gbps ports: Two independent USB 3.2 Gen 2 ports deliver up to 10Gbps per port so transfers remain fast for large files and external drives.
• USB-A and USB-C: The mix of one USB-A and one USB-C port lets you connect legacy devices and modern peripherals without adapters.
• Maintains bandwidth: The controller supports multiple INs and preserves optimal throughput even when devices with different speeds are connected.
• Supplemental power: A SATA power connector supplies up to 5V 3A/15W on the USB-C port and 5V 0.9A/4.5W on the USB-A port when motherboard power is insufficient.
• UASP support: USB Attached SCSI Protocol improves performance with external storage like SSDs and HDDs for faster transfers and lower CPU overhead.
• Cross-platform drivers: Works with Windows, macOS, and Linux with automatic driver installation on modern Windows releases for quick setup.

Who It's For

This card is best for content creators, IT professionals, and enthusiasts who need additional high-bandwidth USB ports for fast external storage, backups, or high-speed peripherals. Anyone upgrading an older desktop to handle modern USB-C devices without replacing the motherboard will find this a cost-effective solution.

It is not aimed at laptop users or those who lack an available PCIe slot. Also, systems limited to PCIe 2.0 will run the card but at reduced throughput, so users expecting full 10Gbps performance should install it in a PCIe 3.0 x4 or better slot.

Pros & Cons

Pros

• Provides true 10Gbps per port for high-throughput external storage and large file transfers.
• Includes both USB-C and USB-A ports for broad device compatibility without adapters.
• Supplemental SATA power supports power-hungry devices and helps maintain stable power delivery.
• UASP support improves transfer efficiency with supported external drives.

Cons

• Performance depends on PCIe slot generation; PCIe 2.0 hosts will limit throughput compared with PCIe 3.0.
• Requires an open PCIe slot and internal SATA power cable, so not suitable for many laptops or compact systems without space.

Specifications

Interface	PCI Express x4 (installs in full or low-profile slot)
USB ports	1x USB-C, 1x USB-A
Maximum speed	10Gbps per port (USB 3.2 Gen 2 / USB 3.1 Gen 2)
Power	SATA supplemental power; USB-C up to 5V 3A/15W, USB-A 5V 0.9A/4.5W
Protocol support	UASP for optimized external storage performance
OS compatibility	Windows (auto install on Windows 8 and up), macOS, Linux

Our Verdict

The USB 3.2 Gen 2 PCIe card is a practical, value-minded upgrade for desktops and servers that need reliable 10Gbps USB ports. It combines a useful pair of USB-C and USB-A connectors, supplemental power for demanding peripherals, and UASP support for efficient storage transfers, making it a strong choice for creators and IT users who want high-speed external connectivity without replacing the system board.

Frequently Asked Questions

Will this card work in a PCIe 2.0 slot?
Yes, it will function in a PCIe 2.0 slot but throughput will be reduced compared with PCIe 3.0 x4.

Do I need to connect SATA power?
If your motherboard cannot supply enough current to the USB ports under load, connecting the SATA supplemental power is recommended to ensure stable power delivery.

Does it require drivers?
Windows 8 and newer will auto-install drivers in most cases; macOS and Linux are supported as well.
