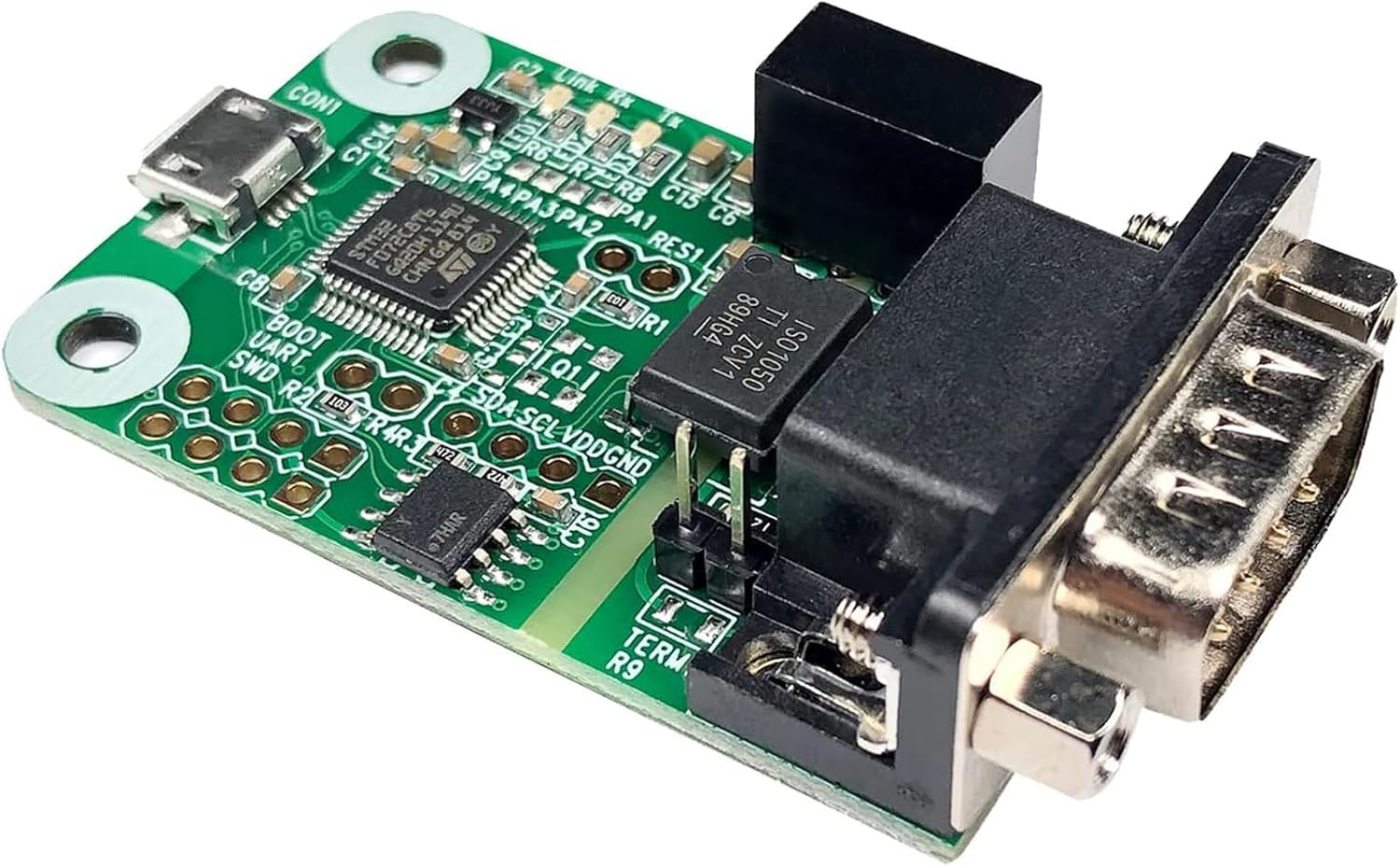

USB CAN Converter Module for Raspberry Pi and Single Board Computers

In this review of the USB CAN Converter Module, the bottom line is straightforward: this small interface is for makers, embedded developers and engineers who need a hassle-free USB-to-CAN bridge that works across Raspberry Pi series, Jetson Nano, Tinker Board and typical desktops or laptops. The single biggest reason to buy is its broad compatibility and true plug-and-play behavior across Windows, Mac OS, Linux and Raspbian, eliminating driver headaches while offering isolation and selectable termination for safer bench and field work.

Key Features

• Wide compatibility: Works with Raspberry Pi 5/4/3B+/3/Zero(W), Jetson Nano, Tinker Board and most single board computers for flexible deployment.
• Cross-platform support: Functions on Windows, Mac OS, Linux, Raspbian (v5.4 kernel), Ubuntu, Android and Venus OS so development environment choices are preserved.
• Plug-and-play USB: No external power is required and the device enumerates as a CAN interface without complex setup on default Linux distributions.
• Adjustable baud rate: CAN speed is programmable from 20 Kbps to 1 Mbps, letting it match a wide range of vehicle and industrial networks.
• Electrical protection: 3000V voltage isolation and 2500V ESD protection on signal pins reduce risk when connecting to live buses.
• Selectable termination: A 120 ohm resistor jumper simplifies adding or removing the CAN bus termination without extra parts.

Who It's For

This module is aimed at hobbyists and professionals who work with CAN bus systems and prefer small, portable interfaces that integrate directly with single board computers and typical laptops. It is well suited to developers using Socket-CAN on Linux, students experimenting with in-vehicle networks, and test bench setups where isolation and a compact footprint matter.

Those who should look elsewhere include users who need automotive-grade, certified CAN analyzers with vendor support contracts or tools that provide commercial GUIs and reporting out of the box; this module is a compact developer tool rather than a full test system with bundled enterprise software.

Pros & Cons

Pros

• Broad platform support makes it useful across Linux, Mac and Windows development machines.
• Good electrical protection with 3000V isolation and 2500V ESD guards against common fault conditions.
• Plug-and-play operation on many Linux distributions means minimal setup for Socket-CAN users.
• Programmable baud range and selectable 120 ohm termination offer flexibility for different CAN networks.

Cons

• Documentation can be terse; some users may need to refer to example code or community guides for advanced setup.
• Not a full commercial analyzer with built-in GUI tools, so extra software or scripting is required for complex logging.

Specifications

Interface	USB to CAN
Supported hosts	Raspberry Pi series, Jetson Nano, Tinker Board, desktops, laptops
OS support	Windows, Mac OS, Linux, Raspbian (v5.4), Ubuntu, Android, Venus OS
CAN standard	CAN 2.0A and 2.0B
Baud rate	20 Kbps to 1 Mbps (programmable)
Isolation & protection	3000V voltage isolation, 2500V ESD on signal pins
Termination	120 ohm selectable jumper

Our Verdict

The USB CAN Converter Module is a compact, wellprotected and broadly compatible interface that delivers real value for embedded developers and makers who need a straightforward CAN bridge. Its plug-and-play behavior on Linux and cross-platform drivers, combined with isolation and selectable termination, make it a practical tool for bench work and light field diagnostics.

Frequently Asked Questions

Will this work with Raspberry Pi and Socket-CAN?
Yes, it supports Raspbian with Socket-CAN and ships with C/Python source so it integrates with Linux CAN tools.

Does it require external power?
No, the converter is powered via USB and does not need an external supply.

Is the device safe to connect to live CAN buses?
It includes 3000V isolation and 2500V ESD protection on signal pins to help protect connected equipment and the host.
