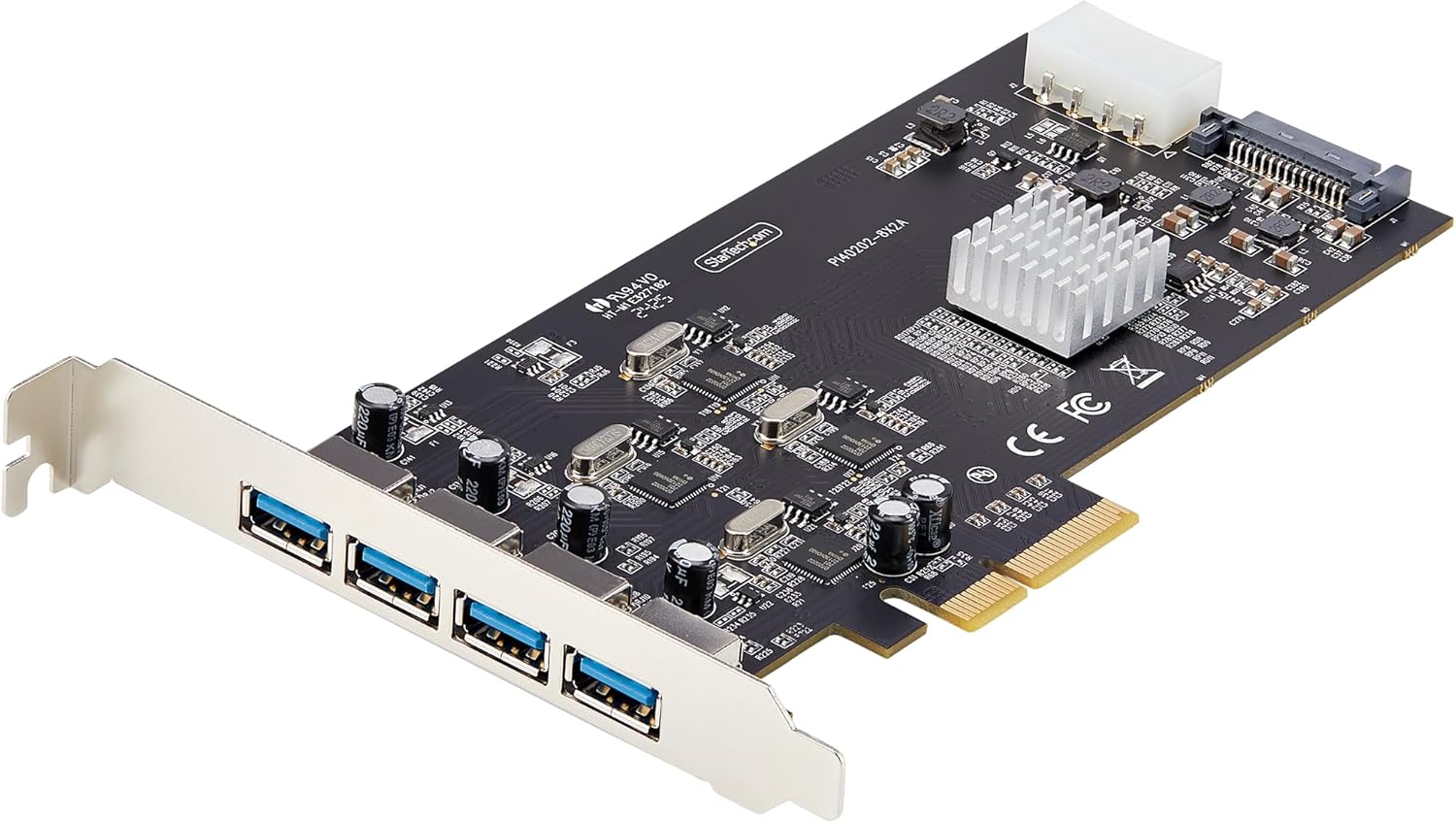

USB PCIe Card 4-Port USB 3.2 5Gbps - Dedicated Controllers for High

In this review the StarTech 4-Port USB PCIe card is evaluated for users who need reliable, high-bandwidth external connectivity on a desktop or server. The single biggest reason to buy is its use of 4 independent USB controllers, which keeps each USB Type-A port at up to 5Gbps instead of forcing devices to share one bus. For creatives, audio engineers, and anyone moving large files between multiple external drives, this card is an immediately useful upgrade that reduces the common bottleneck found in single-controller PCIe USB cards.

Key Features

• Independent Controllers: Each port has a dedicated controller so multiple devices can transfer large files simultaneously without bandwidth contention.
• USB 3.2 Gen 1 5Gbps: Provides up to 5Gbps per port for fast transfers to external storage and media devices.
• SATA/LP4 Supplemental Power: Optional SATA or LP4 power input supplies additional current when motherboard bus power is insufficient, improving reliability under load.
• Horizontal Ports: Ports are laid out horizontally to better fit a wider range of computer cases and cable orientations, reducing clearance issues.
• Wide Compatibility: Drivers auto-install on most major operating systems and the card works in any PCI Express 2.0 x4, x8, or x16 slot on Intel and AMD systems.

Who It's For

The card is best for content creators, audio producers, and IT technicians who regularly connect multiple high-speed USB devices such as external SSDs, audio interfaces, and capture devices. Its design specifically benefits workflows where simultaneous transfers or sustained throughput are important.

Casual users who only connect one or two USB devices or who rely mostly on front-panel case ports may not need this level of expansion. Also, those with small form factor systems should verify internal power connector availability and physical clearance before purchasing.

Pros & Cons

Pros

• True per-port bandwidth thanks to four independent controllers, which minimizes performance bottlenecks.
• Supplemental SATA/LP4 power support provides stable power for bus-hungry devices and supports Battery Charging specifications.
• Horizontal USB-A ports improve compatibility with different case layouts and cable types.
• Plug-and-play drivers on modern Windows and Linux systems simplify installation for most users.

Cons

• Requires an available PCI Express 2.0 x4 or larger slot and may need a spare SATA or LP4 power cable for full power to all ports.

Specifications

Interface	PCI Express 2.0 x4 (works in x4, x8, x16)
USB Ports	4 x USB Type-A
Max Per-Port Bandwidth	Up to 5Gbps per port (USB 3.2 Gen 1)
Power Options	SATA or LP4 supplemental power connector
Power per Port	Supports Battery Charging 1.2 and up to 5V 2A (10W) per port with supplemental power
Compatibility	Windows 8 and up, Linux; Intel and AMD platforms

Our Verdict

This PCIe USB expansion card is a practical upgrade for professionals who need dependable, simultaneous high-speed connections to multiple external devices. The dedicated controllers and supplemental power support make it especially good value for users moving large files or running multiple audio interfaces, while the straightforward compatibility keeps installation simple on most modern desktops and servers.

Frequently Asked Questions

Will this card work in my desktop?
Yes, it requires a free PCI Express 2.0 x4 or larger slot and will function in x4, x8, or x16 slots on Intel and AMD motherboards.

Do I need the SATA or LP4 power cable?
Not always; the card can draw bus power, but supplemental SATA or LP4 power is recommended when using multiple bus-powered devices to ensure stable current and higher charging rates.

Are drivers required?
Drivers auto-install in most major operating systems including Windows 8 and later and many Linux distributions, making the card largely plug-and-play.
