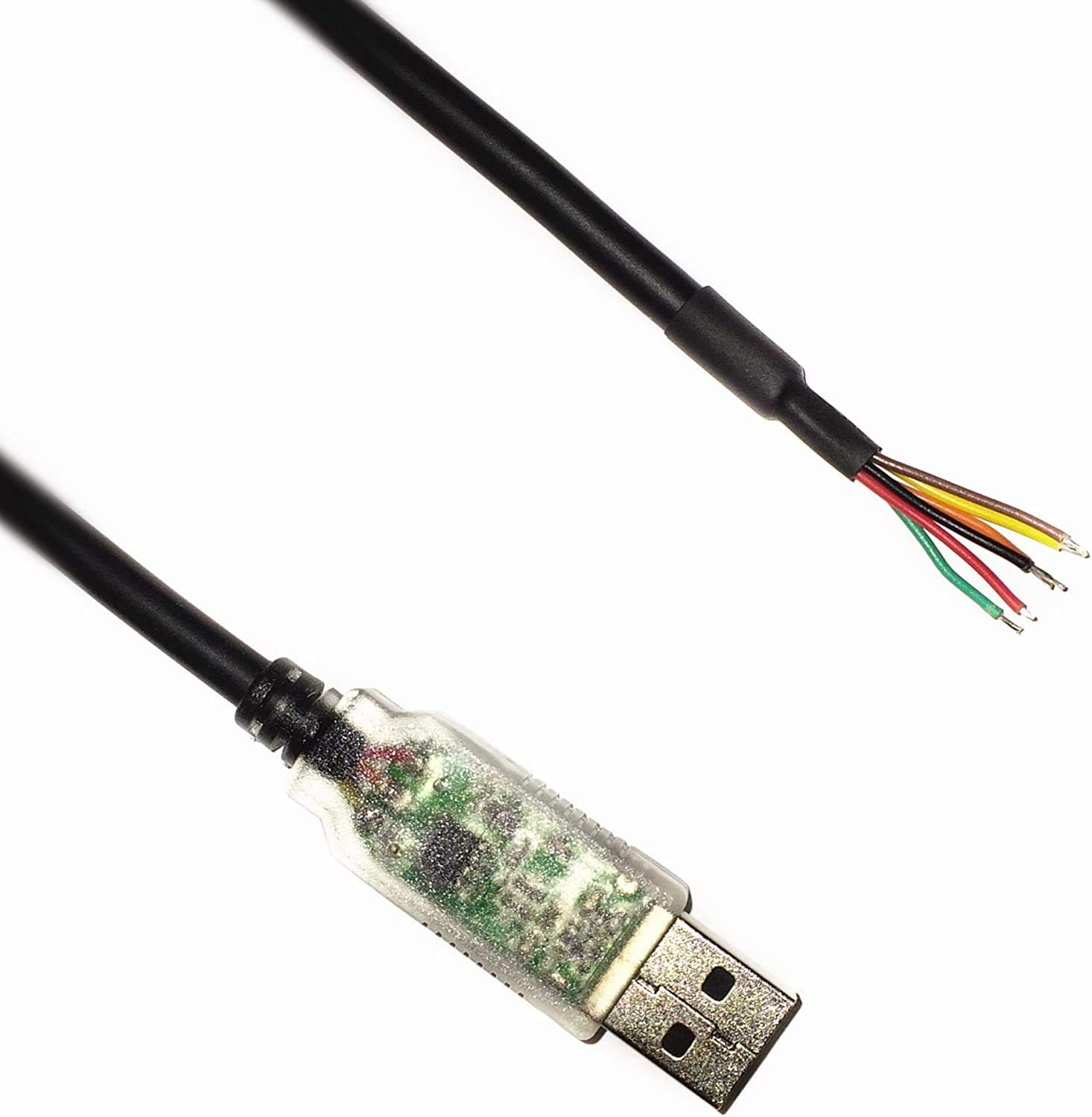

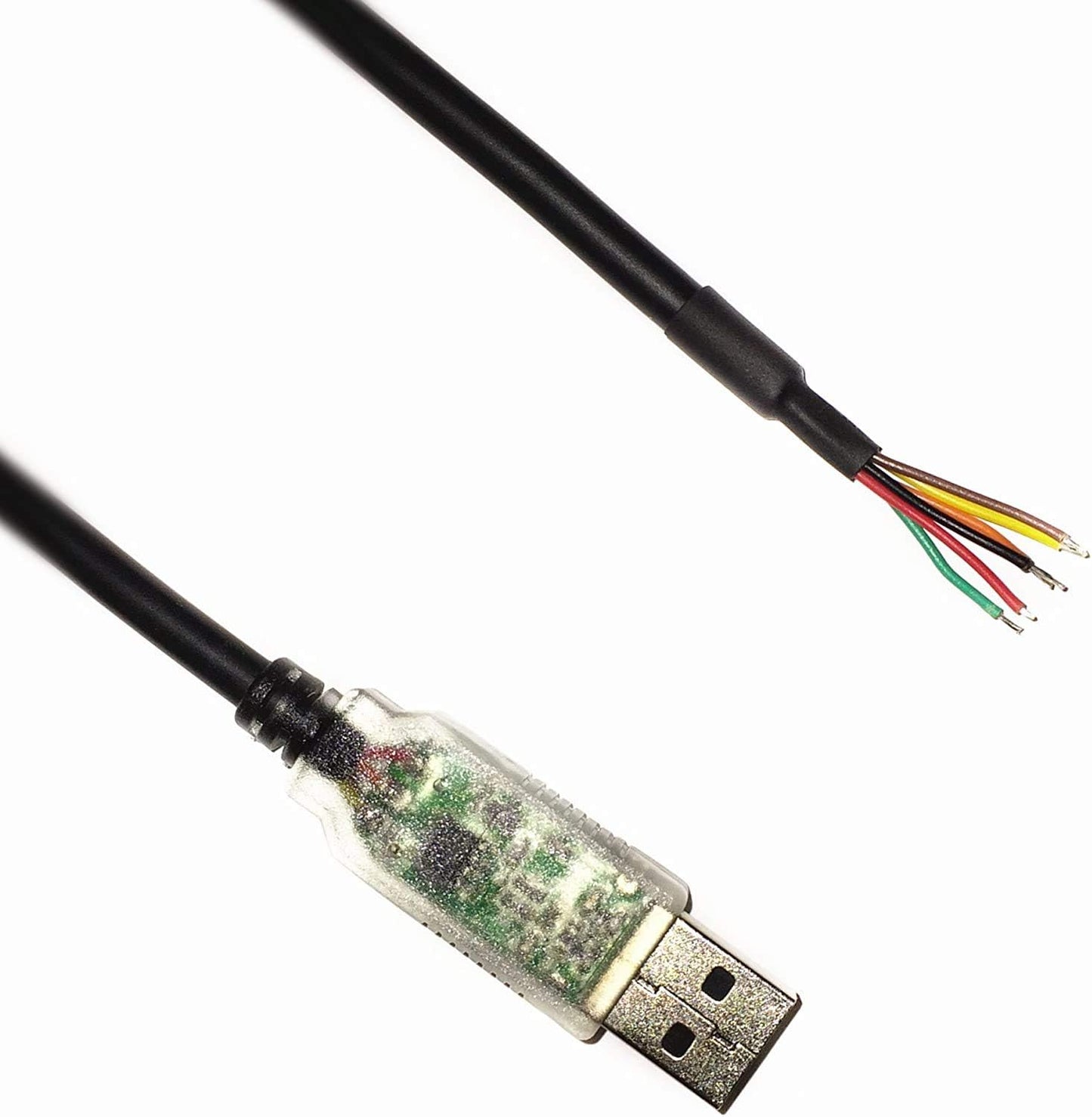

USB to RS485 Serial Converter Cable with TX/RX LEDs - 1.5m

In this review of the USB to RS485 Serial Converter Cable with TX/RX LEDs, the bottom line is simple: this cable is for anyone who needs a robust, plug-and-play way to connect RS485 devices to a modern computer. The reviewer found it especially useful for connecting equipment like solar inverters and industrial sensors where a true RS485 interface is required. The cable handles all USB signaling in its overmolded electronics, so installation is straightforward and reliable on both Windows and Mac systems.

Key Features

• RS485 compatibility: Provides an exclusive EIA/TIA-485 interface so devices that require RS485 levels communicate correctly without manual level shifting.
• Integrated converter chipset: The overmolded electronics manage all USB to serial translation for simple plug-and-play use on supported operating systems.
• Visible traffic LEDs: Transparent USB connector with power and Tx/Rx LED indicators helps diagnose connection and data activity at a glance.
• Custom wire end: Six color-coded output wires and a 120 ohm terminator resistor simplify wiring to typical RS485 devices and reduce installation errors.
• Durable construction: Industrial-grade cable construction and overmolded chipset give the cable a lasting physical build for repeated use and tight spaces.
• Cross-platform support: Compatible with current Windows and Mac operating systems for broad workstation compatibility.

Who It's For

This cable is aimed at technicians, integrators, and hobbyists who need a reliable USB to RS485 link for field equipment such as inverters, PLCs, meters, and sensors. It's particularly handy for installations where a quick, visible confirmation of power and traffic is helpful, and where a pre-terminated wire end speeds up connection.

It is not intended for devices that require RS422 or mixed RS422/RS485 support; users needing both protocols should consider alternative models from the same brand. If you need very long runs beyond typical serial practice, choose a dedicated transceiver or repeater suited for long-distance RS485 networks.

Pros & Cons

Pros

• Works reliably for RS485 equipment and is reported to connect readily to devices like solar inverters.
• LED indicators on the USB connector make troubleshooting simple when installing in tight spaces.
• Overmolded chipset handles all USB signaling so the cable is largely plug-and-play on Windows and Mac.
• Six color-coded leads and built-in 120 ohm terminator simplify correct wiring and termination.

Cons

• Exclusively supports RS485 protocol, so it is not suitable for users who need RS422 compatibility.
• Fixed wire end requires termination to the specific device wiring; some users may prefer removable terminals or screw connectors.

Specifications

Protocol	RS485 (EIA/TIA-485)
Cable length	1.5 m (6 ft)
Wire construction	6 wires, 0.16 mm x7 strands each
Connectors	USB A transparent connector with TX/RX LEDs and wire end with color-coded leads
Built-in components	Overmolded USB to serial chipset and 120 ohm resistor between terminator leads
Compatibility	Windows and Mac operating systems

Our Verdict

The USB to RS485 Serial Converter Cable is a practical, durable adapter for anyone who needs a reliable RS485 connection without fiddling with separate converters or level shifters. Its built-in chipset, clear LEDs, and pre-wired leads make installation fast and dependable, offering good value for technicians and integrators who work with RS485 devices.

Frequently Asked Questions

Will this cable work with RS422 devices?
No. This cable is exclusively compatible with the RS485 protocol; users needing RS422 or mixed support should select a model designed for those protocols.

Does it require drivers?
The overmolded USB chipset handles USB signaling and is broadly compatible with modern Windows and Mac systems; standard drivers are typically provided by the OS or the device vendor.

What wires are included on the end?
The cable includes six color-coded leads: GND (black), Data- (yellow), 5V power (red), Terminator1 (brown), Data+ (orange), and Terminator2 (green), with a 120 ohm resistor between the terminator leads.
