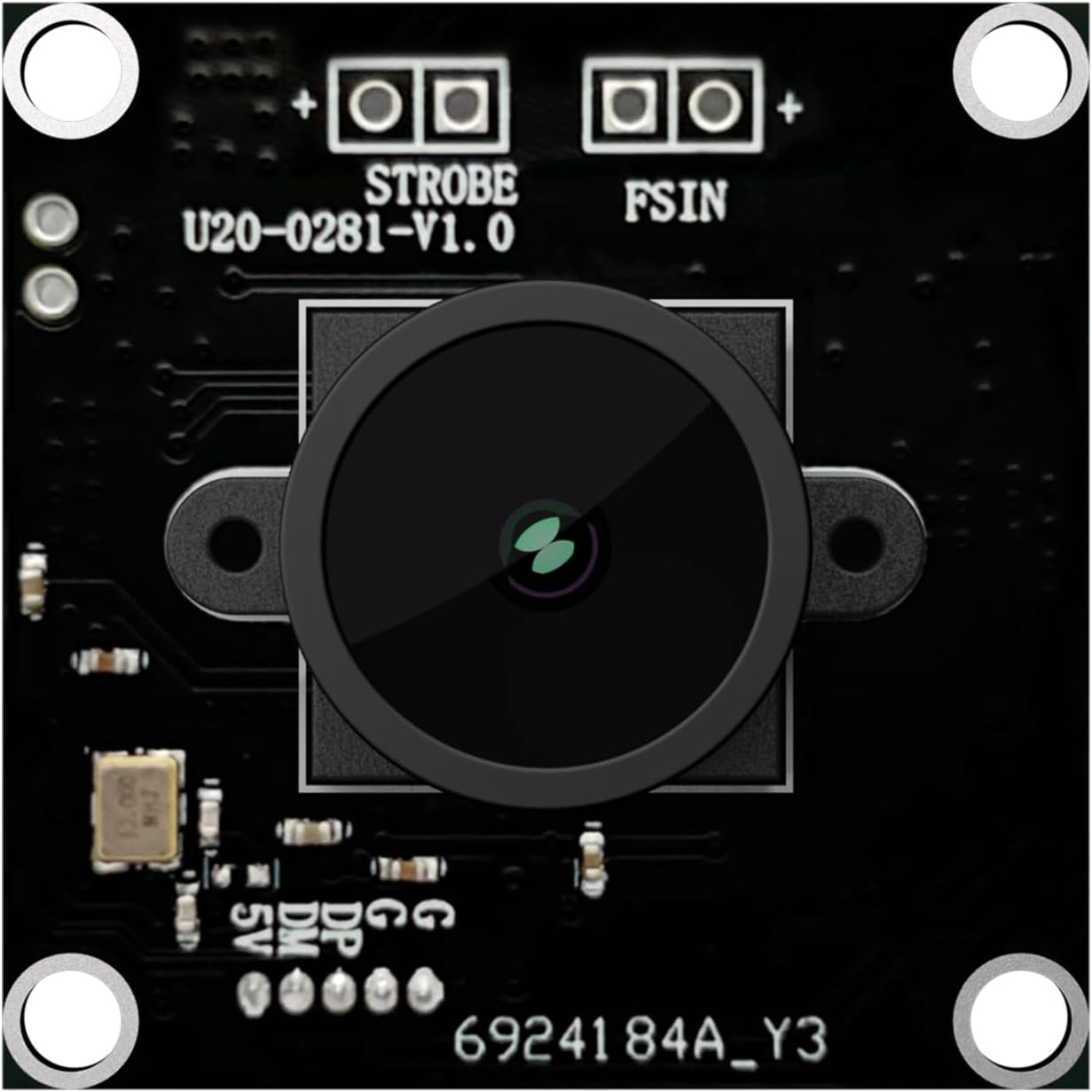

USB2.0 UVC Camera Module OV9281 720p 120fps - Global Shutter

Our review looks at the USB2.0 UVC Camera Module with the OV9281 mono sensor and global shutter, aimed at developers, robotics builders, and machine vision hobbyists who need reliable high-speed imaging. The single biggest reason to consider this module is its combination of a true global shutter and 720p at 120fps, which produces distortion-free frames of fast-moving subjects while remaining plug-and-play across common platforms. It delivers a focused, practical solution for prototyping and light industrial use where timing and image integrity matter.

Key Features

• Global shutter: Captures 720p images at 120fps to avoid motion distortion on fast-moving objects, useful for inspection and robotics.
• OV9281 mono sensor: A 1MP monochrome sensor produces high-contrast imagery that simplifies edge detection and computer vision algorithms.
• UVC compatibility: Works as a plug-and-play UVC camera over USB2.0 and USB3.0 interfaces, making it easy to connect to Windows, Linux, Mac OS, Android, Raspberry Pi, and Jetson Nano.
• External trigger and strobe: Hardware trigger mode and strobe output pins allow precise capture timing and synchronization with external lighting systems.
• 2.0mm header access: Simple header pins for trigger and strobe speed integration and rapid prototyping without soldering to tiny pads.
• Wide M12 lens: A fixed-focus 148-degree M12 lens gives broad coverage for surveillance, mobile robots, or scene monitoring without additional optics.

Who It's For

The module is best for engineers, researchers, and hobbyists building machine vision setups, robotics platforms, or inspection rigs where frame integrity and timing are critical. Its UVC driver support and simple headers make it easy to test on a Raspberry Pi or Jetson Nano during development.

It is less suited for users who need color imaging, extremely high resolution beyond 1MP, or a finished consumer webcam form factor; those users should look for color sensors or higher-resolution modules with integrated housings and autofocus.

Pros & Cons

Pros

• True global shutter and 120fps at 720p produce clean frames of fast motion with minimal distortion.
• Wide compatibility via UVC over USB2.0 and USB3.0 makes it plug-and-play across many operating systems and single-board computers.
• Hardware external trigger and strobe pins enable precise synchronization for lighting and capture control.
• Accessible 2.0mm headers simplify connecting control signals during prototyping.

Cons

• Monochrome 1MP output is ideal for contrast-sensitive tasks but not for color imaging needs.
• Fixed-focus wide lens may not suit applications that require adjustable focus or telephoto views.

Specifications

Sensor	1MP OV9281 mono
Resolution & Frame Rate	720p at 120fps
Shutter	Global shutter
Interface	UVC over USB2.0 / USB3.0
Compatibility	Windows, Linux, Mac OS, Android, Raspberry Pi, Jetson Nano
Trigger / Strobe	External trigger mode and strobe output pins via 2.0mm headers
Lens	Fixed-focus M12, 148 degree field of view

Our Verdict

The USB2.0 UVC Camera Module with OV9281 is a practical, good-value option for developers who need a reliable global shutter camera for motion-critical tasks. It pairs broad platform support with external trigger and strobe control, making it a strong choice for robotics, inspection, and prototyping where mono imaging and timing are priorities.

Frequently Asked Questions

Does it work with Raspberry Pi or Jetson Nano?
Yes, the module uses UVC drivers and is compatible with Raspberry Pi and Jetson Nano for plug-and-play testing and development.

Can it capture color images?
No, the OV9281 is a monochrome sensor; this module is intended for high-contrast and motion-sensitive applications rather than color photography.

Is external synchronization supported?
Yes, hardware external trigger mode and strobe output pins are provided via 2.0mm headers for precise synchronization with lights or other equipment.
