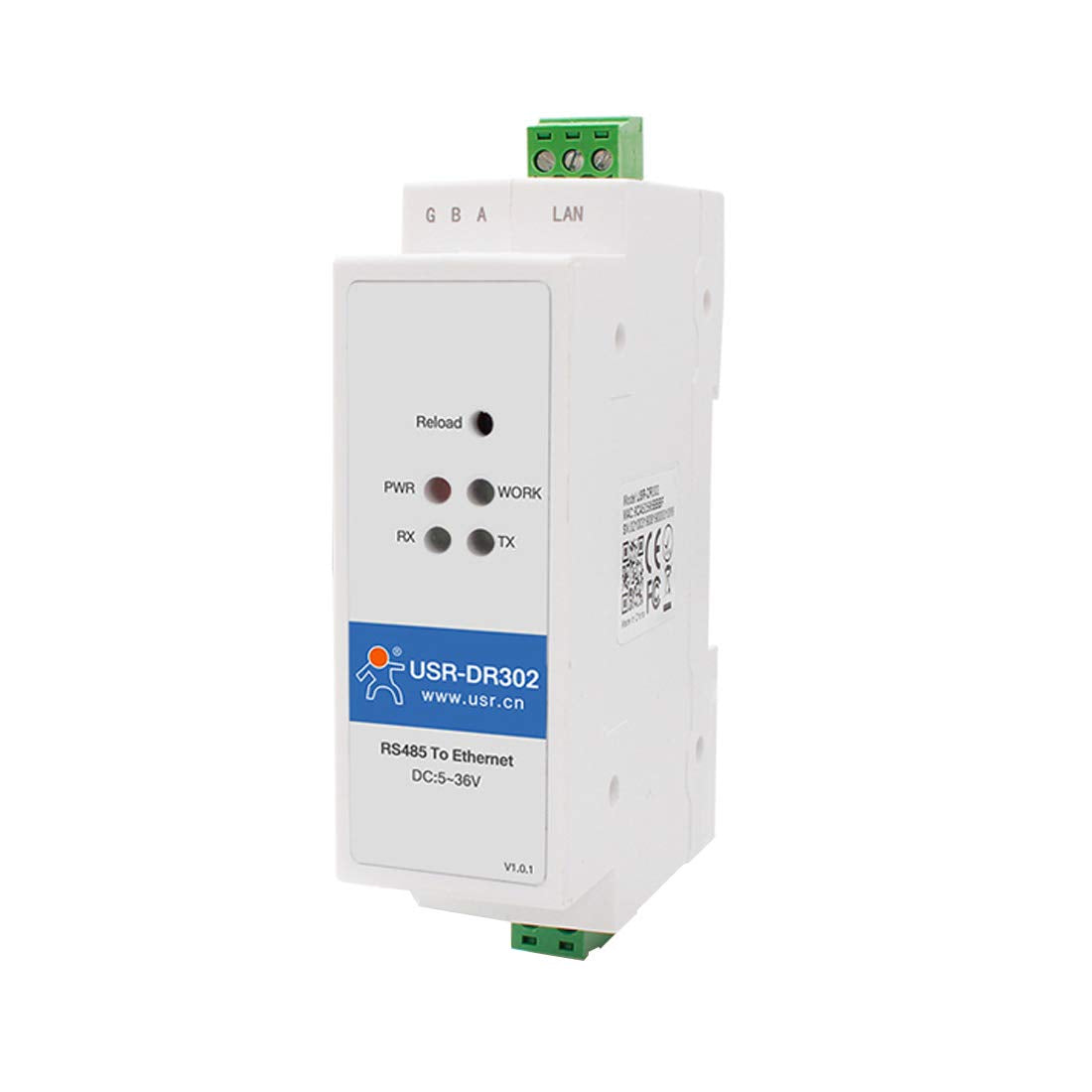

USR-DR302 RS485 to Ethernet Converter - Transparent Serial over TCP/IP

In this review of the USR-DR302 Din-Rail RS485 to Ethernet Converter, the bottom line is simple: it is for technicians and system integrators who need reliable, transparent bridging between Modbus RTU over RS485 and TCP/IP networks. The reviewer found the DR302 best suited where persistent, bi-directional serial tunnels are required and where remote control or monitoring must travel over Ethernet without changing serial payloads. Its transparent transmission, heartbeat identity packet options, and industrial protection levels make it a practical choice for distribution cabinets and remote barrier gate control.

Key Features

• Transparent TCP/IP to RS485: Sends serial data and TCP/IP packets without altering payloads so existing Modbus RTU equipment can operate over Ethernet.
• Multiple working modes: Supports TCP client, TCP server and UDP client modes, giving flexibility for different network topologies and connection strategies.
• Identity heartbeat packet: Can send an IMEI, ICCID or user-defined identity packet when acting as a TCP client to help the server identify devices.
• Industrial protection: Built with antistatic, electrical pulse and overvoltage protection levels suitable for harsher electrical environments.
• Virtual serial support: Works with virtual serial software to let PC applications communicate with networked serial devices as if they were local COM ports.
• Power and data networking: Converts terminal data in distribution boxes to network data for real-time communication and reduced operational costs.

Who It's For

The USR-DR302 is aimed at industrial IT and OT professionals who need a compact DIN-rail RS485 to Ethernet converter for Modbus RTU to Modbus TCP gateway tasks, remote I/O, access control or barrier gate control over an IP network. It is a good fit where a transparent, low-configuration bridge is preferred and where a device needs identity packets for server recognition.

Those who should look elsewhere include users who need built-in Wi-Fi, cellular connectivity, or advanced protocol conversion beyond transparent transmission. For deeply custom protocol translation or where a full-featured gateway with scripting is required, a different product with protocol conversion features would be more suitable.

Pros & Cons

Pros

• Reliable transparent serial-to-Ethernet transfer preserves existing Modbus RTU traffic without reengineering.
• Flexible connection modes (TCP client/server, UDP client) adapt to varied network architectures.
• Identity heartbeat packet is useful for device authentication and monitoring when used as a TCP client.
• Industrial protection levels add robustness for installation in distribution boxes and electrical equipment.

Cons

• Not a protocol converter: it transmits data transparently rather than performing deep Modbus function translation.
• Source does not indicate integrated cellular or wireless options, so wired Ethernet is required for network connectivity.

Specifications

Product type	RS485 to Ethernet converter
Connection	RS485 serial to RJ45 Ethernet
Working modes	TCP client, TCP server, UDP client
Identity packet	IMEI, ICCID or user editable packet
Protection levels	Level 4 antistatic, Level 3 electrical pulse, Level 2 overvoltage
Mounting	Din-rail

Our Verdict

The USR-DR302 is a solid, no-frills DIN-rail RS485 to Ethernet converter for professionals who need transparent serial tunneling, reliable reconnection behavior and device identity signaling. It delivers clear value in distribution box telemetry, remote barrier control and Modbus bridging when wired Ethernet is acceptable and protocol conversion is not required.

Frequently Asked Questions

Can the DR302 translate Modbus RTU to Modbus TCP?
The DR302 performs transparent transmission between serial and TCP/IP, so it bridges Modbus RTU over TCP/IP but does not perform deep protocol translation beyond transparent packaging.

How does the identity heartbeat work?
When configured as a TCP client the unit can send an IMEI, ICCID or a user-defined identity packet to the server to help identify the device connection.

Is wireless connectivity built in?
The source describes Ethernet operation only; there is no indication of integrated Wi-Fi or cellular connectivity, so use requires a wired RJ45 network link.
