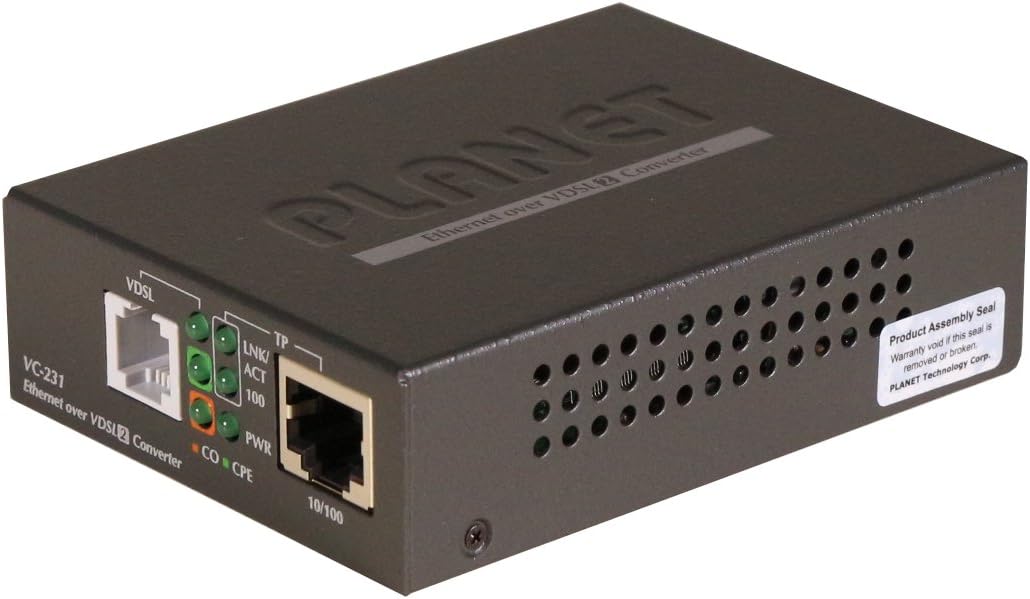

VC-231 Single port 100/100 Mbps Ethernet to VDSL2 Converter - Reliable

Our review of the VC-231 finds it to be a focused networking tool for installers and small-site operators who need to extend Ethernet over existing telephone wiring. The biggest reason to buy is straightforward: it converts a single 10/100Mbps Ethernet port into a VDSL2 link with symmetric 100/100Mbps capability using a 30a profile, making it useful where fiber or new cabling is impractical. The unit is a compact, one-box CO/CPE-selectable solution that emphasizes compatibility with DMT VDSL2 line coding and common Ethernet flow control standards.

Key Features

• 100/100Mbps symmetric throughput: Delivers the same downstream and upstream bandwidth, useful for applications that need balanced send and receive performance.
• CO/CPE selectable: The single-box design with a DIP switch lets technicians set the device as either a central office or customer premise unit without extra hardware.
• Ethernet compatibility: Complies with IEEE 802.3 standards and supports Auto-Negotiation and Auto-MDI/MDI-X for simple integration into existing networks.
• VDSL2 line coding and profiles: Uses DMT line coding and supports VDSL2 profiles including 17a and 30a for flexible deployment distances and speeds.
• Single-port simplicity: One RJ-45 10/100Mbps port and one RJ-11 VDSL port keep the device minimal and cost-effective for point-to-point links.
• Simultaneous voice and data: Includes a splitter for POTS connection so voice and data can share existing telephone wiring where needed.

Who It's For

The VC-231 is aimed at network installers, managed service providers, and small businesses that must deliver broadband over legacy copper pairs without running new cables. It fits well for scenarios where a single symmetric VDSL link is sufficient to connect a remote office, security system, or DSL bridge to a headend.

It is less suited to environments that require multiport switching, PoE for powered devices, or aggregated throughput beyond 100Mbps per direction; in those cases a multiport VDSL gateway or fiber solution would be a better choice.

Pros & Cons

Pros

• Compact single-box CO/CPE selection via DIP switch simplifies deployment choices on site.
• Symmetric 100/100Mbps performance over VDSL2 provides balanced upstream and downstream capacity for cloud and remote services.
• Standards compliance with IEEE 802.3 and flow control makes it easy to integrate into Ethernet networks.
• Includes a splitter for POTS so voice and data can share the same copper pair when required.

Cons

• Only a single 10/100Mbps Ethernet port is provided, so it is not a replacement for multiport switches or routers.

Specifications

Product	VC-231 Single port Ethernet to VDSL2 Converter
Bandwidth	100/100Mbps downstream/upstream
VDSL Profiles	Profile 17a / 30a
Ethernet Port	One 10/100Mbps RJ-45, Auto-Negotiation, Auto-MDI/MDI-X
VDSL Port	One RJ-11 with additional splitter for POTS
Standards	IEEE 802.3, 802.3u, 802.3x, DMT line coding
Operational Mode	CO/CPE selectable via DIP switch

Our Verdict

The VC-231 is a pragmatic, cost-effective VDSL2 bridge for single-link deployments where existing copper must be reused and symmetric bandwidth matters. Installers will appreciate the one-box CO/CPE switch and standards compatibility; organizations needing more ports or higher aggregation should look elsewhere, but for point-to-point VDSL2 at 100/100Mbps this unit represents solid value.

Frequently Asked Questions

Can the VC-231 carry voice and data at the same time?
Yes. The unit includes a splitter for POTS so voice and data can be shared over the existing telephone wiring.

How do you set the unit as CO or CPE?
The device is CO or CPE selectable via a physical DIP switch on the unit, allowing on-site role selection without extra models.

What sort of Ethernet connection is supported?
It has one 10/100Mbps RJ-45 port with Auto-Negotiation and Auto-MDI/MDI-X, and supports IEEE 802.3 flow control standards.
