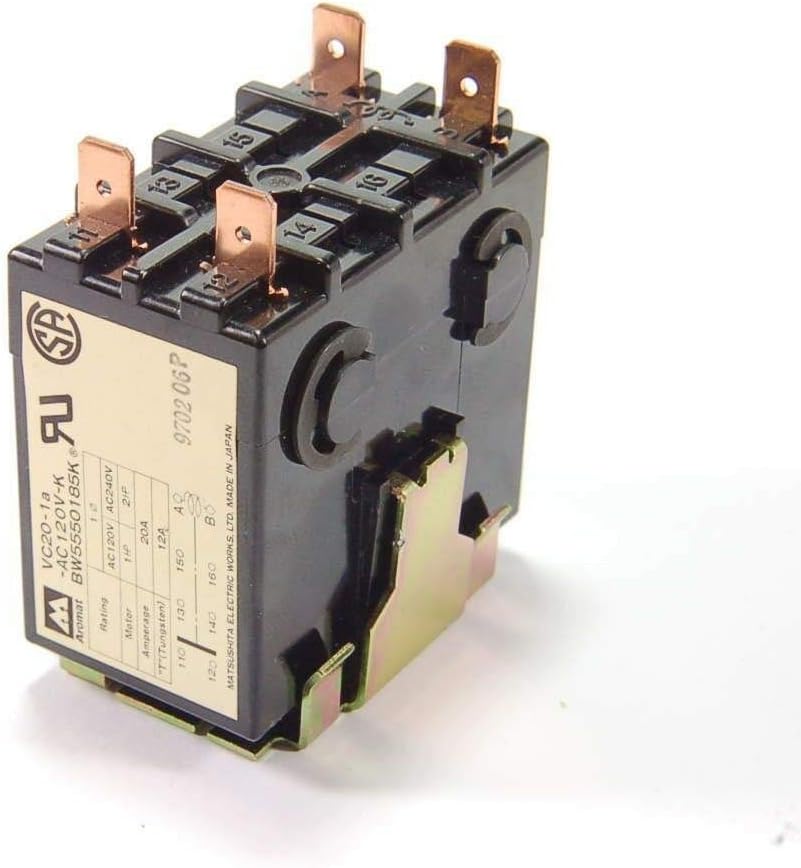

VC20-1A-AC120V-K SPST 120VAC 20A Power Relay - Compact Control Part

In this review the Aromat VC20-1A-AC120V-K is examined as a straightforward replacement or component for control panels and DIY electronics. The bottom line is that this is a no-frills, single-pole single-throw relay rated for 120VAC at 20A that suits hobbyists and technicians who need a compact switching device with quick-connect terminals. The review focuses on build and fit, electrical rating, and how easily it integrates into small equipment and retrofit projects where a reliable mechanical contact is required.

Key Features

• Single-pole single-throw design: Provides a simple on/off switching function useful for controlling loads without complex wiring.
• 120VAC coil rating: Matches common control voltages so it can be driven directly from standard control circuits in many appliances and panels.
• 20A contact capacity: Handles moderately heavy loads such as motors, heaters, and lighting within the specified current limit.
• Quick-connect terminals: Enables fast installation and replacement without soldering, reducing downtime during maintenance.
• Compact form factor: Fits into tight internal components areas and retrofit enclosures where space is limited.

Who It's For

The VC20-1A-AC120V-K is best for electronics hobbyists, repair technicians, and builders of custom control panels who need a dependable mechanical relay with a 120VAC coil and 20A contact capacity. It is particularly suitable when quick-connect terminals are preferred to speed up wiring or future service.

Those who should look elsewhere include users requiring solid-state switching, extremely long life cycles far beyond a mechanical relay, or coil voltages other than 120VAC. Also, projects needing integrated protections or sealed relays for harsh outdoor environments may need a different component.

Pros & Cons

Pros

• Simple SPST action makes wiring and logic straightforward for control applications.
• 120VAC coil and 20A rating cover many common appliance and panel tasks without extra parts.
• Quick-connect terminals reduce installation time and make field service easier.

Cons

• As a mechanical relay it will have finite contact life and is not suited for applications demanding silent or ultra-high-frequency switching.

Specifications

Product	VC20-1A-AC120V-K power relay
Contact configuration	SPST
Coil voltage	120VAC
Contact rating	20A
Terminals	Quick-connect
Quantity	1

Our Verdict

The Aromat VC20-1A-AC120V-K is a practical, value-oriented relay for anyone needing a compact SPST switching device rated at 120VAC and 20A. It offers the convenience of quick-connect terminals and straightforward electrical characteristics that make it easy to replace or integrate into small control systems, delivering reliable performance for typical hobbyist and repair work.

Frequently Asked Questions

Is this relay suitable for switching motors?
Yes, it can switch motor loads within the 20A contact rating, but verify inrush currents and consider contact protection for frequent starts.

Can I solder wires to the terminals?
The relay uses quick-connect terminals for speed, but you can adapt or crimp wires for secure connection; direct soldering to quick-connect tabs is not recommended.

What environments is this relay intended for?
It is intended for internal components and control panels; for outdoor or sealed applications choose a relay specified for harsh environments.
