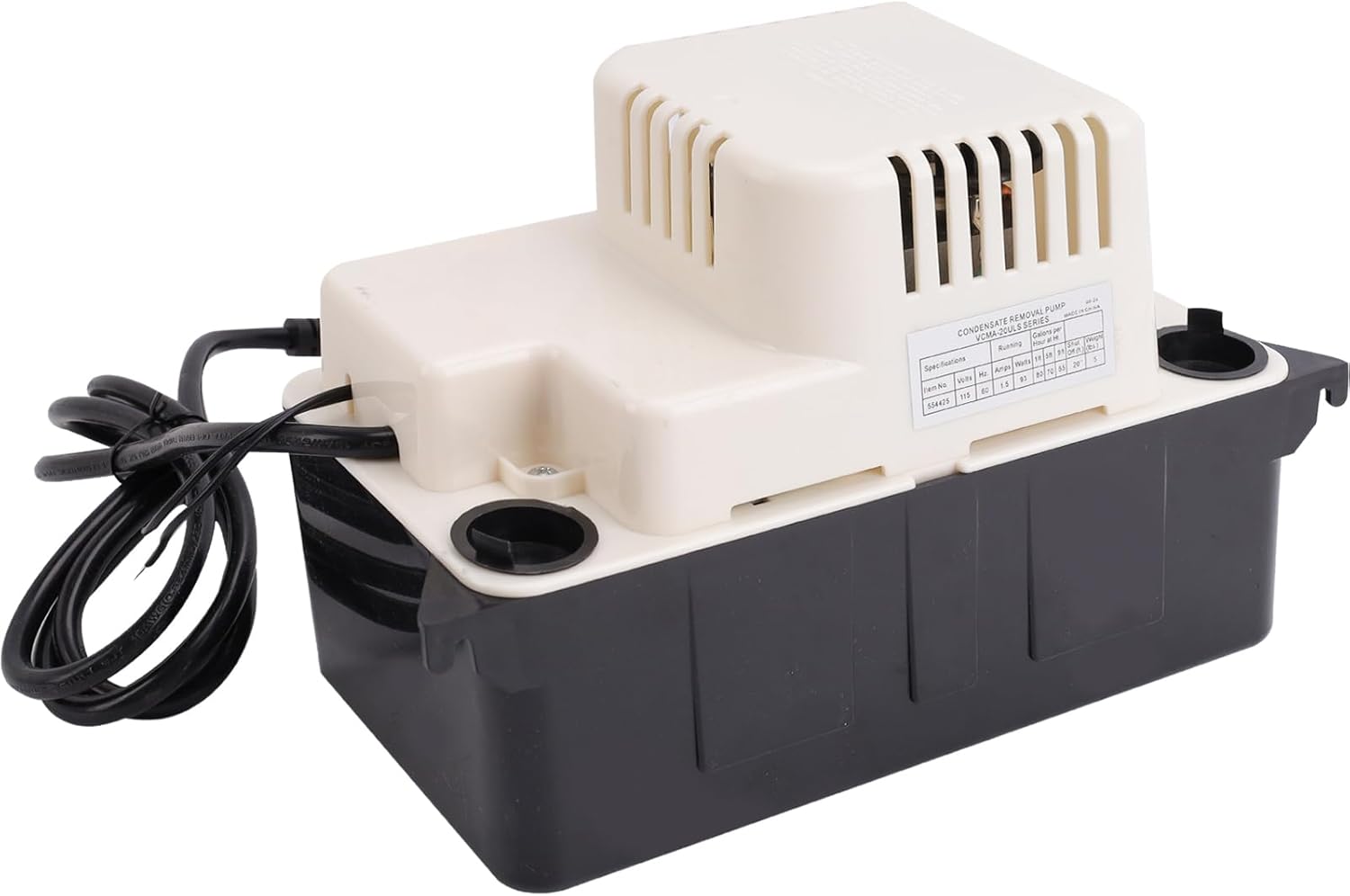

VCMA-20ULS 80 GPH Automatic Condensate Pump - Quiet, Reliable

In this review the VCMA-20ULS condensate pump is evaluated for homeowners and HVAC technicians who need a compact, automatic solution for condensate removal. The bottom line: this model stands out for its combination of a thermally protected motor and a responsive safety switch, making it a practical choice when the primary concern is reliable, low-maintenance condensate handling for air conditioners, dehumidifiers, and furnaces. It is especially useful where a vertical lift or modest horizontal run is required and where automatic shutoff to prevent overflow is important.

Key Features

• Automatic Activation: The pump turns on when water reaches the probe level and stops after drainage, eliminating constant monitoring and manual pumping.
• High Flow and Lift: Capable of moving up to 80 GPH at 1 ft and shutting off at a 20 ft lift, it clears condensate quickly in most residential HVAC setups.
• Thermally Protected Motor: The efficient motor resists overheating during frequent cycles, increasing durability in busy systems.
• Built-In Safety Switch: The integrated switch can disable the connected appliance or trigger an alarm if a high water level is detected, reducing flood risk.
• Compact Plumbing: Uses a 3/8-in OD barbed discharge with a check valve and three inlet drain holes for straightforward hookups and reliable backflow prevention.
• Ready-to-Install Cord: Ships with a 5 ft power cord and grounded 3-prong plug for simple electrical connection to 115V circuits.

Who It's For

The VCMA-20ULS is well suited to homeowners, contractors, and HVAC technicians who need a small-footprint condensate pump for air conditioners, furnaces, or dehumidifiers. Its 80 GPH capacity and 20 ft shut-off make it a good match for typical residential basements, utility closets, and rooftop condensate lines where vertical lift is required.

Those with large commercial systems, very long horizontal runs, or uncommon voltage requirements should look at higher-capacity or specialty pumps. If near-silent operation under light loads is the top priority, users should compare decibel-specific models because noise characteristics are not quantified in the specifications.

Pros & Cons

Pros

• Automatic on/off probe control removes the need for manual intervention and reduces maintenance time.
• Robust flow and lift performance at 80 GPH and a 20 ft shut-off handle most residential condensate needs.
• Safety switch integration provides an extra layer of protection against overflow and potential water damage.
• Durable construction with check valve and multiple inlet holes simplifies installation and reduces backflow issues.

Cons

• Not intended for high-demand commercial applications; capacity is tailored to residential use.
• No published sound rating, so users sensitive to pump noise should verify in-person or compare models with specified decibel levels.

Specifications

Model	VCMA-20ULS
Maximum Flow Rate	1.33 GPM / 80 GPH (at 1 ft)
Shut-Off Height	20 ft
Maximum Pressure	8.7 PSI
Outlet	3/8-in OD barbed discharge with check valve
Power	115V, 60Hz, 1/30 HP with 5 ft power cord
Tank Capacity	1/5 gallon

Our Verdict

The VCMA-20ULS is a practical, value-oriented condensate pump for residential HVAC and dehumidifier applications, offering reliable automatic operation, a thermally protected motor, and a safety switch to prevent overflow. For most homeowners and service technicians needing a compact pump with up to 20 ft lift capacity, it delivers dependable performance and straightforward installation without unnecessary complexity.

Frequently Asked Questions

Can this pump be used with a furnace or dehumidifier?
Yes, the pump is designed for use with HVAC equipment including furnaces and dehumidifiers and includes multiple inlet holes for flexible hookups.

What happens if the pump tank overfills?
The built-in safety switch will activate at a high water level and can be wired to shut off the connected appliance or trigger an alarm to prevent overflow.

How far can this pump lift condensate?
It will shut off at a 20 ft vertical lift and provides up to 80 GPH at a 1 ft head, suitable for most residential installations.
