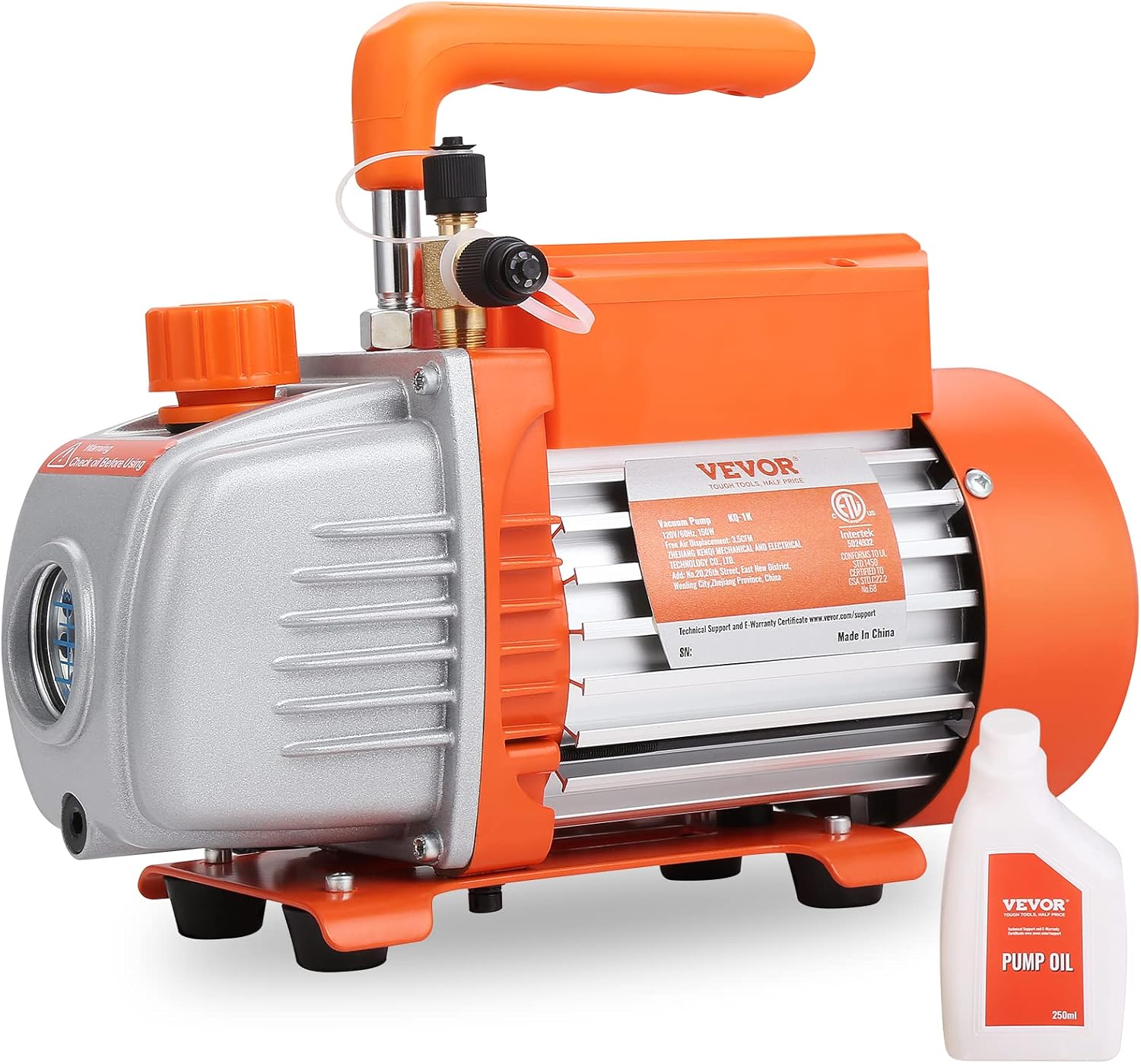

VEVOR 1/5 HP Single Stage Vacuum Pump - Reliable 3.5 CFM Performance

In this review the VEVOR 1/5 HP Single Stage Vacuum Pump is evaluated for technicians and serious DIYers who need a compact, dependable pump for HVAC repair, refrigeration maintenance, and resin degassing. The bottom line: it is most compelling for users who want a 3.5 CFM flow rate with an ultimate vacuum of 40 microns in a portable package, and it stands out for continuous operation thanks to its cooling features and overheat protection.

Key Features

• Pure copper motor: A 4 pole pure copper motor delivers high torque and steady performance for demanding tasks without frequent stalls.
• Cooling system: The T-shaped heat sink and cooling fan allow the pump to run continuously for over 2 hours while reducing the risk of overheating.
• Anti-backflow inlet: The oil inlet system with a check valve and ball valve switch prevents oil backflow and protects both the pump and connected lines.
• Low emissions: An oil fume emission discharge filter element lowers oil smoke output and helps keep the workspace cleaner and quieter.
• User-friendly monitoring: A sight glass and oil level scale make checking lubrication and oil status quick and straightforward.
• Versatile fittings: Dual intake fittings, 1/4' SAE male and 1/2' ACME male, provide compatibility with common HVAC and refrigeration service hoses.

Who It's For

The VEVOR pump suits HVAC technicians, refrigeration service professionals, and hobbyists who perform resin degassing or wood stabilization and need a compact pump rated at 3.5 CFM and 40 microns ultimate vacuum. Its continuous-run cooling and ergonomic handle make it practical for jobsite work and light shop use.

Those who should look elsewhere include users who require a heavier-duty or two-stage vacuum pump for faster deep vacuum pull-down on large systems, or operations that need longer continuous runtimes beyond the pump's designed over 2-hour continuous capability.

Pros & Cons

Pros

• Solid motor construction with a 4 pole pure copper motor that delivers reliable torque for regular HVAC tasks.
• Well-considered oil management: check valve, ball valve switch, and a filter element reduce backflow and emissions.
• Good portability and ergonomic handle make the 11.9 lb unit easy to move around job sites.
• Includes 250 ml oil bottle and visible sight glass for timely maintenance.

Cons

• Single stage design limits ultimate performance compared with two-stage pumps for very deep vacuum needs.
• Continuous runtime is limited; although cooling and overheat protection extend use, very long jobs may require breaks or a higher-capacity unit.

Specifications

Model Number	TW-1K
Free Air Displacement	3.5 CFM
Ultimate Vacuum	40 Microns
Intake Fittings	1/4' SAE male; 1/2' ACME male
Voltage/Frequency	120V/60 Hz
Power / Speed	150W, 1720 RPM
Oil Capacity / Weight	250 ml / 11.9 lbs

Our Verdict

The VEVOR 1/5 HP Single Stage Vacuum Pump is a pragmatic, cost-conscious choice for HVAC techs and serious DIYers who need a portable 3.5 CFM pump with solid oil management and cooling features. It offers dependable performance and useful accessories for routine refrigeration maintenance and resin degassing, though users needing deeper vacuum levels or extended continuous operation should consider a larger two-stage model.

Frequently Asked Questions

What is the pump's ultimate vacuum?
The pump achieves an ultimate vacuum of 40 microns, suitable for most HVAC service and resin degassing tasks.

Which fittings are included for connections?
It has dual intake fittings: 1/4' SAE male and 1/2' ACME male for common service hose compatibility.

How long can it run continuously?
With the T-shaped heat sink, cooling fan, and overheat protection it can run continuously for over 2 hours before breaks are recommended for prolonged jobs.
