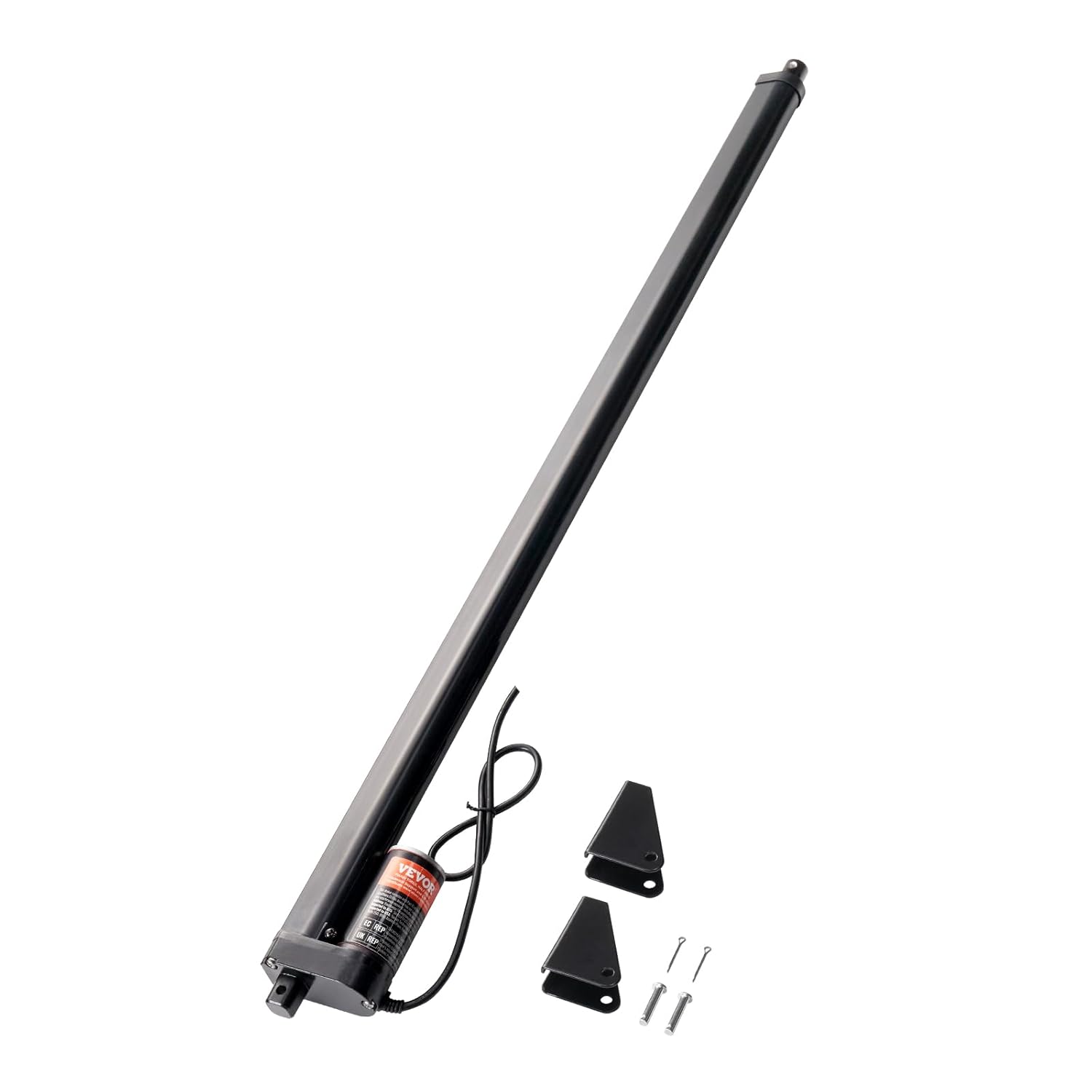

VEVOR Linear Actuator 12V 20 in High Speed - Compact Motion

In this review of the VEVOR Linear Actuator 12V, the bottom line is simple: this is a practical, mid-duty linear actuator best suited for furniture adjustment, DIY automation and occasional industrial tasks where a reliable 220 lb thrust and a long 20 in stroke matter most. The reviewer found the combination of a 0.55 in/s travel speed, IP54 protection and a quieter motor under 50db make it a good fit for indoor projects and light outdoor uses, while noting that synchronizing multiple units or pushing continuous heavy duty cycles will need planning.

Key Features

• 20 in Stroke: The long 20 in travel allows significant range for desks, lifting platforms and adjustable furniture without added linkages.
• 0.55 in/s Speed: A relatively brisk 0.55 in/s travel rate shortens adjustment times for frequent height changes and makes operation feel responsive.
• 220 lb Force: Rated for about 220 lbs (1000 N), it delivers stable thrust suitable for medium-duty doors, platforms and seating applications.
• IP54 Protection: With an IP54 rating the actuator resists dust and splashing water, so it can be used in semi-outdoor or workshop environments with reasonable protection.
• 12V, 5 A Draw: The DC12V motor runs from common 12V supplies and draws about 5 amps, simplifying integration into automotive or battery-powered projects.
• Low Noise Operation: Sub-50db noise makes this actuator suitable for home and office uses where quiet operation matters.

Who It's For

The VEVOR Linear Actuator is aimed at hobbyists, small-shop fabricators and home users who need a long travel, mid-power linear motion device for adjustable desks, platform lifts, seating lifts or motorized window and door applications. Its DC12V compatibility and moderate current draw make it easy to install in automotive, marine and RV projects.

It is less suited to continuous industrial duty where high duty cycles or perfect synchronization of multiple actuators under load is required; installers looking for heavy industrial actuators with higher duty cycles or factory-level synchronization controls should consider industrial-grade alternatives.

Pros & Cons

Pros

• Long 20 in stroke provides a wide range of motion for many furniture and platform uses.
• Good mid-duty force of 220 lb gives dependable lift for most domestic and light industrial tasks.
• IP54 rating and quiet operation under 50db make it practical for indoor and semi-outdoor installations.

Cons

• Some customers report mixed results on synchronization and long-term durability, so parallel installations may need external synchronization controls.
• Duty cycle is 25%, so it is not intended for continuous heavy-duty operation.

Specifications

Stroke Length	20 in (500 mm)
Travel Speed	0.55 in/s (14 mm/s)
Retracted / Extended Length	24.6 in / 44.6 in (625 mm / 1125 mm)
Rated Force	220 lb (1000 N)
Rated Voltage / Current	DC 12V / 5 A
Duty Cycle	25%
Ingress Protection	IP54

Our Verdict

The VEVOR 12V linear actuator is a solid, value-oriented choice for homeowners and makers who need a long-stroke, mid-power actuator that runs quietly and tolerates light outdoor conditions. It is particularly good for adjustable furniture and occasional lifting tasks, but buyers needing continuous heavy use or precise multi-unit synchronization should plan for higher duty components or external control systems.

Frequently Asked Questions

Can this actuator lift a person?
It can lift a person within its 220 lb rated force as customers have reported, but safety factors and proper mounting should be used for human-rated applications.

Is it weatherproof for outdoor use?
The IP54 rating protects against dust and splashing water, so it can be used outdoors with some protection, but it should not be submerged or allow water into the motor housing.

How quiet is the unit?
The motor runs under 50db, making it noticeably quieter than industrial actuators and suitable for indoor and office environments.
