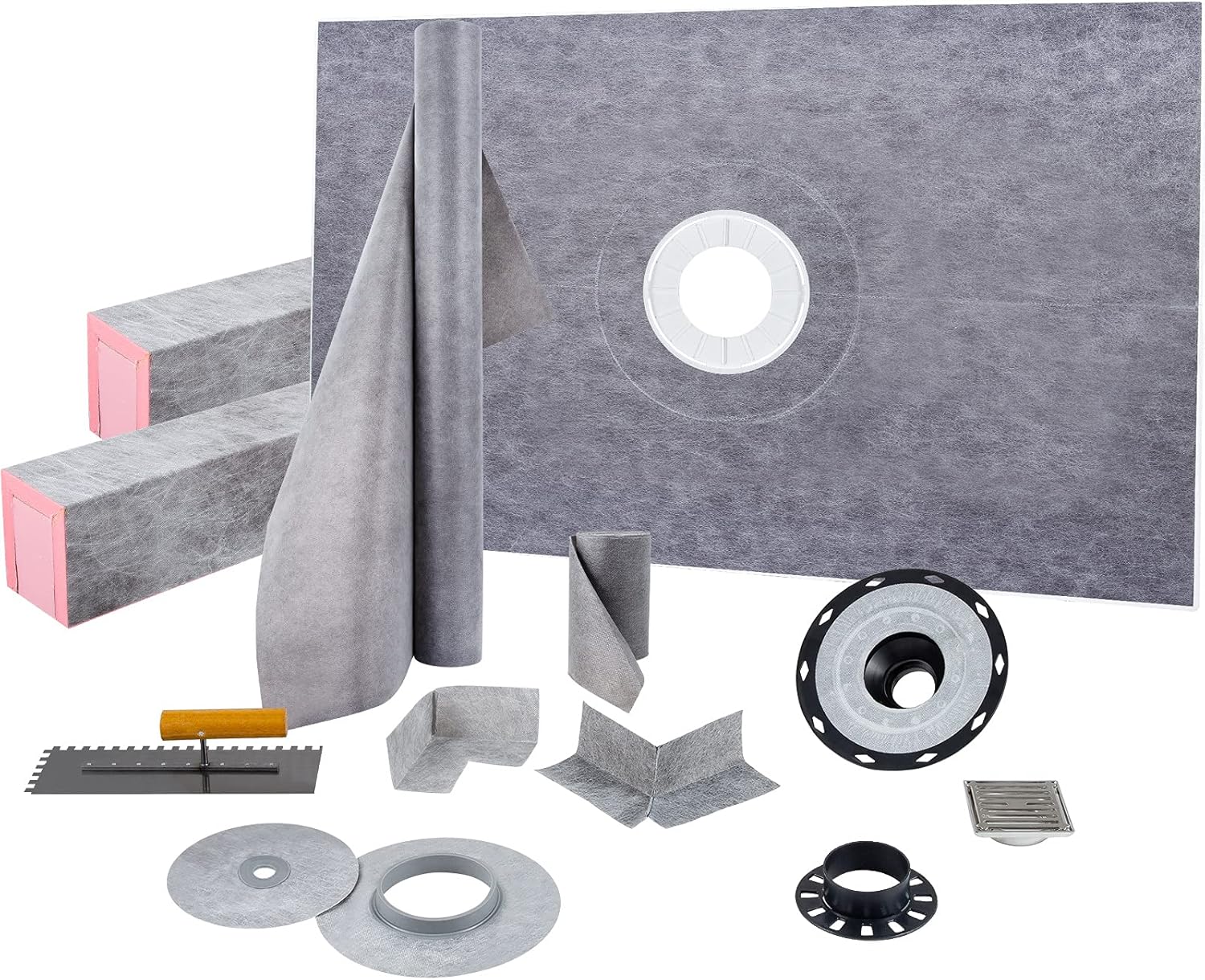

VEVOR Shower Curb Kit 38in x 60in Watertight Tray - Complete Drain Kit

In this review the VEVOR Shower Curb Kit is assessed as a complete, budget-friendly solution for a watertight shower installation. It is aimed at homeowners and DIYers who need a ready package that includes a molded EPS shower tray, central 4 in drain, two cuttable curbs and waterproofing membrane, with the biggest reason to buy being that it bundles all core waterproofing and drainage components for an efficient install without hunting down separate parts. The review highlights installation simplicity, the included stainless steel trowel and reliable drain accessories.

Key Features

• Premium shower tray: A 38 in x 60 in EPS high-pressure foam tray provides a lightweight, cuttable base for tile and a central 4 in drainage hole positioned for effective flow.
• Complete drainage accessories: The kit includes a 4 in PVC flange and a gravity automatic-seal stainless steel grate to help prevent pipe blockages and ensure consistent draining.
• Water-impermeable membrane: Two rolls of HDPE membrane in different widths plus preformed inside and outside corners simplify waterproofing of walls and the shower floor.
• Cuttable shower curbs: Two XPS extruded curbs sized 38 in x 4.5 in x 6 in are easy to trim so they can be adjusted to the opening length without special tooling.
• Stainless steel trowel included: A square-serrated stainless steel trowel is provided for mortar application to achieve better adhesion between the membrane and substrate.
• Effortless installation: The kit ships with all primary components needed to assemble a watertight curb-style shower bed, reducing trips for missing items.

Who It's For

This kit is best for experienced DIYers and professional remodelers who want a compact, prepackaged shower curb assembly with a central offset drain and all waterproofing essentials included. The light EPS tray and cuttable XPS curbs make it convenient for projects where weight and handling are considerations.

Those who should look elsewhere are buyers needing an ultra-thin or custom-shaped pan, or installers who require a different drain location or proprietary drain system; this kit is built around a middle 4 in drain and fixed tray dimensions.

Pros & Cons

Pros

• Includes a full set of waterproofing and drainage parts for a single purchase installation.
• Lightweight EPS tray and cuttable XPS curbs make on-site handling and trimming straightforward.
• Stainless steel grate and stainless trowel improve durability and make mortar work easier.
• Preformed membrane corners save time and reduce cutting errors during waterproofing.

Cons

• The tray has a fixed central 4 in drain location, which may not suit layouts that require a corner or different offset drain position.
• Some installers may prefer a thicker or different foam core material depending on load or tile preference.

Specifications

Brand	VEVOR
Tray overall size	38 in x 60 in
Tray thickness	0.8 in (approx)
Drain diameter	4 in
Curb size	38 in x 4.5 in x 6 in (two, cuttable)
Membrane rolls	Two HDPE rolls (one 5 in x 32.8 ft, one 3.3 ft x 32.8 ft) with corners
Included tool	Square-toothed stainless steel trowel

Our Verdict

The VEVOR Shower Curb Kit is a practical, cost-conscious choice for building a watertight curb shower when a central drain location is acceptable. It delivers strong value by combining a cuttable EPS tray, two XPS curbs, HDPE membranes with corners, a PVC flange and stainless steel drain and trowel in one package, making it a time-saving option for DIYers and tradespeople who want to minimize parts sourcing and simplify waterproofing.

Frequently Asked Questions

Can the curbs be cut to fit a nonstandard opening?
Yes, the two XPS extruded curbs are designed to be cut to length on site so they can be adjusted to the exact opening.

Are corners for the membrane included?
Yes, the kit supplies four inside corners and two outside corners of membrane to avoid time-consuming corner cutting.

Does the drain grate prevent blockages?
The stainless steel gravity automatic-seal grate is designed to reduce pipe blockage and allow smooth draining, though routine maintenance is still recommended.
