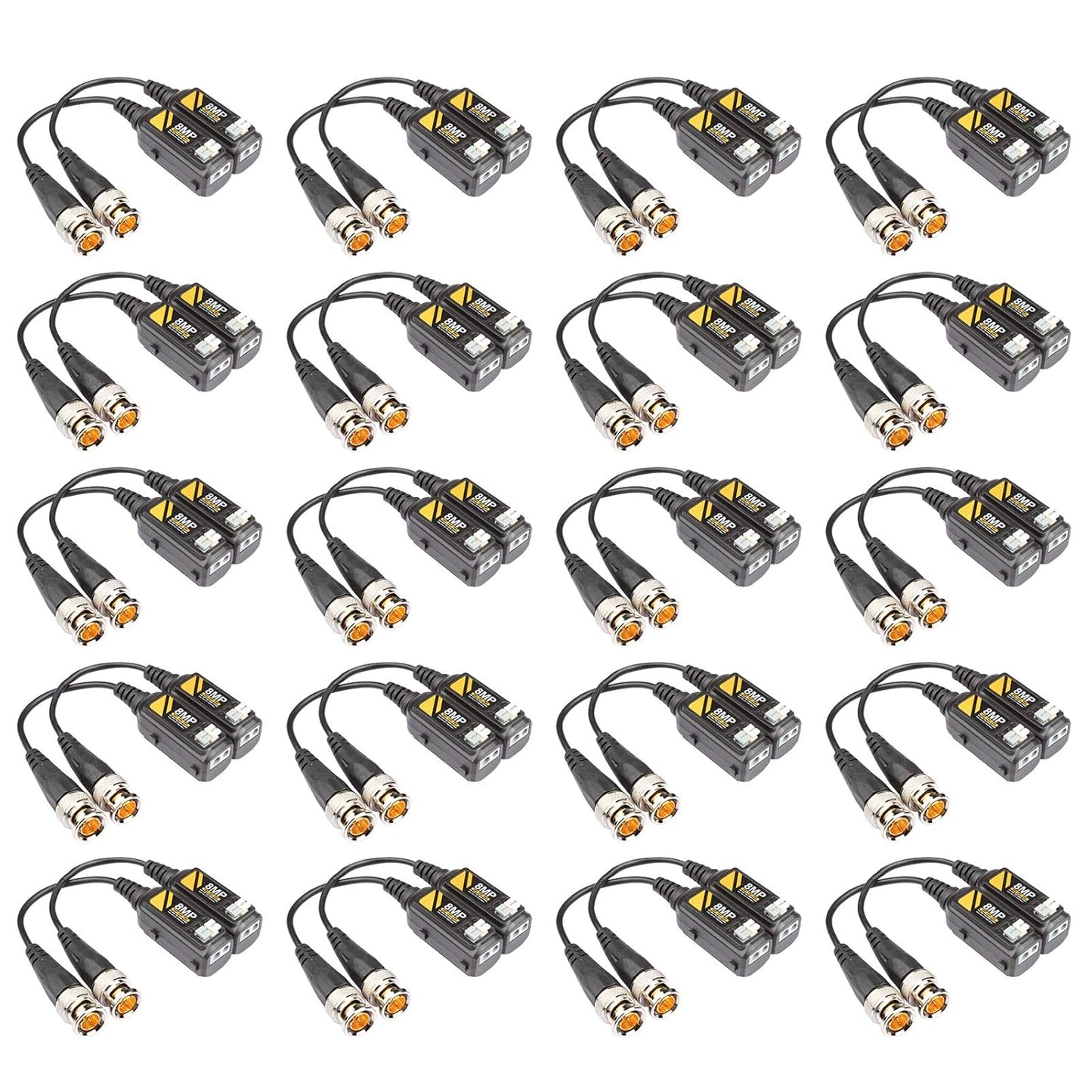

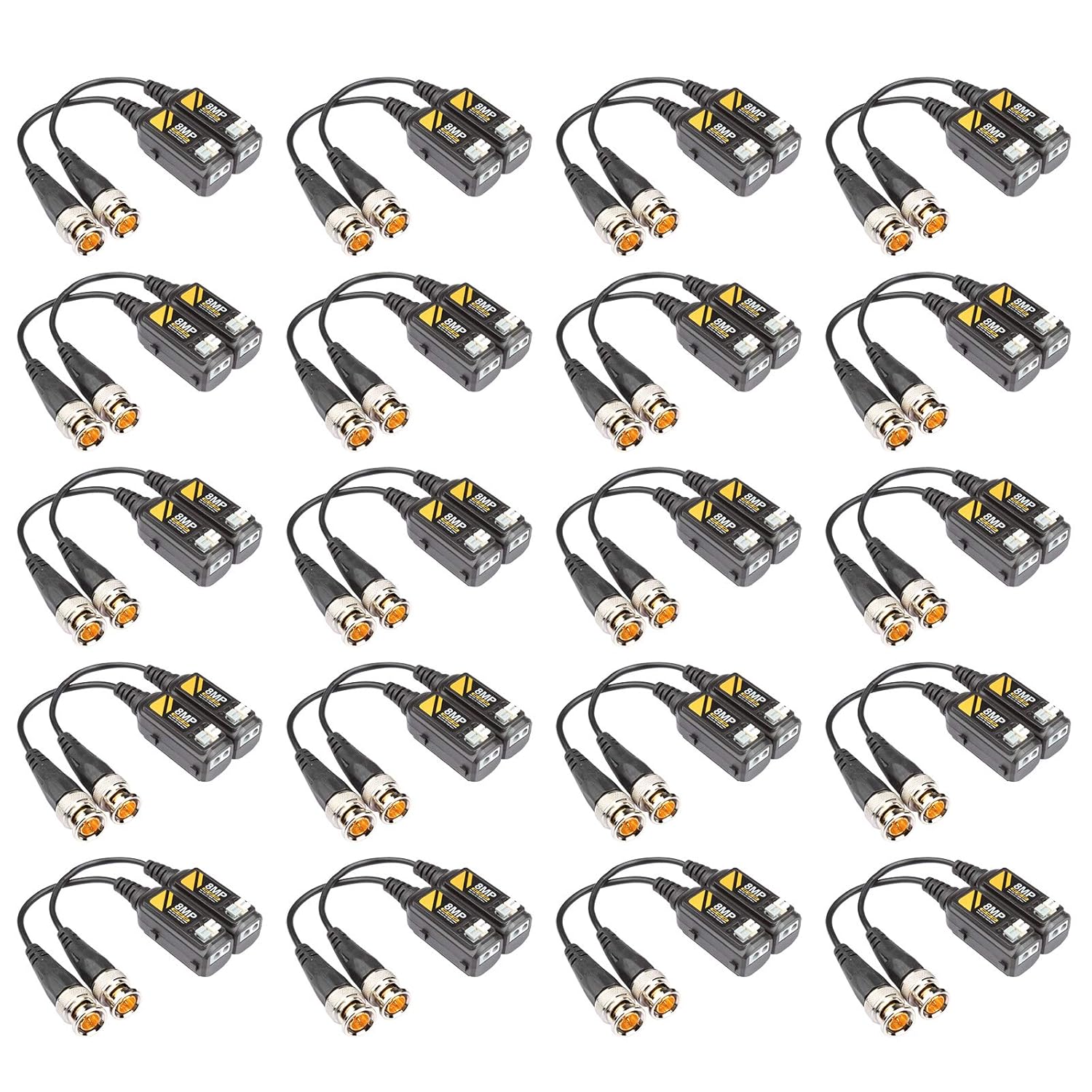

Video Balun Connectors 20 Pairs Passive 8MP Support - UTP CCTV Kit

In this review of the 20 pairs passive video balun kit the bottom line is simple: it is a practical, low-cost solution for running clear analog and HD CCTV signals over UTP cable. The reviewer found the kit best suited to installers and small businesses that need to extend HD-CVI/TVI/AHD and CVBS signals without running coax. The single biggest reason to buy is reliable long-distance transmission up to the specified ranges while also carrying DC power, which reduces cable runs and simplifies installation for multi-camera systems.

Key Features

• Maximum Support Pixel: Supports up to 8 million pixels so it handles common HD resolutions including 1080P and multi-megapixel cameras without obvious image loss.
• 20 Pairs (40pcs): The kit includes 20 paired transceivers which is convenient for larger installs and avoids sourcing individual baluns.
• UTP Transmission: Transmits video over CAT5/5E/6 cable to reuse existing network wiring and extend runs beyond short coax limits.
• Long Distance: AHD/CVI transmission reaches up to about 1,312 ft (400 m) and TVI/CVBS up to 984 ft (300 m), enabling placement of cameras far from recorders.
• Power and Signal Together: Simultaneously transmits frequency signal and DC power so installers can reduce separate power cabling for many layouts.
• Anti-interference: Passive design and twisted pair use help reduce interference on analog and HD signals in typical CCTV environments.

Who It's For

The kit is aimed at DIY installers, small security contractors, and facilities managers who need to connect multiple HD-CVI/TVI/AHD or analog cameras and prefer using UTP cable. It is especially useful when existing CAT5/6 wiring is available or when runs exceed coax practical lengths.

It is less suitable for users who require active, powered baluns with signal amplification for very long runs in electrically noisy industrial sites, or who need feature-rich networked video solutions; those buyers should consider active extenders or IP-based systems instead.

Pros & Cons

Pros

• Includes 20 pairs which covers multi-camera installs without buying extras.
• Long distance support for AHD/CVI up to 1,312 ft (400 m) and TVI/CVBS up to 984 ft (300 m) on UTP.
• Can carry DC power along with video, simplifying wiring and reducing accessories.
• Passive design reduces points of failure and needs no external power for the transceivers themselves.

Cons

• As passive transceivers, they do not amplify weak signals, so image quality depends on camera output and cable condition.

Specifications

Product Type	Passive Video Balun Transceiver Kit
Quantity	20 pairs (40 pieces)
Maximum Support Pixel	8 million pixels
Compatible Formats	AHD, TVI, CVI, CVBS
Transmission Distance	AHD/CVI: 1,312 ft (400 m); TVI/CVBS: 984 ft (300 m)
Transmission Cable	UTP CAT5 / CAT5E / CAT6
Power Transmission	Simultaneous DC power and frequency signal over UTP

Our Verdict

The 20 pairs passive balun kit is a sensible value for multi-camera HD and analog CCTV installs where reusing UTP cabling and carrying power on the same run matters. Installers who need a straightforward, passive solution for up to 8MP cameras will find it effective, but those needing active boosting for marginal long runs should look at powered extenders.

Frequently Asked Questions

Can these baluns carry camera power?
Yes, they are designed to transmit DC power along with the video signal over the UTP pair so separate power wiring can often be reduced.

What cable should be used for best results?
Use good quality CAT5E or CAT6 UTP cable to maximize distance and minimize interference for HD-CVI/TVI/AHD signals.

Will they work with 8MP cameras?
They support up to 8 million pixels, which covers common 1080P and multi-megapixel analog HD cameras supported by the listed formats.
