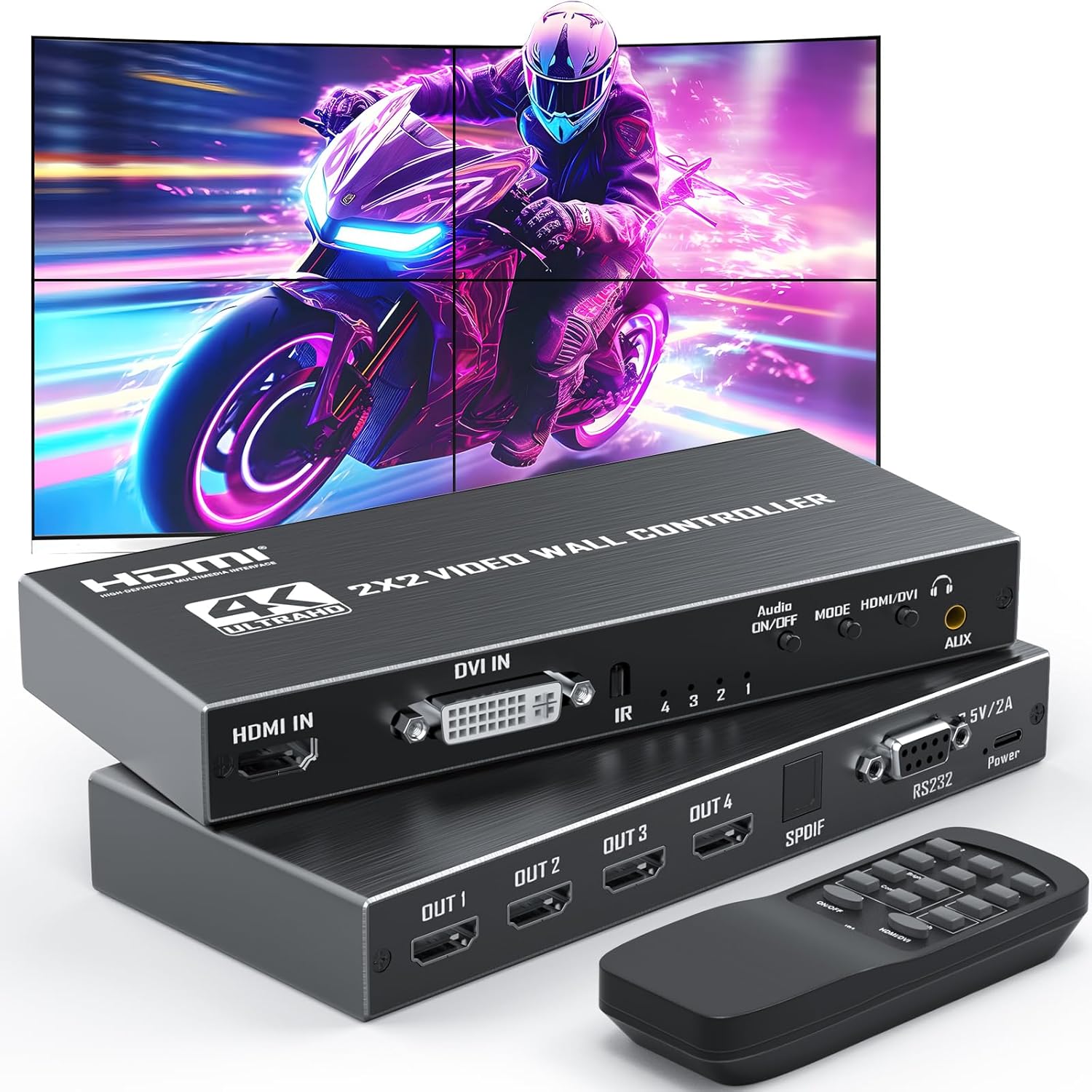

Video Wall Controller 2x2 HDMI DVI - 4-Output 1080P Processor

In this review of the Video Wall Controller 2x2 the bottom line is simple: it is a practical, affordable video wall processor for small displays that need a single 4K source shown across up to four 1080P screens. The reviewer found it best suited for retail displays, trade show booths, or corporate signage where simple splicing modes and easy remote control matter more than ultra-high output resolution. The unit's ability to accept a 4K@30Hz input and split it into four synchronized 1080P outputs, plus audio extraction, is the single biggest reason to buy for anyone building a compact 2x2 video wall on a budget.

Key Features

• 4 HDMI outputs: Splits one HDMI or DVI input into four distinct HDMI outputs so four displays can form a single large image.
• 4K input, 1080P output: Accepts up to 3840x2160@30Hz input and outputs up to 1920x1080@60Hz for stable, full HD displays across all screens.
• Nine splicing modes: Offers flexible layouts such as 2x2, 1x3, and 4x1 that can be switched by the included infrared remote or RS232 control for quick configuration.
• 180 degree rotation and edge mask: Rotation for two outputs and edge masking help reduce bezel distraction and work for portrait-style arrangements in 2x2 mode.
• Audio extraction: Built-in SPDIF and 3.5mm stereo outputs let users route sound to a speaker system or amplifier without extra adapters.

Who It's For

The Video Wall Controller 2x2 is aimed at small business owners, event techs, and AV integrators who need a straightforward way to create a multi-screen display from a single source. It is especially useful for advertising windows, information kiosks, or trade show walls where full HD output and multiple layout options matter more than ultra-high pixel density.

Those who need 4K output on each individual display, advanced video scaling for mixed-resolution panels, or professional-grade video wall processors with frame-synchronization features should look elsewhere. This unit is optimized for accessible, plug-and-play operation rather than high-end broadcast deployments.

Pros & Cons

Pros

• Simple setup: plug-and-play HDMI/DVI input with easy remote switching makes it fast to install.
• Flexible layouts: multiple splicing modes cover common configurations like 2x2 and 1x3 without extra equipment.
• Audio options: SPDIF and 3.5mm outputs simplify connecting sound to external speakers.
• Accepts 4K sources: can ingest 4K@30Hz and downscale cleanly to 1080P outputs.

Cons

• Output limited to 1080P@60Hz, so it will not deliver native 4K on each display.
• 180 degree rotation is limited to specific modes (not available for every layout), which reduces flexibility for some orientations.

Specifications

Input	1 x HDMI or DVI (supports up to 4K@30Hz)
Outputs	4 x HDMI (up to 1920x1080@60Hz)
Splicing Modes	9 modes including 2x2, 1x1, 1x2, 1x3, 1x4, 4x1, 3x1, 2x1
Audio	SPDIF (5.1) and 3.5mm stereo extraction
Control	IR remote included; RS232 supported
Rotation	180 degree rotation for outputs 1 and 2 (for 2x2 mode)
Power	5V/2A power adapter included

Our Verdict

The Video Wall Controller 2x2 is a sensible, cost-effective choice for customers who need to show one source across four full HD screens with minimal fuss. It delivers useful layout options, audio extraction, and simple remote control, making it excellent value for retail and event displays that do not require native 4K output per panel.

Frequently Asked Questions

Can this accept a 4K Blu Ray player?
Yes, it accepts 4K@30Hz HDMI input such as from a 4K Blu Ray player and downscales to 1080P outputs.

Does it include a remote?
Yes, an infrared remote is included in the package; a battery is not provided.

Can I control it over RS232?
Yes, the unit supports RS232 for advanced remote control and automation.
