Visionis FPC-5288 One Door Access Control Kit - 1200lbs Maglock

In this review of the Visionis FPC-5288 kit, the bottom line is simple: it is a complete one-door standalone access control solution for small offices, reception areas, or secure rooms where a strong electromagnetic lock and flexible entry modes are needed. The kit is notable for combining a heavy-duty 1200lb maglock and mounting brackets with an IP68 metal touchscreen keypad/reader, a one-door mini controller that supports up to 1,000 users, and both cards and keyfobs out of the box, making setup straightforward for installers who want a no-software system.

Key Features

• 1200lb Maglock with LED: Provides a visible lock status indicator and robust holding force for inward-swinging doors to improve door security.
• L and Z mounting bracket: The included VIS-ZL1200 brackets simplify installation on a variety of door and frame configurations for reliable magnet placement.
• IP68 Metal Touch Keypad/Reader: Outdoor-rated keypad and reader with Wiegand 26 support allows PIN, EM card, and keytag entry without needing a network or software.
• Standalone Mini Controller: The VIS-MINI-CNTRL handles one door and up to 1,000 users, keeping configuration local and eliminating ongoing server dependencies.
• PIR Request-to-Exit and Exit Button: Integrated motion PIR sensor with buzzer and a slim push/touch exit button provide convenient egress while maintaining controlled entry.
• Complete power and credential set: Three UL listed 12V 1000mA supplies and a set of ten cards plus ten keyfobs mean the kit is ready to deploy for small teams.

Who It's For

This kit is aimed at small businesses, clinics, warehouses, or property managers who need a single-door access control solution without the complexity of software or network setup. Installers and facilities teams who prefer hardware-driven control will appreciate the included mount brackets, power supplies, and the IP68 metal keypad for outdoor use.

It is less appropriate for multisite enterprises or installations that require centralized monitoring, cloud features, or integration with advanced building management systems. Users who need multi-door synchronized access or long-range readers should consider a different, networked platform.

Pros & Cons

Pros

• Robust 1200lb magnetic lock and mounting hardware provide strong physical security for inward-opening doors.
• Standalone IP68 metal keypad supports PIN, proximity card, and keytag entry, offering flexible credential options.
• Includes a practical set of accessories: request-to-exit PIR, exit button, doorbell, power supplies, and credentials for quick deployment.
• Mini controller supports up to 1,000 users without additional software, simplifying local management.

Cons

• Because it is strictly standalone with no software, it lacks remote management or centralized logging features expected by larger operations.
• The kit is focused on a single door; scaling to multiple doors will require purchasing additional controllers and locks.

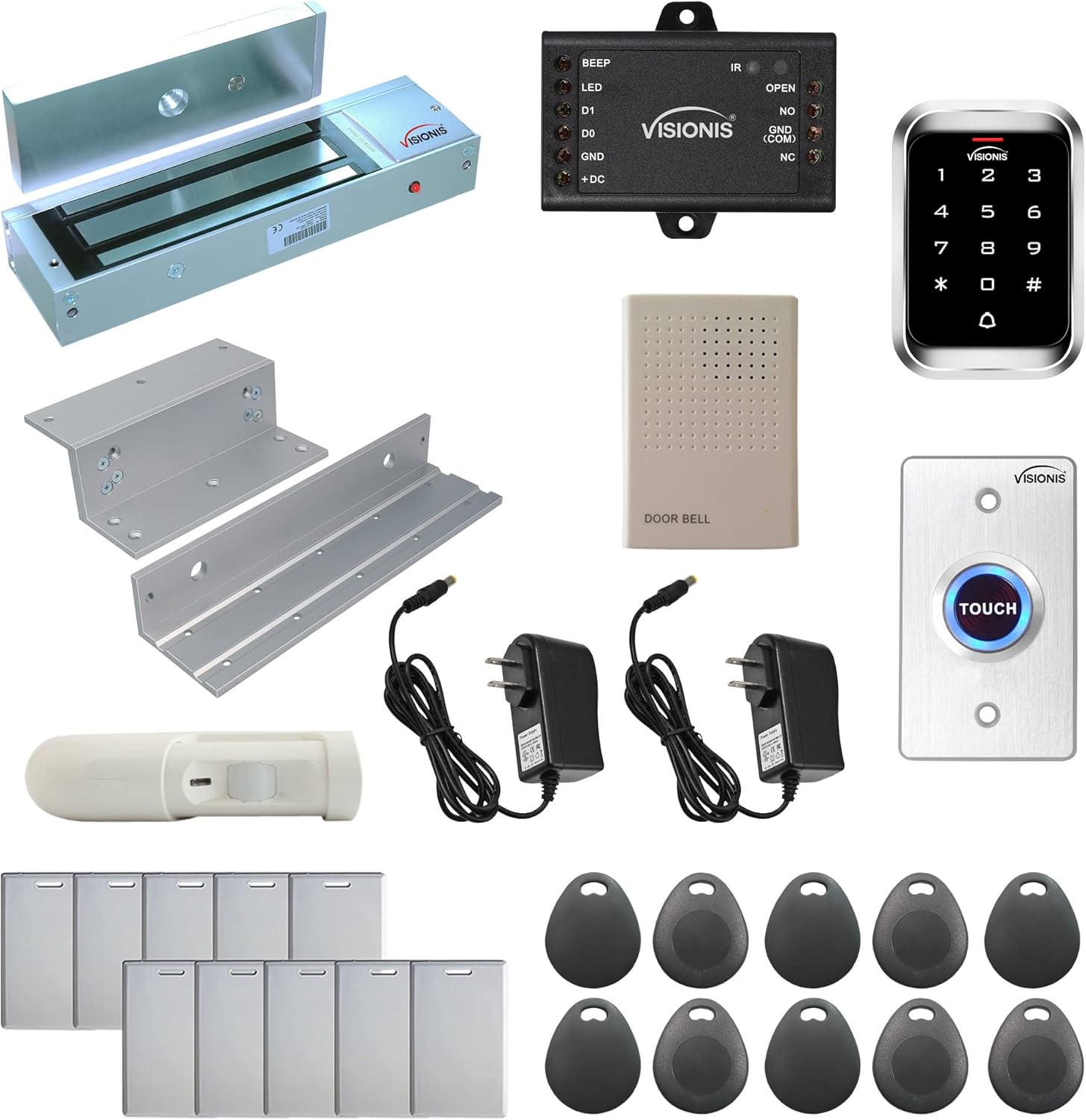

Specifications

Lock	VIS-ML1200LED 1200lbs indoor electromagnetic lock
Bracket	VIS-ZL1200 L and Z bracket for 1200lb maglock
Keypad/Reader	VIS-3000 IP68 metal touch keypad/reader, Wiegand 26, EM card support
Controller	VIS-MINI-CNTRL 1-door standalone controller, up to 1,000 users
Exit Devices	VIS-7005 push/touch exit button and Irexplus PIR request-to-exit sensor
Power	Three VISCP100 12V 1000mA UL listed power supplies included
Credentials	10 proximity cards and 10 keyfobs, 26-bit 125kHz format

Our Verdict

The Visionis FPC-5288 is a practical, value-minded one-door access control kit for sites that need strong physical security and simple local management. It is especially good for small businesses and installers who want a ready-to-install package with an outdoor-rated keypad and all required power and mounting hardware included. Choose this kit when you need a durable maglock solution without network complexity.

Frequently Asked Questions

Does the keypad work outdoors?
The VIS-3000 keypad/reader is rated IP68 and uses a metal touch surface designed for outdoor and indoor installation.

How many users can the controller handle?
The VIS-MINI-CNTRL supports up to 1,000 users for PINs and proximity credentials without external software.

Are cards and keyfobs included?
Yes, the kit ships with ten 26-bit 125kHz proximity cards and ten matching keytag fobs ready for enrollment.
