Visionis FPC-5323 One Door Maglock Access Control Kit - Standalone

Our review of the Visionis FPC-5323 finds it best suited to small offices, clinics, and retail backrooms that need a reliable single-door solution with multiple entry options. The kit's biggest selling point is its completeness: a 300lb LED maglock, standalone keypad/reader with Wiegand 26, a mini controller and power supply arrive together so installers can finish a secure entry without extra components. For site managers who want an offline system supporting PIN, EM card, or keytag access for up to 1,000 users, this kit streamlines deployment and reduces compatibility headaches.

Key Features

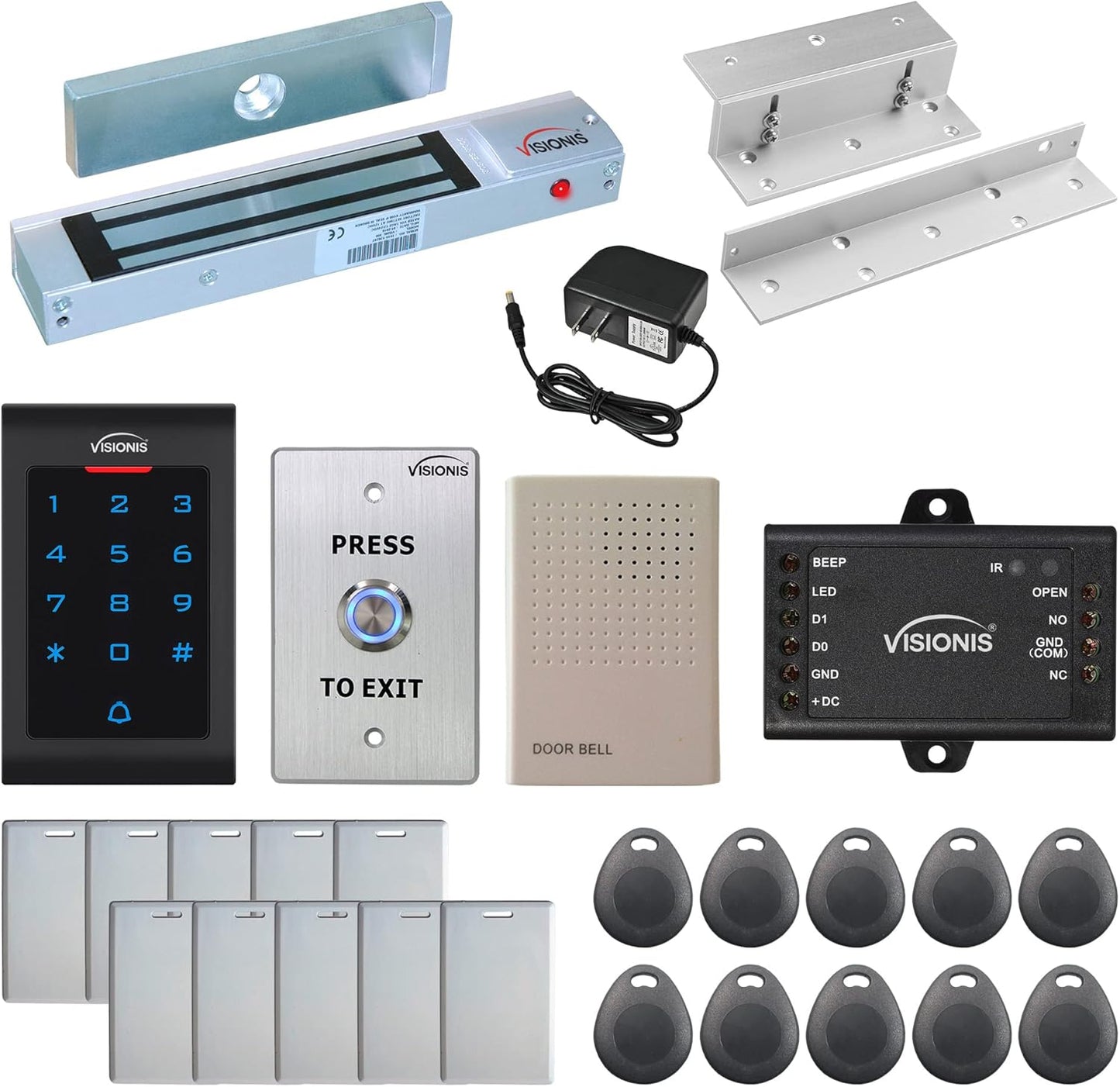

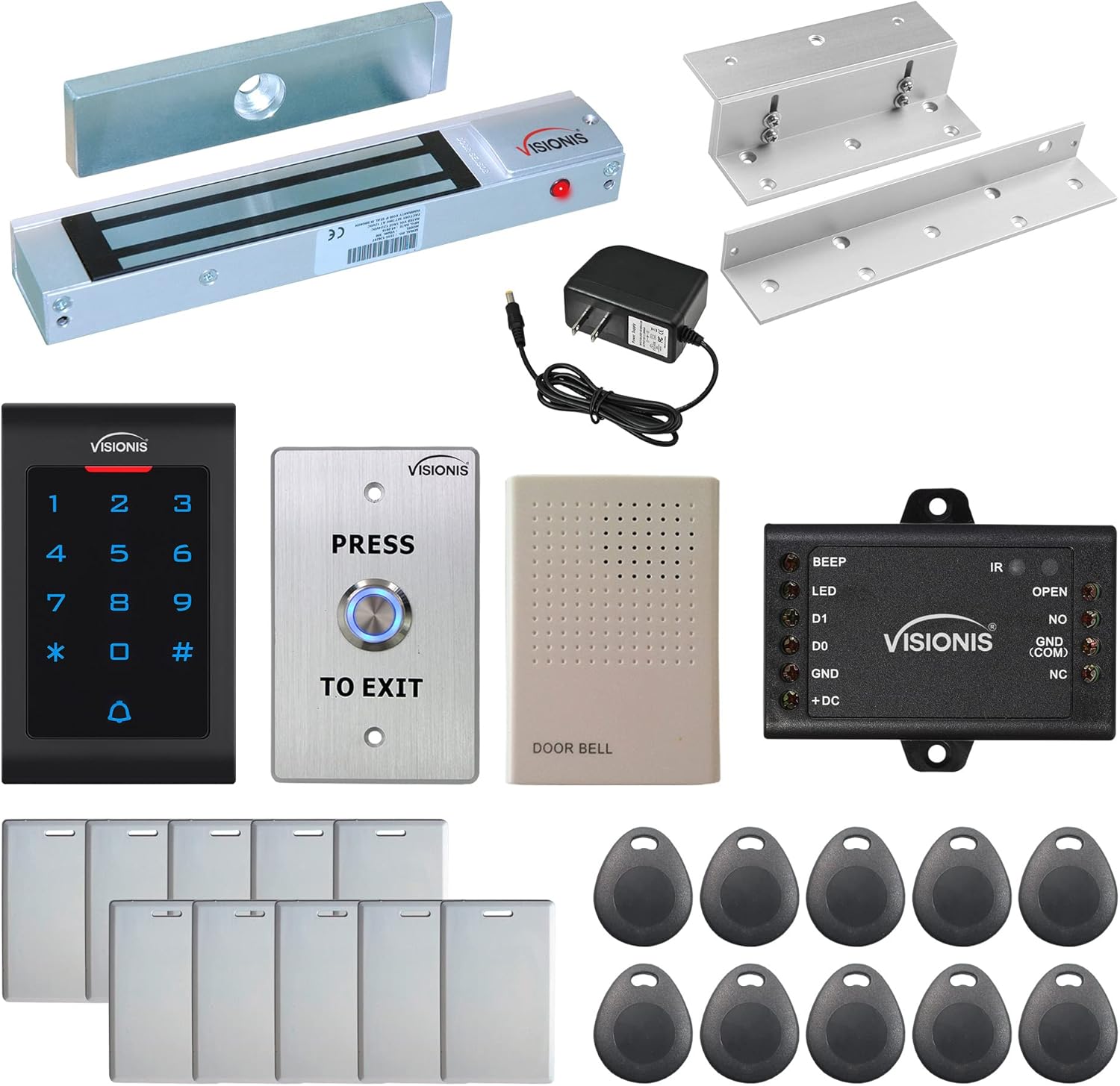

• All-in-one kit: Includes maglock, Z/L bracket, keypad/reader, controller and power supply so installers can complete a single-door project without sourcing separate parts.
• 300lb maglock with LED: The VIS-ML300LED provides a visible lock status indicator that helps verify secure closure at a glance.
• Multiple authentication modes: The VIS-3002 keypad supports PIN, EM proximity card and keytag entry, offering flexible user authentication for different staff and contractors.
• Standalone control: The VIS-MINI-CNTRL and VIS-3002 work without software or a network, simplifying setup and reducing ongoing IT requirements.
• Access accessories included: The kit supplies a weather-rated request-to-exit button, external doorbell, ten cards and ten keyfobs so basic access workflows are ready out of the box.
• UL listed power supply: The included 12V 2A transformer protects the system and avoids the need to source a compliant power module separately.

Who It's For

The FPC-5323 is aimed at facilities that need a simple, reliable single-door access solution without a centralized management system. Small businesses, property managers, and installations where network connectivity is unnecessary will value the standalone controller and the ability to enroll up to 1,000 users by PIN or proximity credential.

It is less suited to multi-door enterprises or sites that require remote management, real-time audit logs, or integration with a larger security platform; organizations with those needs should consider networked access controllers or systems with software management instead.

Pros & Cons

Pros

• Complete package saves time and sourcing effort by including lock, brackets, controller, power and credentials.
• Supports three entry methods (PIN, EM card, keytag) which adds operational flexibility.
• LED on the maglock and IP65-rated exit button improve usability and weather resistance for exterior push-to-exit components.
• Standalone design avoids software setup and network configuration for straightforward installs.

Cons

• Because the system is standalone with no software, it lacks remote management and centralized event logging for larger deployments.
• EM 125kHz credentials used here are older technology compared with newer smartcard standards.

Specifications

Lock type	Indoor 300lb electric magnetic lock with LED sensor
Controller	VIS-MINI-CNTRL 1-door standalone mini controller (no software)
Keypad/Reader	VIS-3002 indoor digital touch keypad + reader, Wiegand 26
User capacity	Up to 1,000 users (PIN, EM card, keytag)
Power	VISCP200 12V 2A UL listed power supply
Request-to-exit	VIS-7001 stainless steel round button, IP65 waterproof
Credentials included	10 proximity cards and 10 keyfobs, 125kHz 26-bit

Our Verdict

The Visionis FPC-5323 is a practical, good-value kit for single-door installations that prioritize ease of installation and local control. It bundles the major components needed for a quick deployment and supports multiple entry methods for up to 1,000 users, making it particularly useful for small businesses and facilities without networked access requirements. Choose a different solution only if you need centralized logging or remote management.

Frequently Asked Questions

Does this kit require additional software?
No, the VIS-3002 and VIS-MINI-CNTRL operate as a standalone system and do not require software or a network connection.

How many users can be stored?
The system supports enrollment of up to 1,000 users across PINs, EM cards and keytags.

Can the maglock be used on an outward swinging door?
The FPC-5323 is designed for doors that open in; outward-swing installations may need different mounting hardware or a differently configured lock.
