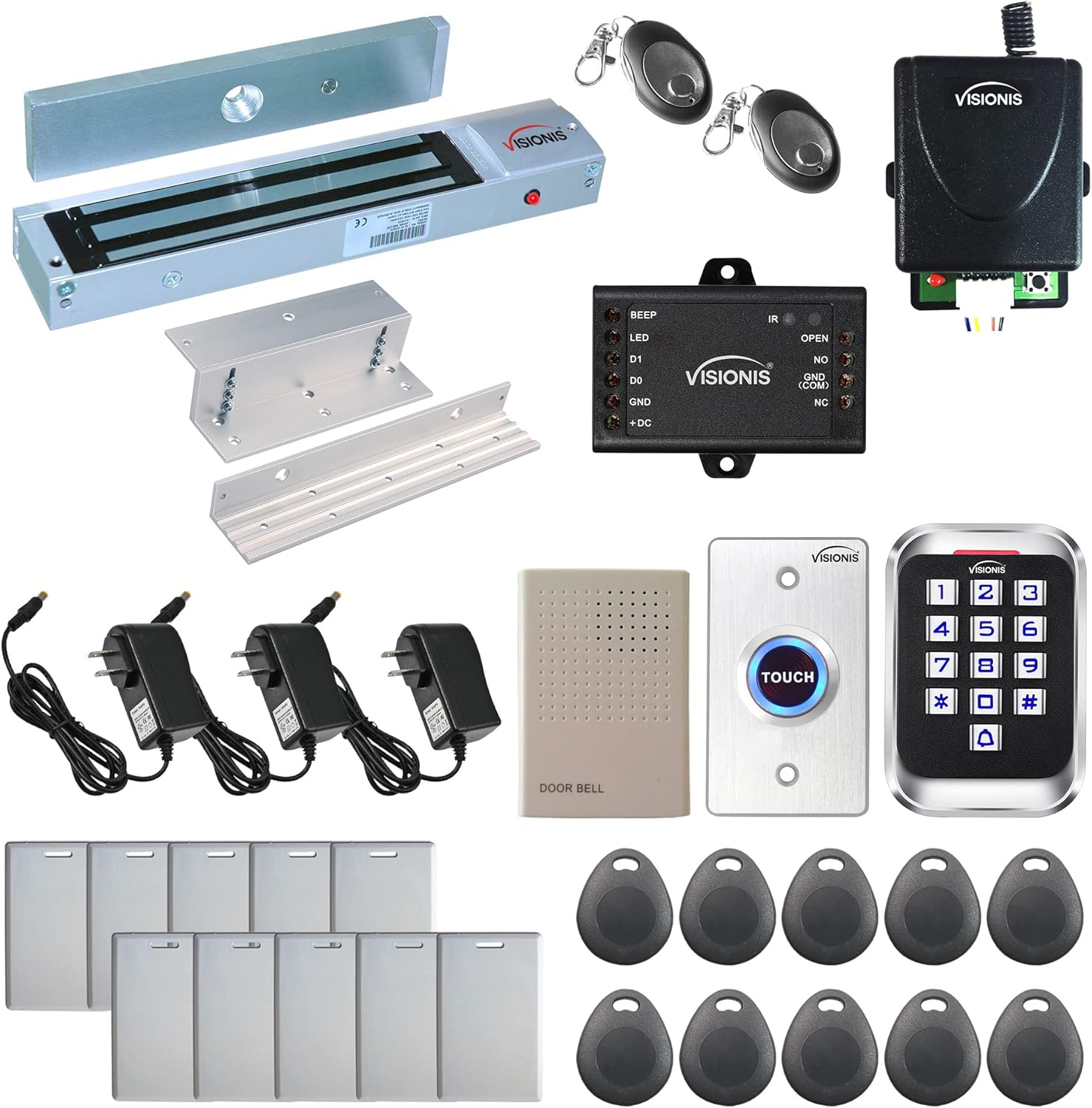

Visionis FPC-5629 One Door 600lb Maglock Access Control Kit - Complete

In this review of the Visionis FPC-5629 kit, the bottom line is straightforward: it is a complete one-door access control solution for doors that open inward, ideal for small businesses or secured offices that need a dependable maglock package. The kit combines a 600lb LED maglock with mounting brackets, an IP68 metal keypad/reader with built-in mini controller, wireless remotes and a wired doorbell, giving an installer nearly everything needed to secure and operate a single entry without additional software. It is most notable for bundling hardware for multiple entry methods in one box.

Key Features

• 600lb Maglock: The VIS-ML600LED provides a strong holding force with an LED sensor that confirms lock status visually for quick on-site checks.
• Mounting Hardware Included: The VIS-ZL600 L and Z bracket set allows installation on most inward-swinging doors without sourcing separate brackets.
• IP68 Metal Keypad/Reader: The VIS-3004 keypad is weather resistant and supports three methods of entry, making it suitable for indoor or exposed outdoor mounting.
• No-Software Controller: The VIS-MINI-CNTRL manages one door and up to 1,000 users with Wiegand 26 output, avoiding the need for PC software or networked configuration for basic access control.
• Multiple Entry Options: The kit includes EM cards, keyfobs, fixed-code wireless remotes and a doorbell, providing card, fob, PIN and remote entry versatility for staff and visitors.
• Power and Exit Hardware: Three UL listed 12V 1A power supplies and an ultra-thin exit button plus hardwire doorbell simplify powering and daily operation.

Who It's For

The FPC-5629 is aimed at small offices, retail locations, clinics and other single-door installations that need a turnkey maglock solution with multiple entry methods and minimal configuration. Installers who prefer a standalone controller and physical keying options will appreciate that the package includes power supplies, mounting brackets and both cards and keyfobs for users.

It is less suitable for large multi-door sites, enterprise systems that require centralized software or audit trails, or installations that need high-end network management. For those scenarios a networked controller or software-based access system would be a better fit.

Pros & Cons

Pros

• Comprehensive kit reduces the need to buy separate components and speeds up installation.
• IP68 rated metal keypad/reader offers durable outdoor use and the mini controller supports up to 1,000 users without software.
• Includes multiple entry options: EM cards, keyfobs, PIN, wireless remotes and a doorbell for visitor notification.
• LED sensor on the maglock and UL listed power supplies help with safety and code-conscious installations.

Cons

• Standalone design lacks centralized logging or networked management for multi-door sites.
• Wireless remotes use fixed code transmitters, which may be less flexible than rolling-code options for some users.

Specifications

Lock Type	600lb electric maglock with LED sensor
Keypad/Reader	VIS-3004 IP68 metal anti-vandal keypad with Wiegand 26
Controller	VIS-MINI-CNTRL 1-door standalone, up to 1,000 users
Power	3 x VISCP100 12V 1000mA UL listed power supplies
Wireless Kit	VIS-8004 receiver 315MHz + 2 VIS-8005 fixed-code transmitters
Credentials Included	10 proximity cards and 10 keyfobs, 26 bit 125kHz
Exit & Doorbell	VIS-7005 ultra-thin exit button and VIS-8006 hardwire doorbell

Our Verdict

The Visionis FPC-5629 is a strong value for single-door installations that need a complete, no-software access control kit with multiple entry methods. It saves time by including a maglock, brackets, keypad/reader, power supplies, credentials, remotes and exit hardware, and the IP68 keypad plus LED lock indicator make it a durable choice for many small commercial settings. Choose this kit when you need reliable physical access control without network complexity.

Frequently Asked Questions

Can the kit support users without a PC?
The VIS-MINI-CNTRL is a standalone controller that programs and stores up to 1,000 users without any PC software.

Is the keypad suitable for outdoor use?
Yes, the VIS-3004 keypad is rated IP68 and uses a metal anti-vandal enclosure for exposed installations.

Do the remotes require a separate receiver?
No, the kit includes a VIS-8004 1-channel receiver and two pre-coded VIS-8005 transmitters for wireless entry up to about 160ft in open conditions.
