Visionis FPC-5645 One Door 1200lbs Maglock Access Control Kit

In this review of the Visionis FPC-5645 kit, the bottom line is simple: it is a complete, entry-level one door access control solution built for inward-swinging doors that need a high-holding maglock and a durable outdoor keypad. The kit combines a 1200lbs LED maglock, a slim IP68 metal anti-vandal keypad/reader with built-in doorbell and standalone mini controller, plus power and exit hardware, making it ideal for small offices, retail backrooms, and single entry points where integrators want a no-software, self-contained system.

Key Features

• 1200lbs Maglock: Provides a high holding force for inward-swinging doors and includes L and Z brackets to fit common mounting setups.
• IP68 Metal Keypad/Reader: Slim, anti-vandal reader rated for indoor and outdoor use that accepts EM cards and supports three entry methods for flexible access.
• Standalone Mini Controller: One door controller requires no software and manages up to 1,000 users for straightforward setup and maintenance.

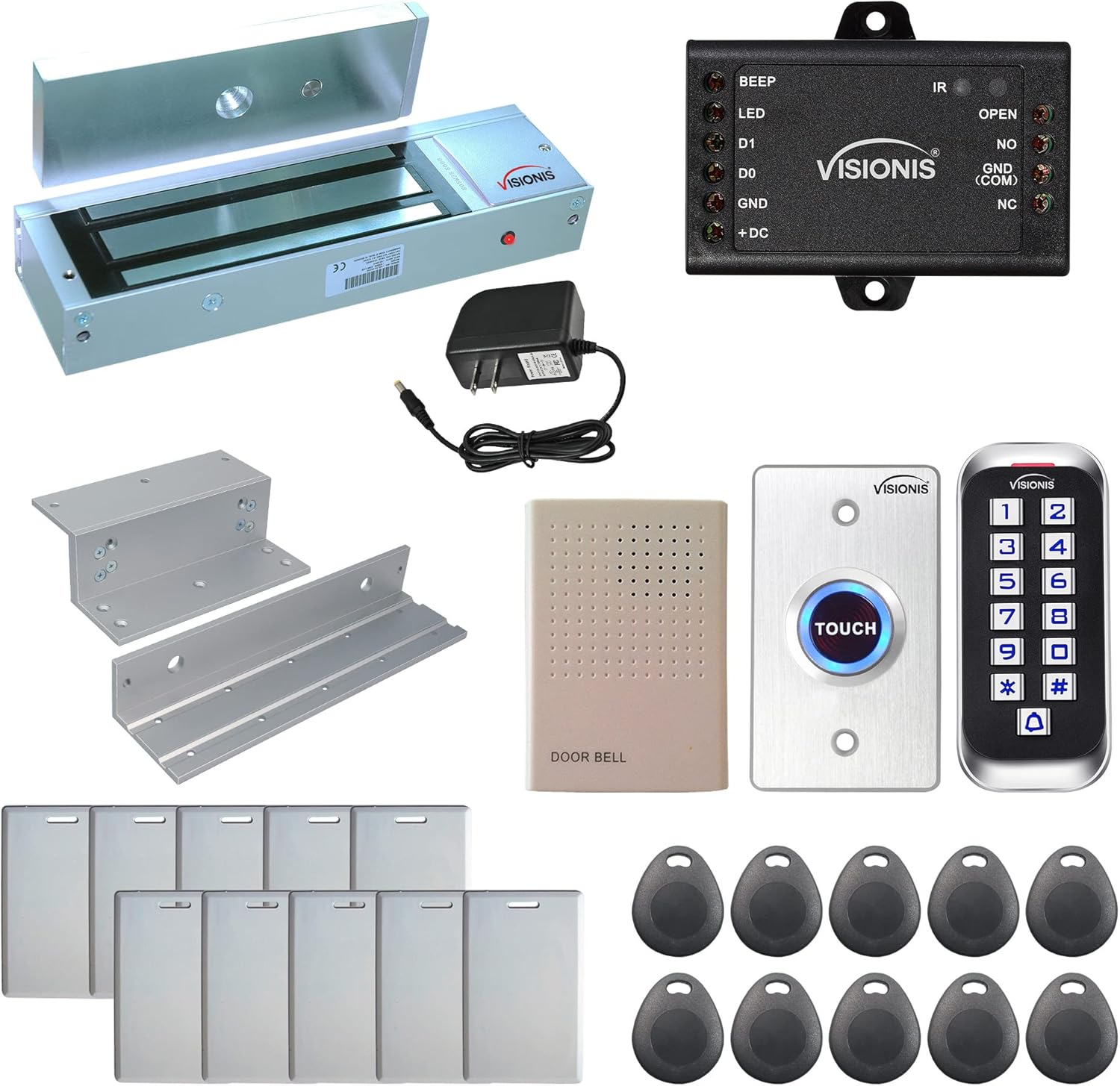

• Complete kit components: Includes a UL listed 12V 2A power supply, exit push button, external doorbell wiring accessory, and mounting hardware to reduce additional purchases.
• Credentials included: Ten proximity cards and ten keyfobs (26 bit 125kHz) are bundled so basic roll-out is ready at delivery.

Who It's For

This kit is best for small businesses, property managers, and installers who need a single door access control package that works out of the box without PC software. The IP68 rated keypad and metal construction make it a sensible choice for exterior entrances or semi-exposed locations where vandal resistance and weather sealing matter.

It is less appropriate for multi-door enterprise deployments or sites that require advanced networked management, event logging to a central server, or higher-level credential formats; those buyers should consider networked controllers or kits designed for centralized administration.

Pros & Cons

Pros

• All-in-one kit includes lock, brackets, power supply, controller, exit button, doorbell accessory, and credentials for fast installation.
• Durable, slim IP68 keypad/reader with anti-vandal housing and a built-in doorbell feature improves visitor handling at the door.
• No software required and support for up to 1,000 users simplifies configuration without a PC.
• 1200lbs maglock with LED sensor and mounting brackets covers common inward-swinging door installations.

Cons

• Standalone design means limited central monitoring and no server-side logging for larger multi-door systems.
• Uses EM 125kHz credential format which may not meet organizations seeking higher-security card technologies.

Specifications

Maglock holding force	1200lbs
Keypad/Reader rating	IP68 metal anti-vandal
Controller type	1 door standalone mini controller, no software
User capacity	Up to 1,000 users
Power supply	12V 2A UL listed
Included credentials	10 proximity cards + 10 keyfobs, 26 bit 125kHz EM
Exit device	Ultra thin push touch exit button with LED (NC COM NO)

Our Verdict

The Visionis FPC-5645 is a well-rounded one door kit that delivers strong holding power, a vandal-resistant outdoor reader, and all necessary accessories for a single controlled entrance. It represents solid value for small sites that need a robust standalone system without network complexity, though larger installations or those requiring more advanced credentials will want a different solution.

Frequently Asked Questions

Does this kit support outdoor installation?
The keypad/reader is IP68 rated and metal anti-vandal, making it suitable for outdoor use while the maglock is intended for indoor mounting on inward-swinging doors.

How many users can the controller handle?
The included mini controller supports up to 1,000 users for credential enrollment and access management without software.

Are credentials included?
Yes, the kit ships with ten proximity cards and ten keyfobs using 26 bit 125kHz EM format for immediate deployment.
