Visionis Two Door Access Control Kit - 10,000 User TCP/IP Wiegand

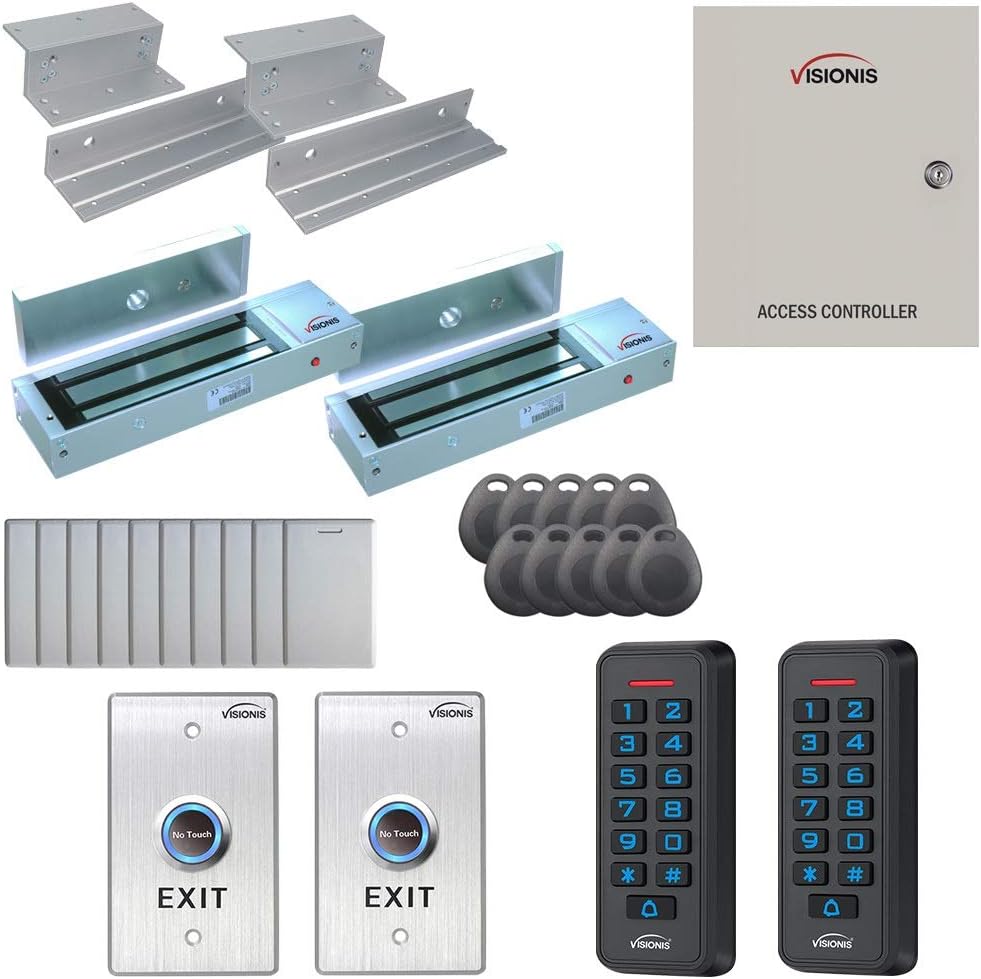

In this review of the Visionis two door access control kit, the bottom line is simple: install it when you need a complete, networked door access solution for small offices or multi-door retail sites that supports up to 10,000 card or keyfob users. The package combines a two-door TCP/IP controller with desktop software, two 1200lb maglocks, weatherproof keypad/card readers, and exit buttons so the installer gets a working system out of the box. The single biggest reason to buy is the breadth of included hardware and credentials, which reduces the number of separate purchases required to deploy a two-door access system.

Key Features

• Two-door controller: The VS-AXESS-2ETL panel includes a cabinet, power supply and desktop software so you can manage up to 10,000 card or keyfob users over TCP/IP without additional controller hardware.
• High holding force locks: Two VIS-ML1200LED magnetic locks provide 1200lbs holding strength with LED sensor feedback for secure interior door installations.
• Weatherproof readers: The VIS-3008 outdoor IP66 rated card reader and keypad supports 125KHz EM cards, Wiegand 26-37 bits and standalone modes for flexible installation on exterior doors.
• Credential pack: Ten proximity cards and ten keyfobs are included so initial enrollment and testing can begin immediately without buying extra credentials.
• Request-to-exit hardware: Two stainless steel no-touch VIS-7013 exit buttons with adjustable time delay and LED make egress convenient and code friendly.
• Keypad PIN limit note: The kit allows up to 65 PIN users on the keypad option while supporting up to 10,000 users via card or keyfob, which helps plan credential distribution.

Who It's For

This package is best for installers, small business IT teams and property managers who need a finished two-door access control system delivered with most necessary parts. It suits interior or sheltered exterior mounting where 1200lb maglocks are appropriate and where an IP-connected controller and desktop management are preferred.

It is less suitable for projects that require more than two controlled doors, very large-scale enterprise integrations without local IT support, or sites that must rely exclusively on PIN-only authentication since the keypad PIN option is limited to 65 users.

Pros & Cons

Pros

• Comprehensive kit: includes controller, power supply, maglocks, brackets, readers, exit buttons and credentials for a near turnkey install.
• Scalable credential capacity: supports up to 10,000 card or keyfob users via the controller and software for growing sites.
• Durable components: IP66 rated outdoor readers and stainless steel no-touch exit buttons improve reliability in exterior conditions.
• High security holding force: 1200lb maglocks provide robust door retention for standard commercial interior doors.

Cons

• Keypad PIN capacity is limited to 65 users, so PIN-only deployments will be constrained unless you rely on cards or keyfobs.
• Installation requires access control wiring and some configuration of the desktop software, so nontechnical buyers may need professional setup.

Specifications

Controller	VS-AXESS-2ETL two-door TCP/IP Wiegand with cabinet and power supply
User capacity	10,000 users (card/keyfob); keypad PIN option limited to 65 users
Maglock	Two VIS-ML1200LED 1200lb indoor electric magnetic locks with LED sensor
Readers	Two VIS-3008 IP66 weatherproof card reader and keypad, 125KHz EM, Wiegand 26-37 bits
Exit buttons	Two VIS-7013 stainless steel no-touch request-to-exit with time delay
Included credentials	10 proximity cards and 10 keyfobs, 26 bit 125KHz

Our Verdict

The Visionis two door access control kit is a strong value for small businesses and installers who want a mostly complete, networked two-door solution with high holding-force maglocks and weatherproof readers. Its main selling point is the controller that supports up to 10,000 card or keyfob users, paired with robust hardware; just be aware of the 65 PIN user limit on the keypad before planning an all-PIN deployment.

Frequently Asked Questions

How many users can the system handle?
The included VS-AXESS-2ETL controller supports up to 10,000 card or keyfob users, while the keypad PIN option is limited to 65 PIN users.

Are the readers weatherproof for exterior use?
Yes, the VIS-3008 readers are rated IP66 for outdoor use, suitable for sheltered or exposed exterior mounting depending on installation practices.

Does the kit include credentials and software?
Yes, it ships with ten proximity cards, ten keyfobs and desktop management software included with the controller cabinet and power supply.
