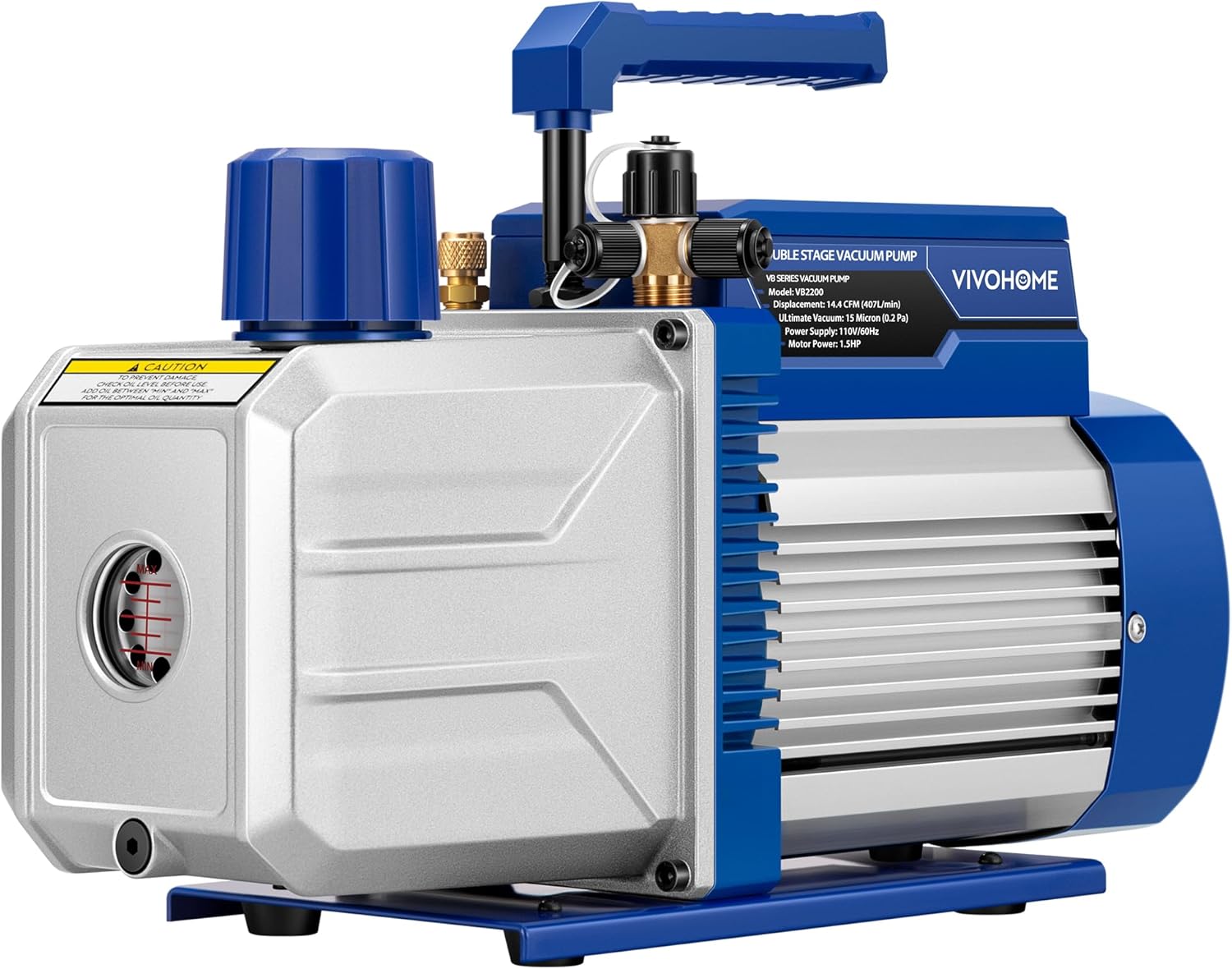

VIVOHOME 1.5 HP 14.4 CFM Dual-Stage HVAC Vacuum Pump - Reliable

In this review the VIVOHOME 1.5 HP 14.4 CFM dual-stage vacuum pump is examined for technicians and serious DIYers who need a fast, deep evacuation tool for automotive and HVAC refrigerant work. The bottom line: this pump stands out for its combination of a powerful 1.5 HP motor, a 14.4 CFM flow rate and a claimed ultimate partial pressure of 0.2 Pa, which translates to noticeably quicker pull-downs and a cleaner evacuation for systems charged with R134a, R22 and other common refrigerants.

Key Features

• High flow rate: The 14.4 CFM free air displacement moves air quickly so systems reach deep vacuum levels faster, saving time on evacuations.
• Dual-stage motor: The 1.5 HP dual-stage motor and 15 micron total pressure capability deliver a deeper vacuum than single-stage units, useful for automotive AC and refrigeration maintenance.
• Gas ballast valve: The gas ballast helps remove condensable gases from the pump chamber, improving evacuation efficiency when moisture is present.
• Safety and filtration: An exhaust oil mist filter and coarse inlet filter reduce contamination and limit oil carryover, contributing to a safer workspace and longer pump life.
• Cooling and protection: Mesh venting, T-shaped motor heat fins and a high-power cooling fan with overheating protection help maintain stable performance under load.
• User convenience: Visible oil window with scale marks, bottom oil drain valve and included twin 330 ml oil bottles make maintenance and oil changes straightforward.

Who It's For

This pump is best for HVAC technicians, automotive AC specialists and serious hobbyists who need a durable, portable unit that can handle refrigerants like R134a, R12, R22, R410a and R502 during system evacuation, charging, or leak repair. The combination of multiple inlet fittings (1/4" SAE, 1/2" ACME, 3/8" SAE) and robust flow rate suits both shop and field work.

Less suitable for casual users who only need occasional small vacuum jobs or quieter, very compact units for light home use; if minimal noise or the smallest footprint is the top priority, a smaller single-stage pump or a quieter model may be preferable.

Pros & Cons

Pros

• Strong evacuation performance from the 1.5 HP dual-stage motor and 14.4 CFM flow.
• Practical safety features including exhaust oil filter, inlet coarse filter and anti-backflow design.
• Thoughtful usability with visible oil window, oil drain valve and included oil bottles.
• Multiple inlet fittings and gas ballast valve increase versatility for different refrigerants and tasks.

Cons

• Not the smallest or quietest option for occasional home users who prioritize compactness and low noise.
• Requires routine oil maintenance to preserve ultimate vacuum performance, which is typical for this class.

Specifications

Motor Power	1.5 HP
Free Air Displacement	14.4 CFM (408 L/min)
Ultimate Partial Pressure	0.2 Pa
Vacuum Total Pressure	15 microns
Motor Speed	3456 R/min
Voltage	110V
Included Accessories	Two 0.35 qt (330 ml) vacuum oil bottles

Our Verdict

The VIVOHOME 1.5 HP dual-stage vacuum pump is a strong value for technicians and advanced DIYers who need reliable, fast evacuation across automotive and HVAC systems; its 14.4 CFM output, durable construction, filtration features and included oil make it a practical, cost-effective choice for daily shop use where deeper vacuums and steady operation matter.

Frequently Asked Questions

Which refrigerants is this pump compatible with?
This pump is suitable for systems using R134a, R12, R22, R410a, R404 and R502 as stated in the product details.

Does it include vacuum oil and how is oil checked?
Yes, two 330 ml oil bottles are included and the pump has a visible oil window with scale marks for quick level checks.

What inlet fittings are provided?
The pump accepts 1/4" SAE, 1/2" ACME and 3/8" SAE inlet connections for broad compatibility with common service hoses and adapters.
