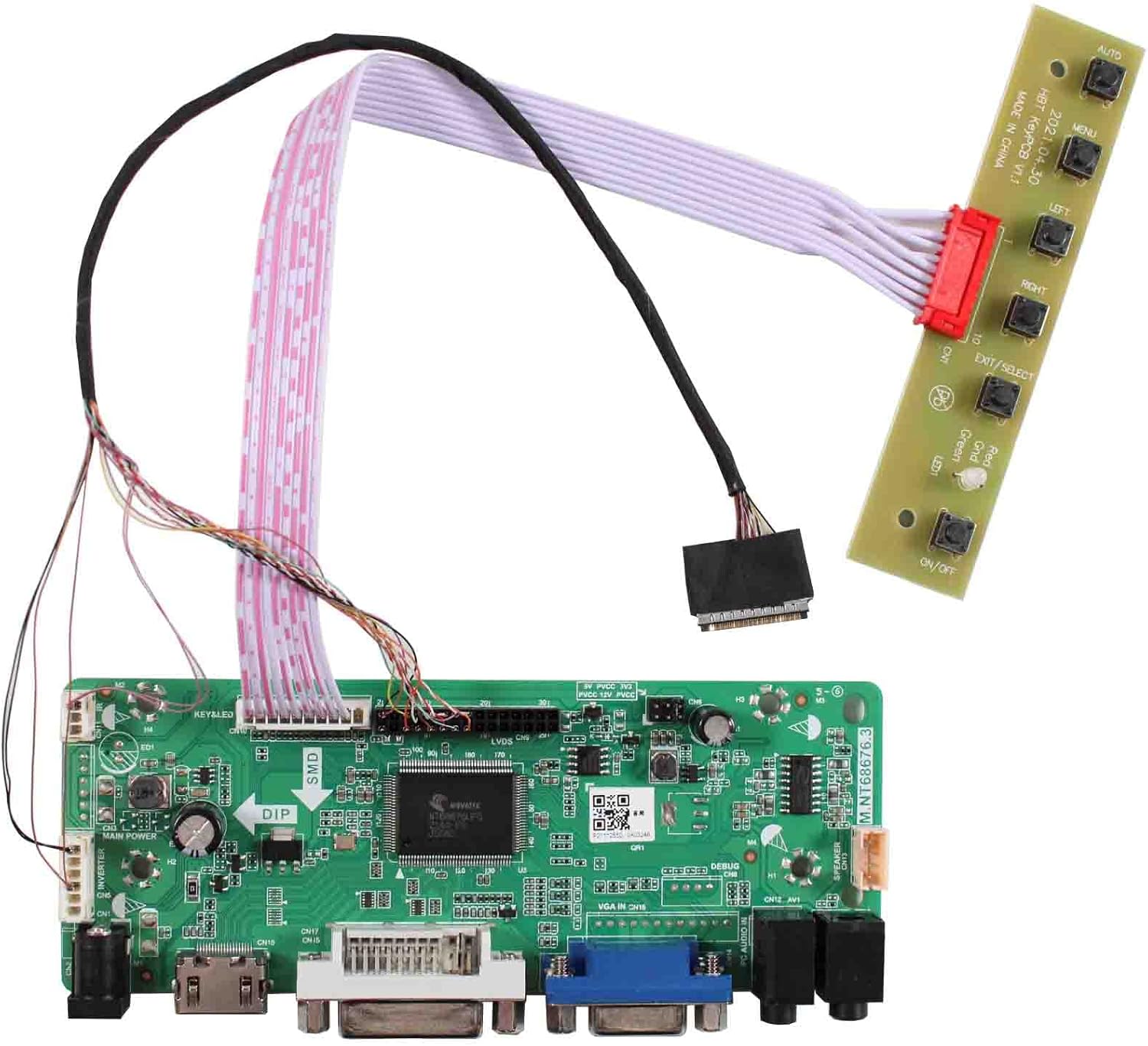

VSDISPLAY DVI VGA Audio LCD Controller Board for 8.9ft 1024x600

In this review of the VSDISPLAY DVI VGA Audio LCD Controller Board, the bottom line is simple: this board is a practical, affordable way to bring an 8.9' 1024x600 laptop panel back to life or repurpose it in small projects. The reviewer found it especially useful for technicians and hobbyists who need a compact controller that supports both DVI and VGA inputs and includes audio and an on-board keyboard. It is not a finished monitor but a flexible LVDS interface solution that works when paired with a compatible LVDS cable, inverter where needed, and a reliable 12V power supply.

Key Features

• Multi-input support: The board accepts DVI and VGA inputs for easy connection to legacy and modern video sources.
• Wide panel compatibility: It is designed to work with many 8.9' 1024x600 LCD panels such as N089L6 and HSD089IFW1 families, so swapping panels is straightforward.
• Integrated audio: A built-in audio path allows simple sound output when the connected source provides audio over the board.
• Compact power range: Operates on 10~24V DC but performs best with a recommended 12V, 2A+ adapter for reliable operation.
• Onboard OSD and keyboard: The supplied wired keyboard exposes ON/OFF, MENU, LEFT, RIGHT, EXIT/SELECT and AUTO controls for easy panel adjustments.

Who It's For

This controller is aimed at electronics technicians, refurbishers, and makers who need a cost-effective LVDS controller for 8.9' 1024x600 panels. It is ideal for repairing laptop displays, building compact custom displays, or integrating a salvaged panel into a DIY monitor or kiosk.

It is not for users who expect a plug-and-play consumer monitor with enclosure, warranty on the panel itself, or beginners who are uncomfortable matching LVDS pinouts and handling power requirements. Those users should look for a complete monitor kit or factory replacement display assembly.

Pros & Cons

Pros

• Wide compatibility with multiple 8.9' 1024x600 panel models makes it versatile for repairs and projects.
• Multiple video inputs (DVI and VGA) plus audio give flexible connectivity for older and newer sources.
• Compact board design and included LVDS cable and wired keyboard speed setup and testing.
• Supports an extended operating voltage range, useful for different power setups.

Cons

• Requires correct LVDS cable and possible inverter board for backlight, so some technical setup is needed.
• The keyboard uses a wired connection and battery is not included, so a small extra part may be required for long-term use.

Specifications

Compatible Panel Size	8.9' 1024x600 LCD panels
Supported Panel Models	N089L6-01 / N089L6-L02 / N089L6-L03 / HSD089IFW1-A / B089AW01 V3 / LP089WS1
Inputs	DVI and VGA plus Audio
Operating Voltage	10~24V DC (recommend 12V, 2A+ adapter)
Included Accessories	LVDS Cable and Wired Keyboard (battery not included)
OSD Languages	English, French, German, Italian, Spanish, Portuguese, Japanese, Korean (optional)

Our Verdict

The VSDISPLAY DVI VGA Audio LCD Controller Board is a pragmatic choice for technicians and hobbyists who need reliable LVDS control for 8.9' 1024x600 panels. Its multiple inputs, broad panel support, and included LVDS cable and keyboard deliver strong value for repair and DIY display projects, provided the user is comfortable with matching LVDS connectors and supplying a suitable 12V adapter.

Frequently Asked Questions

Will this board power the panel directly?
The board requires an external 10~24V DC supply and the reviewer recommends a 12V, 2A or greater adapter; a separate inverter may be needed for some panel backlights.

Which panels are confirmed compatible?
It works with many 8.9' 1024x600 models such as N089L6 variants, HSD089IFW1-A series, B089AW01 V3 and LP089WS1, but users must verify LVDS pinout and cable compatibility.

Does the package include everything to test a panel?
The package includes the controller board, an LVDS cable and a wired keyboard, which are sufficient for basic testing and setup; batteries for the keyboard are not included.
