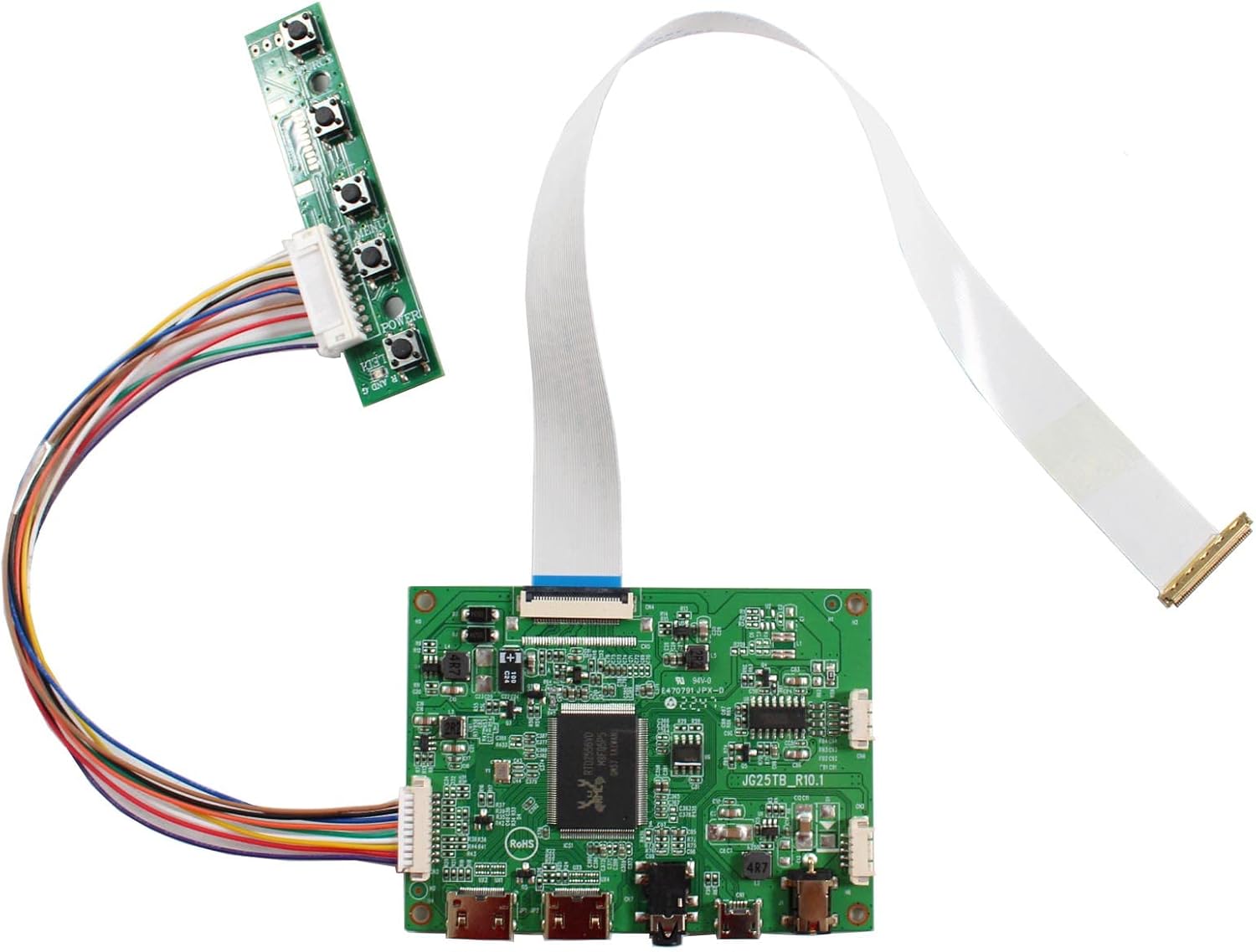

VSDISPLAY LCD Controller Board for 12.6in 1920x515 LCD - Compact 12V

In this review the VSDISPLAY LCD Controller Board for 12.6in 1920x515 LCD is examined for hobbyists and technicians who need a compact driver board to revive or reuse a 12.6in panel. The bottom line: this is a no-frills, purpose-built controller that provides the essential inputs and power needed to run a 12.6in 1920x515 panel, with a small 82mm x 60mm footprint that makes it easy to fit into custom enclosures. Our review focuses on compatibility, connector layout, and the practicalities of installing the board into a repair or DIY display project.

Key Features

• Panel compatibility: Designed specifically for 12.6in LCD screens with a 1920x515 resolution so users get a direct match for panels of that size and pixel count.
• Input options: Accepts Input Signal 1 and 2 plus USB audio for simple connections to common controller sources, reducing the need for extra adapters.
• Display output: Provides a 30Pin eDP output which is the standard interface for many modern laptop and tablet panels and simplifies wiring to the LCD.
• Compact power: Runs from a single 12Vdc power supply via a 3.5mm x 1.5mm DC connector, making power sourcing straightforward for bench or portable setups.
• Onboard audio: Includes a speaker 5VDC USB connection so basic sound can be supported without a separate amplifier in simple builds.
• Small footprint: With board dimensions of 82mm x 60mm x 5mm it fits into tight spaces for conversions or repairs.

Who It's For

The VSDISPLAY controller board is best for electronics hobbyists, repair technicians, and makers who already have a compatible 12.6in 1920x515 LCD panel and need a compact driver board to test or reuse that panel. It is practical for custom monitor builds, laptop display replacements, or embedded projects where a small PCB and simple 12V power are important.

Those who should look elsewhere include buyers who need a full kit with a screen, cables, or advanced features such as multiple video inputs beyond the supported signals, integrated power supplies, or touchscreen controllers. This product is the controller board only and does not include the LCD panel itself.

Pros & Cons

Pros

• Compact size makes the board easy to mount inside slim enclosures or retrofit projects.
• Direct 30Pin eDP output provides a standard interface for many laptop panels and simplifies wiring.
• Simple 12Vdc power input via 3.5mm x 1.5mm connector keeps power requirements minimal and easy to manage.
• Includes speaker USB audio support helpful for basic sound without extra peripherals.

Cons

• Sold as the controller board only, so buyers must already have a compatible 12.6in LCD panel and any required cables.
• Limited to the listed inputs and outputs, so it may not suit setups needing extra video formats or integrated touchscreen support.

Specifications

Product	LCD Controller Board
Compatible Panel Size	12.6in
Supported Resolution	1920x515
Output Connector	30Pin eDP
Power Supply	12Vdc via 3.5mm x 1.5mm DC connector
Speaker	5VDC USB
Board Dimensions	82mm x 60mm x 5mm

Our Verdict

The VSDISPLAY controller board is a practical, compact solution for anyone needing a dedicated driver for a 12.6in 1920x515 panel. It offers the essential connectors, simple 12V power, and a small footprint that make it good value for repair or DIY display projects, provided you already own the correct LCD panel and accept the modest I/O set.

Frequently Asked Questions

Does this board include the LCD screen?
No, the product is the controller board only and does not include the 12.6in LCD screen.

What power input does the board require?
It requires a 12Vdc power supply connected via a 3.5mm x 1.5mm DC connector.

What display connector is used for the panel?
The board uses a 30Pin eDP output intended for compatible laptop-style panels.
