VSDISPLAY VGA DVI Audio LCD Driver Board for 15.4-17in Panels

In this review the focus is on a compact LCD controller board that adapts 15.4' and 17' 30-pin LVDS laptop panels to standard video sources. The reviewer found the board best for DIY monitor rebuilds and laptop screen repurposing because it supports both DVI and VGA inputs, includes audio pass-through, and runs from a common 12Vdc power adapter. If you need a reliable controller for 1680x1050 1CCFL panels such as LTN154P1 or LTN170WP, this board provides the core functionality without extra complexity.

Key Features

• DVI and VGA video inputs: Lets the panel accept common video sources so the screen can be reused as a standalone monitor or integrated into custom enclosures.
• Audio input and output: Built-in audio routing and speaker connector simplify adding sound without extra adapters or amplifiers.
• Works with many 30-pin LVDS panels: Direct compatibility with a long list of 15.4' and 17' 1680x1050 panels avoids hunting for an exact controller match.
• 12Vdc power requirement: Uses a standard 12V adapter (more than 2A recommended), which is easy to source and supports stable operation, including reports of working with a 5A brick.
• Compact board size: At 125mm x 58mm x 17mm the controller fits tight spaces inside custom builds or replacement setups.

Who It's For

This board is aimed at hobbyists, repair technicians, and small-scale refurbishers who want to convert laptop panels into external monitors or replace a failed controller in a notebook LCD. The combination of LVDS support and both DVI and VGA means it suits older machines and legacy video sources often found in repair work.

It is less suitable for users who need integrated high-brightness backlight drivers beyond 1CCFL or who expect plug-and-play USB power; the board requires a dedicated 12Vdc adapter and a matching 30-pin cable. Buyers who need a different panel resolution or a different connector type should look elsewhere.

Pros & Cons

Pros

• Works with a wide set of 15.4' and 17' 30-pin LVDS panels, reducing compatibility guesswork.
• Includes both DVI and VGA inputs plus audio so it covers most legacy video setups.
• Compact size and straightforward wiring make installation in custom enclosures convenient.

Cons

• Requires a separate 12Vdc power adapter (over 2A) and the proper 30-pin cable, so it is not fully plug-and-play out of the box.

Specifications

Our Verdict

The VSDISPLAY controller board is a practical, no-frills solution for repurposing compatible 15.4' and 17' 1680x1050 laptop panels. It delivers reliable video compatibility with both DVI and VGA and convenient audio routing, making it good value for repair jobs and DIY monitors so long as you supply a proper 12V adapter and the matching 30-pin cable.

Frequently Asked Questions

Will this board power the panel directly?
It requires a separate 12Vdc power adapter (more than 2A recommended) and provides the controller power; the inverter for the CCFL backlight is included in the packing list.

Which panels are supported?
Supported panels include many 15.4' and 17' 30-pin LVDS models such as LTN154P1, LTN154P2, B154SW01, LTN170WP and LP171W02 at 1680x1050.

Does it include cables?

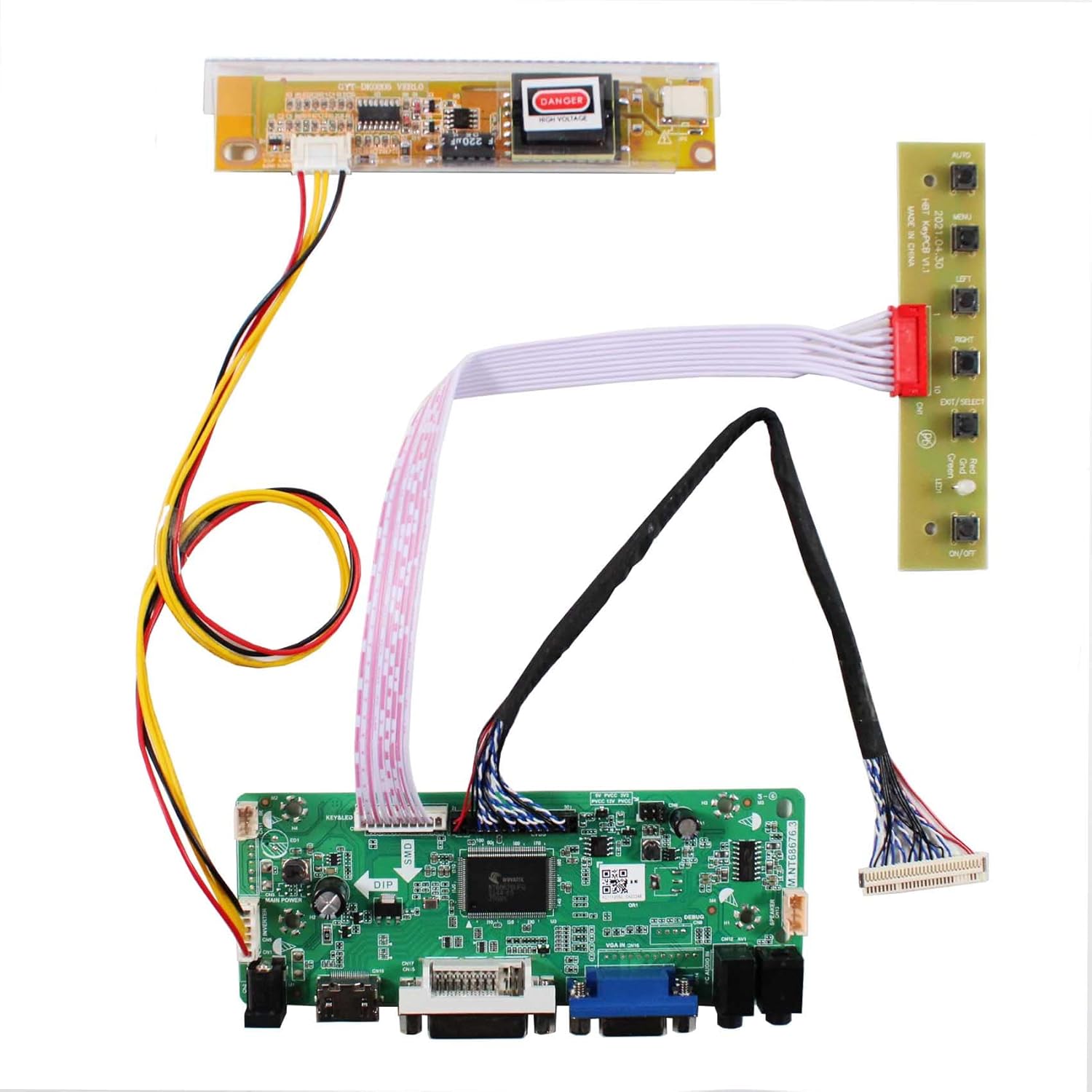

The package lists a 30-pin signal cable, a 1CCFL inverter board, and a keyboard with cable; a separate 12V power adapter is needed.
