VSDISPLAY VGA DVI Audio LCD Driver Board for 17in 1920x1200 - Reliable

In this review the VSDISPLAY VGA DVI Audio LCD Driver Board is judged as a practical replacement board for 17in 1920x1200 1CCFL panels. It is best for hobbyists and repair technicians who need a compact controller that accepts DVI and VGA inputs and provides audio pass-through, and the single biggest reason to buy is compatibility with a wide list of LVDS 30-pin LCD panels so you can revive an otherwise working LCD panel without replacing the whole assembly.

Key Features

• Panel compatibility: Works with many 17in 1920x1200 1CCFL 30-pin LVDS panels so users can match a common laptop or monitor panel and avoid full display replacement.
• Video inputs: Includes both DVI and VGA input options so it can connect to modern and older video sources without extra adapters.
• Audio handling: Provides audio input and speaker connector output so the board can pass sound through the display when the panel has built-in speakers.
• Power requirement: Runs from a 12Vdc power adapter rated over 2A which keeps power supplies simple and widely available for bench repairs.
• OSD controls: On-screen display supports brightness, contrast and multiple languages so basic calibration and adjustments are straightforward.
• Compact size: The 125mm x 58mm x 17mm board is small enough to fit inside many enclosure cavities during DIY repairs or conversions.

Who It's For

The board is aimed at repairers and tinkerers who already have a 17in 30-pin LVDS panel such as LP171WU1, LTN170U1, LTN170CT05 or similar and want a cost effective way to restore video and audio without replacing the entire monitor. It is also useful for custom monitor builds and retrofitting laptop panels into DIY displays.

It is not ideal for users who lack basic electronics experience or who need a turnkey monitor with enclosure, warranty and AC power built in; those buyers should consider a complete replacement monitor rather than a controller board that requires matching the correct panel and providing an appropriate 12V power supply.

Pros & Cons

Pros

• Wide compatibility with many 17in 1920x1200 30-pin LVDS panels makes it flexible for repairs.
• Both DVI and VGA inputs and audio I/O cover common connection needs without adapters.
• Small footprint and included cables and inverter facilitate installation in DIY projects.

Cons

• Requires a separate 12Vdc power adapter rated over 2A, which must be sourced and matched by the user.

Specifications

Supported panels	17in 1CCFL 30-pin 1920x1200 (LP171WU1, LTN170U1, LP171WU3, B170UW01, LTN170CT0x)
Video inputs	DVI and VGA
Audio	Audio input and speaker connector output
Power	12Vdc, more than 2A required
Standby power	<1W (standby when no input signal)
Board dimensions	125mm x 58mm x 17mm

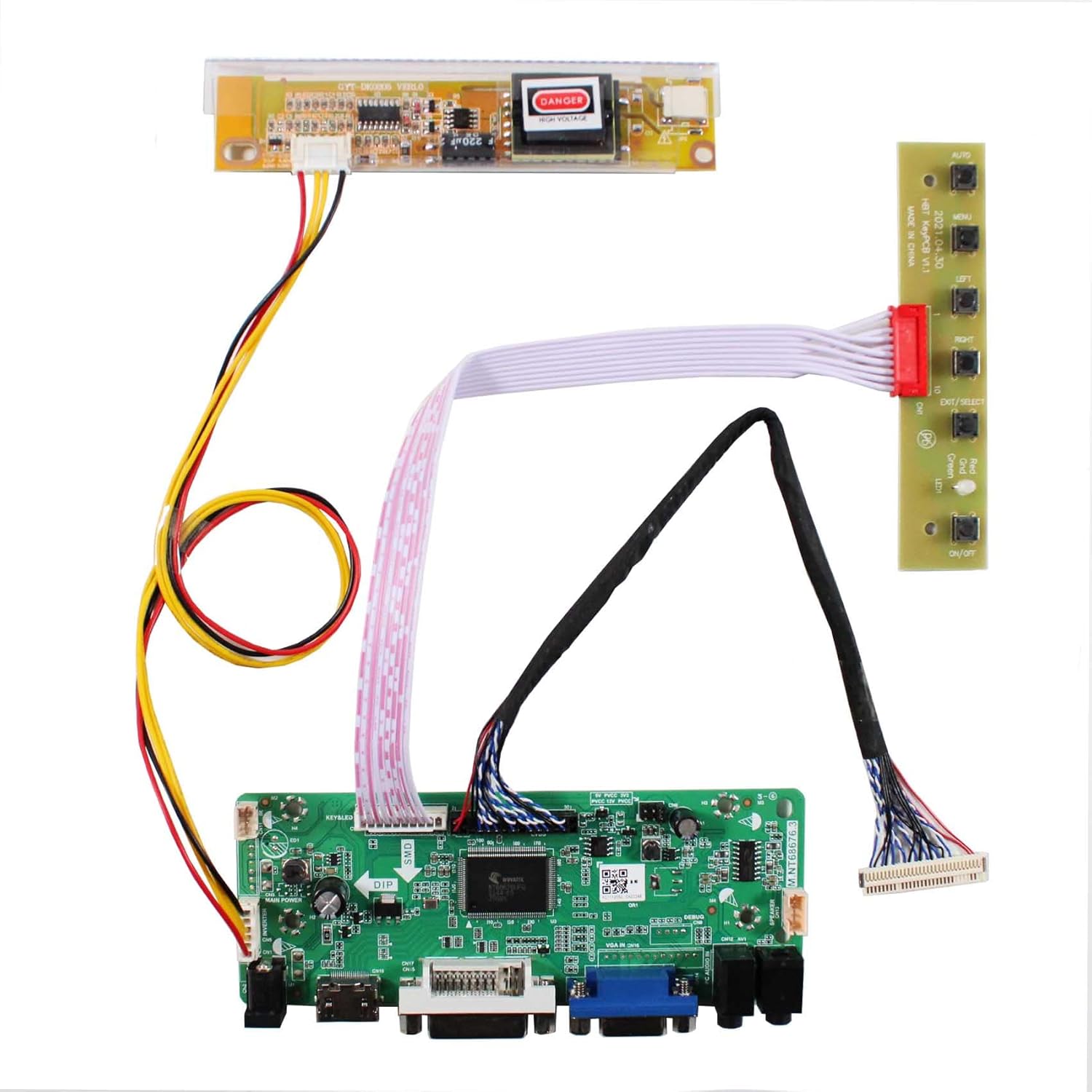

Packing list	Controller board, 1CCFL inverter board, 30-pin signal cable, keyboard with cable

Our Verdict

The VSDISPLAY controller board is a practical, value-oriented option for anyone looking to reuse a compatible 17in 1920x1200 LVDS panel. It delivers the expected functionality: DVI/VGA inputs, audio routing and OSD controls, and arrives with the inverter and cables needed for most installs. Choose this if you can match the panel and supply a proper 12V adapter; it saves money compared with replacing an entire display and performs reliably for repair and DIY projects.

Frequently Asked Questions

Will this board power the backlight?
It includes a 1CCFL inverter board for the panel backlight but requires an external 12Vdc power adapter with at least 2A capacity to operate.

Which panels are confirmed compatible?
Compatible panels listed include LP171WU1, LP171WU2, LP171WU3, B170UW01, LTN170U1, LTN170U2 and several LTN170CT0x 30-pin 1920x1200 panels.

Does it include cables and controls?
Yes, the package includes the controller board, 1CCFL inverter board, a 30-pin signal cable and a keyboard with cable for OSD control.
