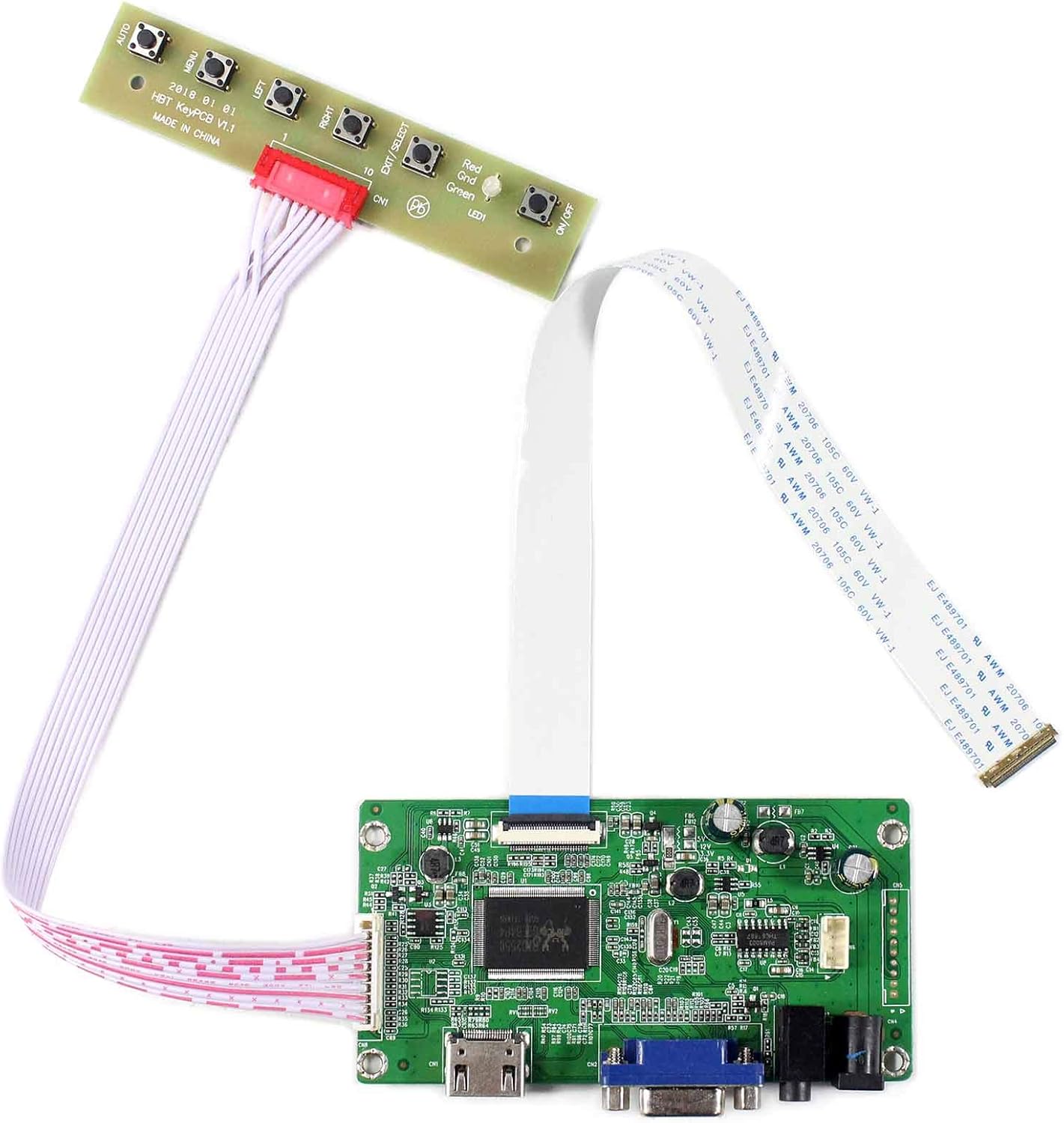

VSDISPLAY VGA LCD Controller Board for 1920x1080 30Pin eDP - Versatile

In this review the VSDISPLAY VGA LCD controller board is judged as a practical solution for DIY monitor projects and laptop screen replacements. It is aimed at hobbyists and technicians who want to reuse 30pin eDP WLED panels up to 1920x1080 without buying a full new display; the single biggest reason to buy is compatibility with a long list of 11.6' to 17.3' 1080p laptop panels, which makes it an economical way to convert or repair screens. The board arrives with signal cables and a keyboard cable, and supports audio I/O and on-screen controls for quick setup.

Key Features

• Wide panel compatibility: Works with many 11.6' to 17.3' 1920x1080 30pin eDP screens so users can reuse popular laptop panels for monitors or repairs.
• Standard power requirement: Runs from a common 12Vdc 2A or higher adapter, keeping power sourcing simple for bench use and second-monitor builds.
• Audio support: Includes PC-audio input and speaker output plus earphone connection so the converted panel can deliver sound without extra hardware.
• On-screen controls (OSD): Built-in OSD provides brightness, contrast and volume adjustments in English to fine-tune the panel without external tools.
• Compact form factor: The board measures about 107mm x 55mm x 16mm, making it easy to mount in custom enclosures or behind the panel for tidy installations.
• Complete connector set: Includes two signal cables (E000202 and E000203) and a keyboard cable, reducing the need to source matching harnesses separately.

Who It's For

This board is best for electronics hobbyists, repair technicians, and makers who want to convert a 30pin eDP WLED laptop panel into a standalone monitor or replace a failed laptop controller. Its wide compatibility with N116, N133, B140, B156 and N173 series panels covers most common 1920x1080 laptop screens, which simplifies parts matching.

It is not the right choice for users who need an all-in-one kit with a power adapter included, since the package does not contain the 12V power supply. Also, those who require touch input or non-eDP panels should look for a different controller designed specifically for those interfaces.

Pros & Cons

Pros

• Very good functionality with many supported 1080p laptop panels, ideal for second-monitor builds.
• Includes signal cables and keyboard cable, reducing setup friction for most panels.
• Compact board size and English OSD make installation and adjustment straightforward.
• Audio I/O is built in, so screens can provide sound without extra converters.

Cons

• Power supply is not included, and customers report mixed results when selecting adapters, so an appropriate 12Vdc 2A+ adapter must be chosen carefully.
• Limited to 30pin eDP WLED panels and does not support touch or other connector types.

Specifications

Board model	VS-RTD2556HV-V1
Panel interface	30pin eDP WLED
Supported resolutions	1920 x 1080 (Full HD)
Compatible panel sizes	11.6' to 17.3' laptop panels
Power input	12Vdc, recommended >=2A
Audio	PC-Audio In, Speaker Out, Earphone
Board dimensions	107mm x 55mm x 16mm

Our Verdict

The VSDISPLAY VGA LCD controller board is a practical, cost-effective option for anyone converting or repairing 30pin eDP 1920x1080 laptop panels. It delivers broad compatibility, built-in audio and easy OSD controls, making it an excellent choice for DIY monitors and screen replacements when you supply a proper 12Vdc 2A+ adapter. For users who need touch support or a bundled power supply, another product may be a better fit.

Frequently Asked Questions

Does the package include a power adapter?
No. The packing list does not include a power adapter; a 12Vdc adapter rated at 2A or higher is recommended.

Which panel connectors are supported?
This controller is designed for 30pin eDP WLED laptop panels, including many N116, N133, B140, B156 and N173 series parts.

Are cables included for common panels?
Yes. The package includes two signal cables (E000202 and E000203) and a keyboard cable to connect most supported screens.
