W680 Micro ATX NAS Motherboard LGA1700 DDR5 ECC - High-Capacity NAS

In this review the W680 Micro ATX NAS Motherboard is evaluated as a practical foundation for small server or workstation projects. It is aimed at builders who need a compact board that prioritizes storage capacity and network throughput: the standout reason to buy is the combination of 12 SATA ports via SFF-8643 and onboard 10GbE plus dual 2.5GbE, which together make it unusually well suited for dense NAS arrays or remote-managed workstations. The board also supports 12th through 14th Gen LGA1700 CPUs and DDR5 ECC memory, which keeps the focus on reliability and long-term use.

Key Features

• Server-grade chipset: The W680 chipset delivers platform stability and is tuned for continuous NAS or workstation operation in commercial environments.
• High-capacity ECC memory: Four U-DIMM slots support DDR5 ECC up to DDR5 5600 (OC) and allow up to 128GB when populated with 4x32GB modules for reliable data integrity.
• Massive SATA expansion: Three SFF-8643 ports let you connect up to 12 SATA drives, making this board ideal for multi-bay storage arrays without external HBAs.
• Triple high-speed LAN: Integrated 1x 10GbE and 2x 2.5GbE ports provide flexible options for fast local transfers, link aggregation, or separating management and storage traffic.
• Multiple NVMe and PCIe options: Three M.2 slots (two PCIe 4.0 x4 and one PCIe 3.0 x4) plus dual PCIe x16 slots enable high-speed cache, boot drives, and add-in cards such as RAID controllers or GPUs.
• Versatile multi-display outputs: Dual HDMI 2.0, dual DisplayPort 1.4a and a USB-C with DP Alt Mode support multi-monitor setups for workstation use and headless management.

Who It's For

The W680 Micro ATX suits IT pros, small business owners, and home lab builders who need a compact motherboard with exceptional storage density and robust networking. It is especially appropriate for NAS builders who want many internal drives without relying on external expanders and for workstation users who need ECC memory support and remote-management capable NICs.

Those who should look elsewhere include gamers or users seeking maximal overclocking and consumer gaming features, and ultra-compact mini-ITX builders who cannot accommodate the 244x244mm M-ATX footprint and multiple drive connections.

Pros & Cons

Pros

• Excellent internal storage capacity via 3x SFF-8643 ports for up to 12 SATA drives.
• Fast networking with 10GbE plus two 2.5GbE ports that support remote management functions.
• Support for ECC DDR5 up to 128GB provides reliability for server and workstation use.
• Multiple M.2 slots and flexible PCIe 5.0/x16 configuration for caching, NVMe storage, and add-in cards.

Cons

• Standard onboard audio and consumer I/O are basic, so dedicated audio or specialized ports may be needed for multimedia tasks.
• The M-ATX size and high drive count demand a roomy case and compatible backplanes, limiting ultra-compact builds.

Specifications

Our Verdict

The W680 Micro ATX NAS Motherboard is a strong option for builders who prioritize storage density, network performance, and ECC memory reliability in a relatively compact package. It offers rare combination of 12 internal SATA connections and multi-gigabit networking that delivers value for small servers and workstations, provided you have the case and cooling to match its capabilities.

Frequently Asked Questions

Does this board support ECC memory?
Yes, it supports DDR5 ECC memory in the four U-DIMM slots for enhanced data integrity.

How many SATA drives can be attached internally?

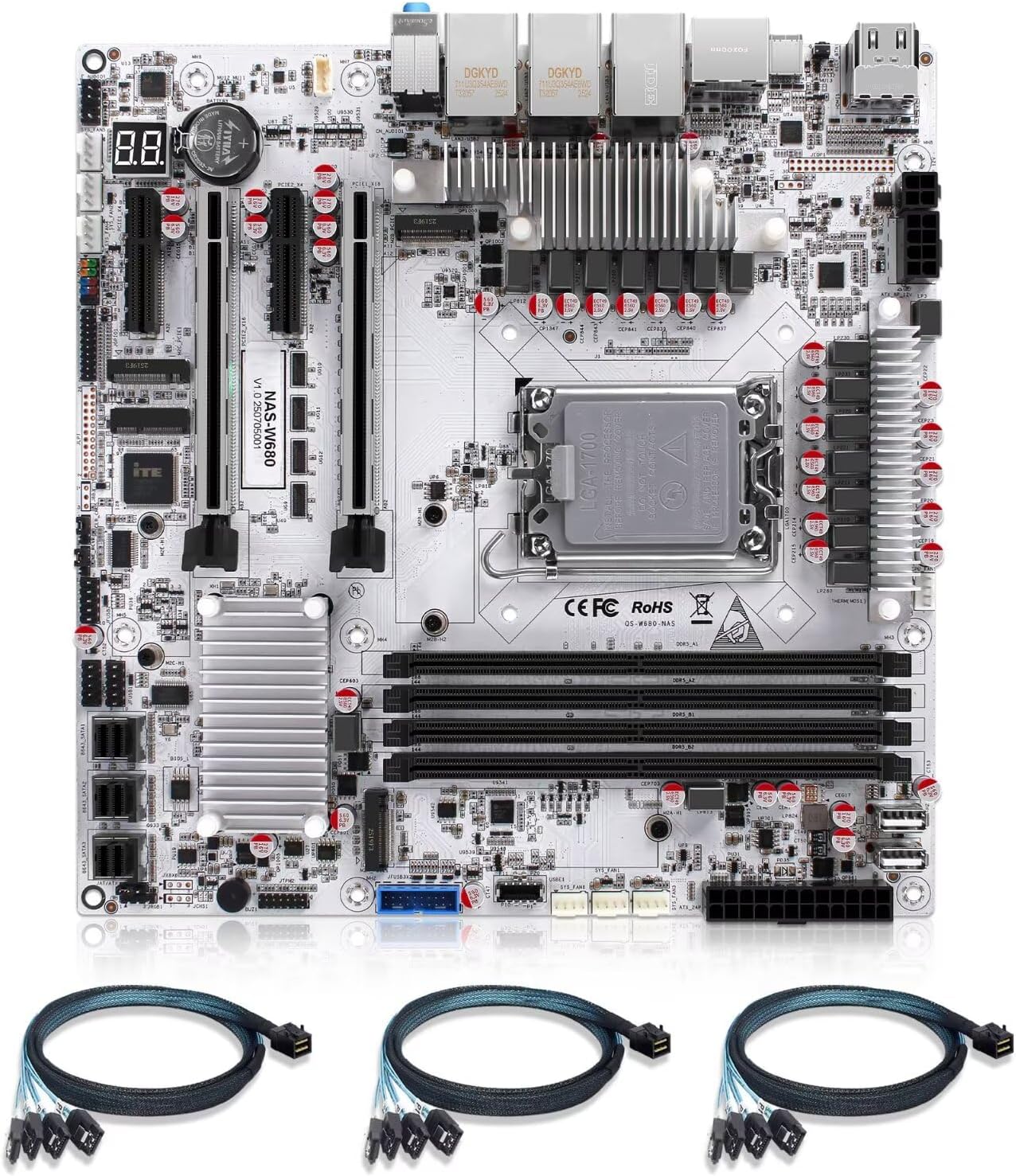

The board supports up to 12 SATA drives through three SFF-8643 ports and ships with 3 SFF-8643 cables.

Which CPUs are supported?
It supports Intel 12th, 13th, and 14th Gen processors in the LGA1700 socket.
