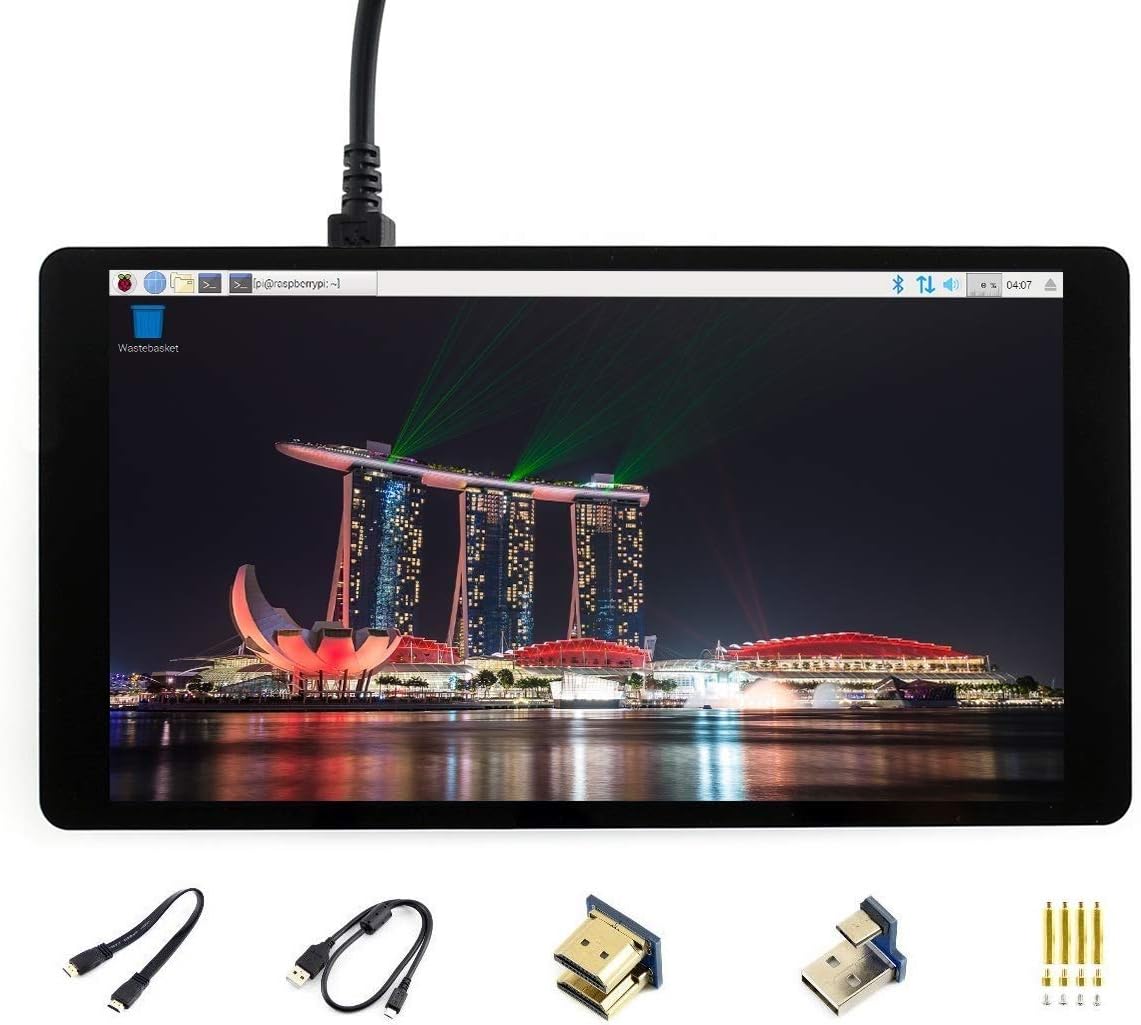

waveshare 5.5in HDMI AMOLED Display 1920x1080 - Compact Touch Monitor

In this review of the waveshare 5.5in HDMI AMOLED display, the bottom line is straightforward: this compact, high-contrast monitor is best for makers and developers who need a crisp, driver-free touch display for Raspberry Pi, Jetson Nano or a PC. The 1920x1080 AMOLED panel delivers vivid colors and wide viewing angles in a small footprint, and the built-in capacitive touch with toughened glass makes it usable as a primary interface for small projects. For anyone wanting a portable, high-quality small monitor, it stands out for image quality and easy setup.

Key Features

• AMOLED 1080p: The 5.5in AMOLED panel provides high contrast and a wide color gamut for vivid, detailed images despite the small size.
• Capacitive touch: The toughened glass capacitive touch panel supports five-point touch for interactive applications and smooth touch response.
• Driver free: When paired with Raspberry Pi or supported desktop systems, the display works without additional drivers, simplifying setup.
• Broad compatibility: Supports Raspberry Pi, Jetson Nano and common Windows PCs, making it useful for single-board computer projects and mini PC setups.
• Audio and mounting: The HDMI audio output and 3.5mm jack plus M2.5 screw holes make it easy to integrate into compact builds or mount in enclosures.
• Toughened glass: A 6H hardness cover protects the screen from everyday scratches while keeping touch sensitivity intact.

Who It's For

This display is ideal for hobbyists, makers and developers who need a high-quality small touchscreen for control panels, handheld prototypes, or portable retro gaming builds using Raspberry Pi or Jetson Nano. Its 1080p AMOLED makes it appealing to anyone who values color accuracy and contrast in a compact form factor.

It is less suited for users who need large desktop monitors or for those who require integrated OS-specific drivers for advanced touch gestures beyond standard five-point input. If you need large-screen productivity or certified enterprise drivers, a larger monitor would be more appropriate.

Pros & Cons

Pros

• Excellent contrast and color from the AMOLED panel gives noticeably richer images than typical small LCDs.
• Driver-free operation with Raspberry Pi and many Windows versions simplifies setup for makers.
• Capacitive five-point touch and toughened glass combine durability with responsive input for projects.
• Compact size with audio output and mounting holes makes the display versatile for enclosures and portable devices.

Cons

• The 5.5in size is too small for standard desktop work, limiting it mainly to niche and embedded uses.
• Orientation defaults to portrait and requires software config to use in landscape, which adds a minor setup step.

Specifications

Display size	5.5in
Resolution	1920x1080 (1080x1920 orientation default)
Panel type	AMOLED
Touch	Capacitive toughened glass, five-point, 6H hardness
Interfaces	HDMI, 3.5mm audio jack
Compatibility	Raspberry Pi, Jetson Nano, Windows 10/8.1/8/7; Raspbian/Ubuntu/Kali/Retropie
Mounting	M2.5 screw holes

Our Verdict

The waveshare 5.5in HDMI AMOLED display is a smart choice for makers and developers who need a compact, high-fidelity touchscreen that works out of the box with Raspberry Pi and common PC systems. Its AMOLED image quality, five-point capacitive touch and toughened glass make it good value for embedded projects, portable interfaces, and small control panels where color and contrast matter.

Frequently Asked Questions

Does this display require drivers?
The display is driver free for Raspberry Pi distributions listed and for common Windows versions, so basic display and touch work without extra drivers.

Can it be mounted in a case or enclosure?
Yes, the display includes M2.5 screw holes for straightforward mounting into custom enclosures or panels.

Is the orientation fixed?
Orientation defaults to portrait (1080x1920); you can change to landscape via software configuration on the host device.
