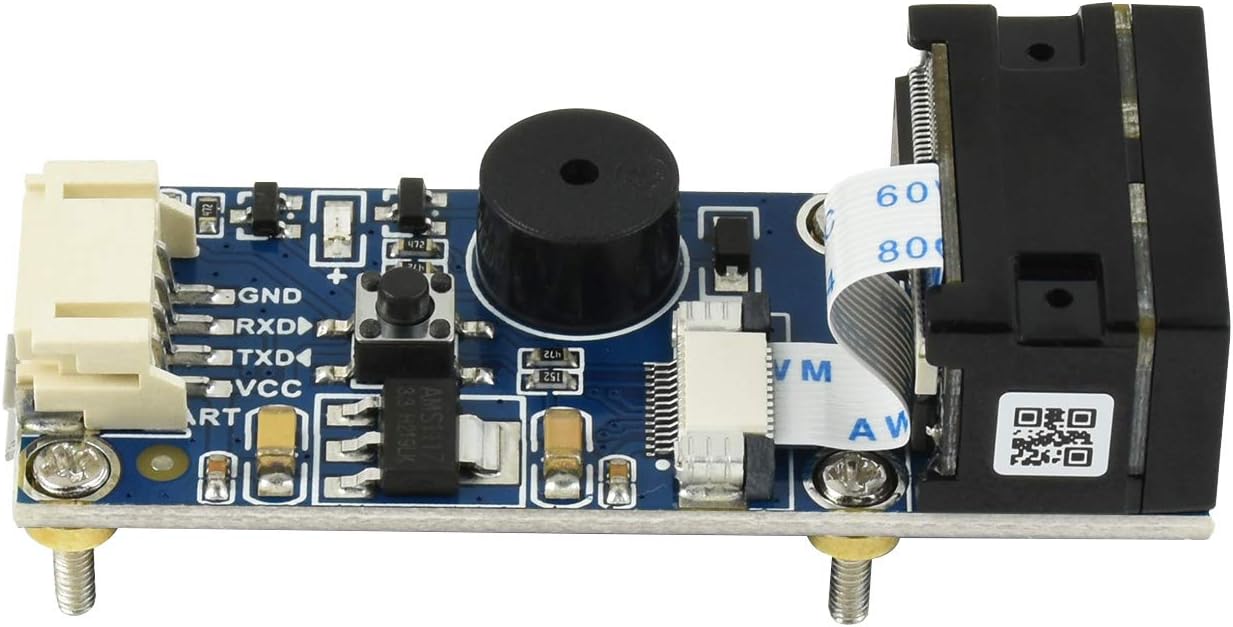

Waveshare Barcode Scanner Module 1D/2D Codes Reader - Compact USB/UART

In this review of the Waveshare Barcode Scanner Module, the reviewer finds a compact, no-frills reader aimed at makers, embedded developers, and small business users who need reliable code scanning from both paper and screens. The single biggest reason to buy is its flexible connectivity: the module supports both micro USB and UART serial interfaces, which makes it easy to integrate with a PC or an embedded board without extra adapters. The unit is practical, quick to decode common 1D and 2D formats, and includes an onboard light so it works in low-light conditions.

Key Features

• 1D/2D decoding: The module uses an intelligent image recognition algorithm to decode common barcode and QR code formats accurately from paper or a screen.
• Dual interfaces: Onboard micro USB and UART serial port let users connect directly to computers or embedded devices for flexible integration.
• Configurable operation: The scanner can be adjusted by scanning configuration codes, which lets you change behavior without software.
• Built-in illumination: An onboard light source enables scanning in dim environments or on poorly illuminated labels.
• Compact module: The small form factor makes it easy to embed into custom enclosures or development projects without occupying much space.

Who It's For

The Waveshare module is aimed at hobbyists, developers, and small businesses who need a simple, embeddable scanner that can be wired to a microcontroller or PC. Its UART and USB options make it especially useful for IoT projects, point-of-sale prototypes, and custom hardware where a small, integrated reader is needed.

It is less suited to users who want a finished handheld scanner with a battery and industrial casing or those who require enterprise management features. For desktop retail environments that need rugged housings, a purpose-built scanner with a stand and extended warranty would be a better fit.

Pros & Cons

Pros

• Reliable decoding of both barcode and QR code formats on paper and screen.
• Flexible connectivity with both micro USB and UART for direct connection to many hosts.
• Onboard light source allows scanning in low-light conditions without external illumination.
• Configuration via scan codes simplifies setup without a PC utility.

Cons

• As a bare module it lacks a finished handheld housing or mounting accessories out of the box.
• Limited to the features described; advanced enterprise features such as centralized management are not provided.

Specifications

Product	1D/2D codes reader module
Interfaces	Micro USB and UART serial port
Decoding	Common 1D and 2D codes (barcode, QR code, etc.)
Configuration	Configurable via scanning configuration code
Illumination	Onboard light source for dark environments
Form factor	Small module for embedded or desktop use

Our Verdict

The Waveshare Barcode Scanner Module is a practical, affordable option for developers and small operations that need reliable 1D and 2D scanning with easy integration. It is good value when you want a compact module with USB and UART connectivity and onboard lighting, though you will need to provide mounting or a housing for production use.

Frequently Asked Questions

Can it connect to a PC?
Yes, the module provides a micro USB interface for direct connection to a computer.

Does it read QR codes on screens?
Yes, the intelligent image recognition algorithm decodes QR codes shown on screens as well as printed barcodes.

Is it configurable without software?
Yes, the module is configurable by scanning supplied configuration codes, so no additional software is required for basic settings.
