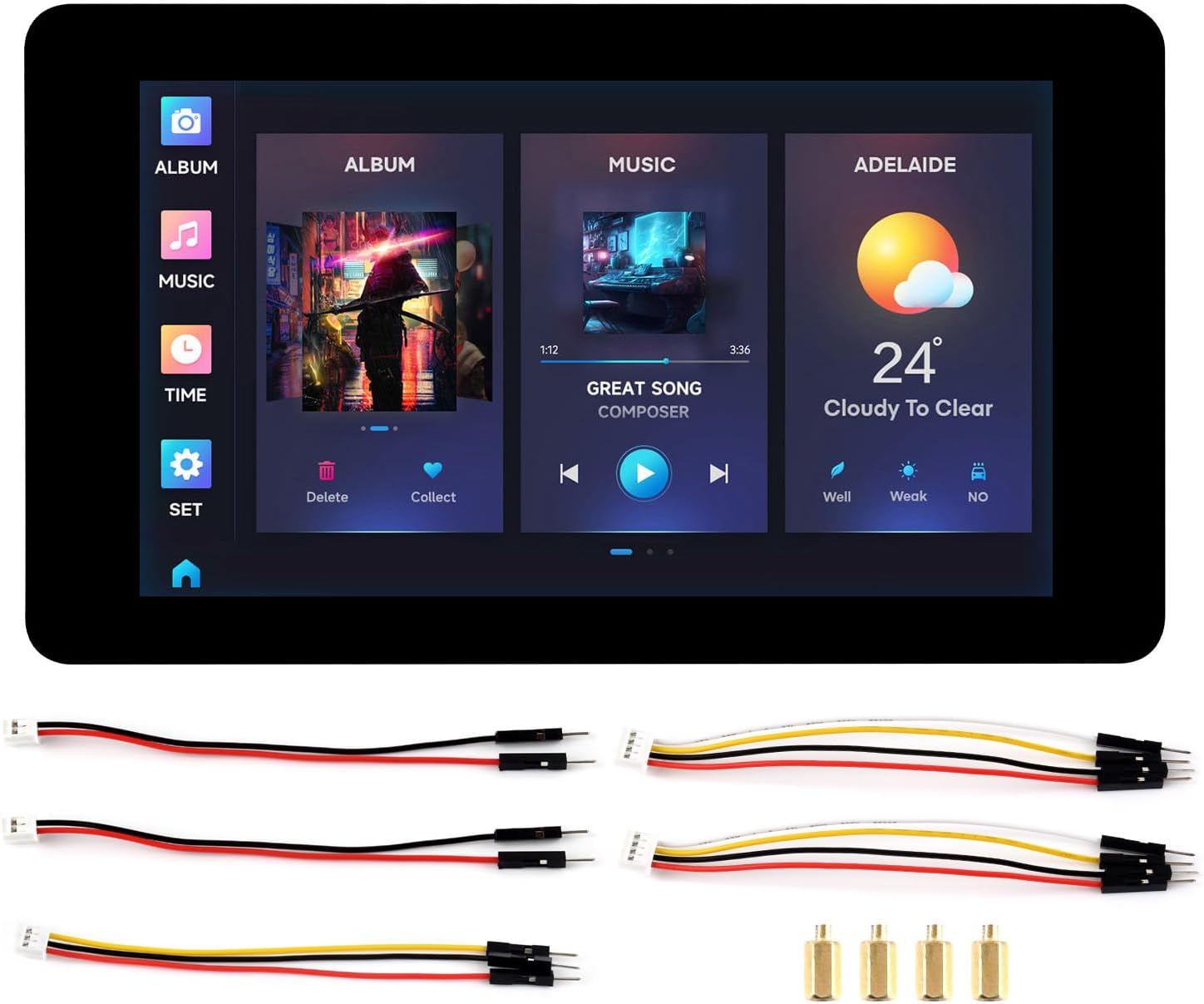

Waveshare ESP32-S3 7in Capacitive Touch LCD Development Board - HMI

In this review of the Waveshare ESP32-S3 7in capacitive touch LCD development board, the bottom line is simple: this is a compact, ready-to-use platform for developers and hobbyists focused on HMI and embedded GUI projects. The board combines a capable Xtensa 32-bit LX7 dual-core processor running up to 240MHz with an onboard 7in 800x480 capacitive touch panel, so the single biggest reason to buy is the integration of a responsive display and a full ESP32-S3 application core on one development module.

Key Features

• Dual-core Processor: The Xtensa 32-bit LX7 dual-core processor at up to 240MHz delivers smooth UI logic and sufficient headroom for networked embedded applications.
• Integrated Wireless: Built-in 2.4GHz Wi-Fi and Bluetooth 5 (LE) with an onboard antenna simplifies wireless setup for connected interfaces and remote control.
• Large Capacitive Display: The onboard 7in capacitive touch display with 800x480 resolution and 65K color provides a roomy canvas for human machine interface prototypes and demos.
• Five-Point Touch: The I2C-driven 5-point capacitive touch with interrupt support enables multi-touch gestures and responsive UI interactions.
• Memory and Storage: Onboard 8MB PSRAM and 8MB flash plus built-in SRAM and ROM give the board enough runtime memory for moderately complex firmware and graphics buffers.
• Flexible Power and Peripherals: Independent module power supply settings and a variety of peripheral interfaces help tune power consumption and connect sensors or actuators.

Who It's For

This board is aimed at firmware developers, HMI designers, and advanced makers who want an integrated display solution based on the ESP32-S3 family. It is especially useful for rapid prototyping of touch-driven interfaces, networked controllers, and demos where having the display and MCU on a single board saves development time.

Those who should look elsewhere include beginners who expect extensive, polished documentation out of the box, and projects that require very large external storage or unusually high-resolution graphics beyond 800x480. If you need a plug-and-play consumer product or lengthy step-by-step tutorials, this board assumes some prior embedded experience.

Pros & Cons

Pros

• Well integrated display and ESP32-S3 CPU make HMI prototyping straightforward.
• Onboard Wi-Fi and Bluetooth 5 with antenna reduce external module needs for connectivity.
• Generous onboard RAM and flash help support UI buffers and application code.
• Configurable power and multiple peripheral interfaces allow flexible low-power designs.

Cons

• Documentation quality has mixed feedback, so some platform learning and experimentation may be required.
• The 800x480 resolution and 65K color are solid for many projects but not suited to high-end graphics tasks.

Specifications

Processor	Xtensa 32-bit LX7 dual-core, up to 240MHz
Display	7in capacitive touch, 800x480, 65K color
Touch	5-point capacitive via I2C with interrupt support
Wireless	2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna
Memory	512KB SRAM built-in, 8MB PSRAM onboard
Storage	384KB ROM built-in, 8MB flash onboard
Power & Control	Flexible clock and independent module power supply settings for low power scenarios

Our Verdict

The Waveshare ESP32-S3 7in capacitive touch board is a pragmatic choice for developers building touch GUIs and networked embedded systems; it packs a capable dual-core MCU, a sizeable capacitive display, and onboard wireless into one development-ready module. While documentation may require some self-guided work, the hardware combination and flexible power options make it strong value for HMI prototypes and small production runs.

Frequently Asked Questions

Does the display support multi-touch?
Yes, the onboard capacitive touch panel supports 5-point touch via I2C and provides interrupt support for responsive input.

Is Wi-Fi and Bluetooth included onboard?
Yes, the module includes 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with an onboard antenna.

Will this board suit a beginner?
The board is usable by beginners with embedded interest, but mixed documentation quality means some familiarity with ESP32 development will speed progress.
