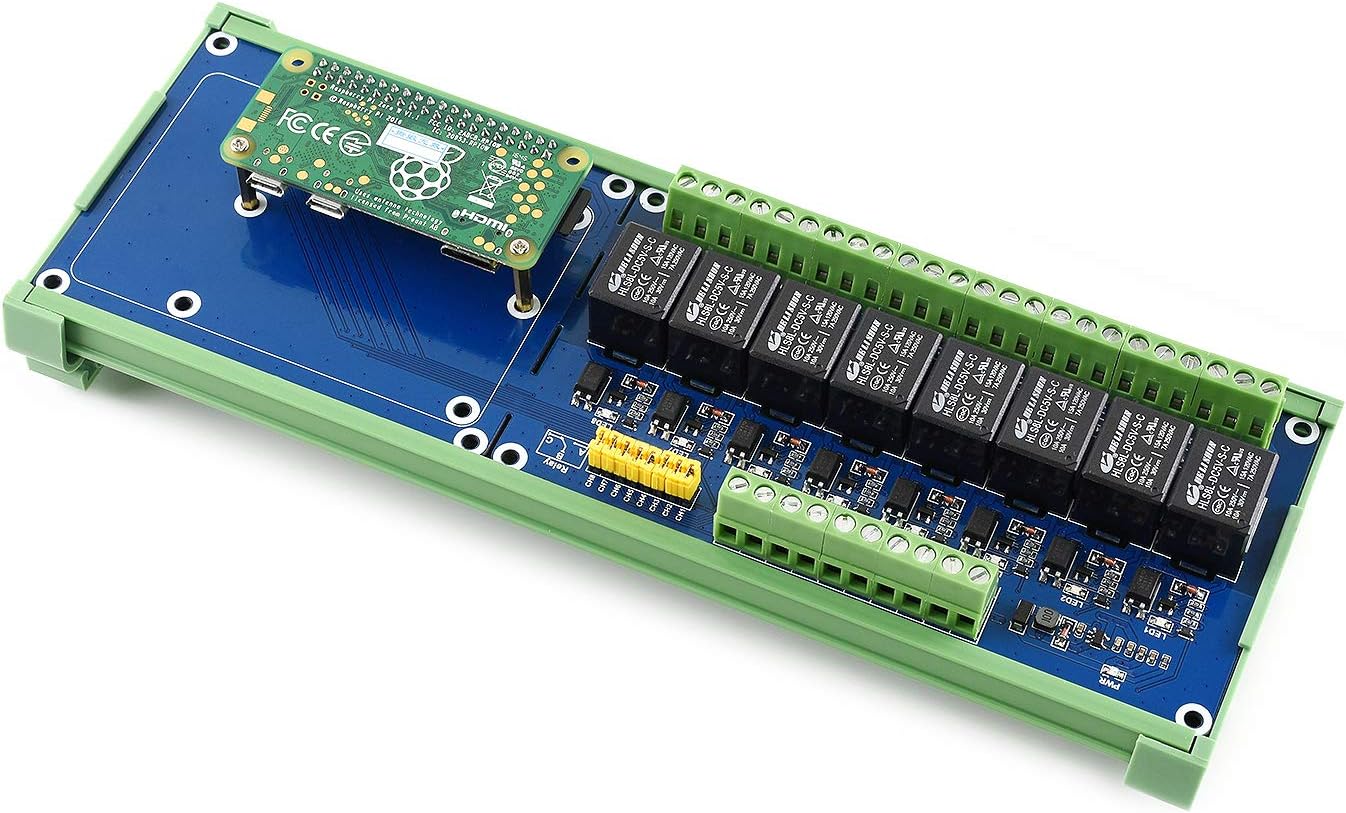

Waveshare Expansion Board 8 Channel Relay Expansion Board - Raspberry

In this review the Waveshare Expansion Board 8 Channel Relay proves itself as a practical I/O extender for makers and integrators who need to control household or lab-level AC/DC loads from a single-board computer. The board's strongest selling point is reliable relay switching with photo coupling isolation and onboard LEDs, which together make it straightforward to switch devices up to 5A safely while keeping the host controller protected. It is a work-focused, no-frills module aimed at hobbyists and developers rather than casual plug-and-play consumers.

Key Features

• Standard GPIO header: The 40PIN Raspberry Pi extension header makes mounting and wiring to Raspberry Pi and Jetson Nano straightforward without extra adapters.
• High quality relays: Each relay supports up to 5A at 250V AC or 5A at 30V DC, allowing control of typical home appliances and medium-power DC loads.
• Photo coupling isolation: Optocouplers separate the high-voltage relay side from the logic side to reduce interference and protect the controller.
• Flexible control pins: A relay control pin selection jumper lets users remap control lines to custom GPIO pins for projects that need nonstandard pin assignments.
• Indicator LEDs: Onboard LEDs give a visible status for each relay, which speeds debugging during development and installation.
• Development resources: Included code examples for wiringPi, bcm2835, python and web control help get projects running quickly.

Who It's For

The board is well suited to hobbyist electronics builders, home automation tinkerers, and small lab setups who already use Raspberry Pi or Jetson Nano and need a reliable way to switch mains or mid-voltage DC loads. The photo coupling isolation and LED status make it especially useful where safety and clear diagnostics are important.

It is less appropriate for users who want a fully enclosed, UL-certified consumer product or those who need very high current switching beyond the relays rated 5A. Beginners should be comfortable with wiring mains circuits or seek advice before switching high-voltage appliances.

Pros & Cons

Pros

• High quality relays handle common household AC and DC loads up to 5A safely.
• Photo coupling isolation reduces risk to the host controller from high-voltage noise.
• Pin selection jumper and reserved control interface offer flexible integration with PLCs or custom controllers.
• Onboard LEDs and rail-mount case simplify installation and troubleshooting.

Cons

• The board is a bare control module and requires user knowledge for safe mains wiring and enclosure decisions.
• Not intended for switching currents above the 5A relay rating, which limits high-power applications.

Specifications

Brand	waveshare
Compatibility	Raspberry Pi series, Jetson Nano
Relay rating	5A 250V AC or 5A 30V DC
Interface	Standard Raspberry Pi 40PIN GPIO extension header
Isolation	Photo coupling (optocouplers)
Indicators	Onboard LEDs for each relay
Extras	Pin selection jumper, reserved control interface, development examples

Our Verdict

The Waveshare 8 Channel Relay Expansion Board is a practical and economical choice for makers and developers who need dependable relay control from a Raspberry Pi or Jetson Nano. With optocoupler isolation, LED feedback, and flexible pin mapping it offers good value for automation projects that switch typical home or lab loads, provided users respect the 5A relay limit and handle mains wiring safely.

Frequently Asked Questions

Can this board control mains appliances?
Yes, the relays are rated for up to 5A at 250V AC so it can switch typical household appliances within that current limit; safe mains wiring practices are required.

Will it work with a Jetson Nano?
Yes, the board uses a standard 40PIN GPIO extension header and is compatible with Jetson Nano as well as Raspberry Pi models.

Are software examples provided?
Yes, the product includes development resources and examples for wiringPi, bcm2835, python, python-bottle for web control, and crontab integration.
